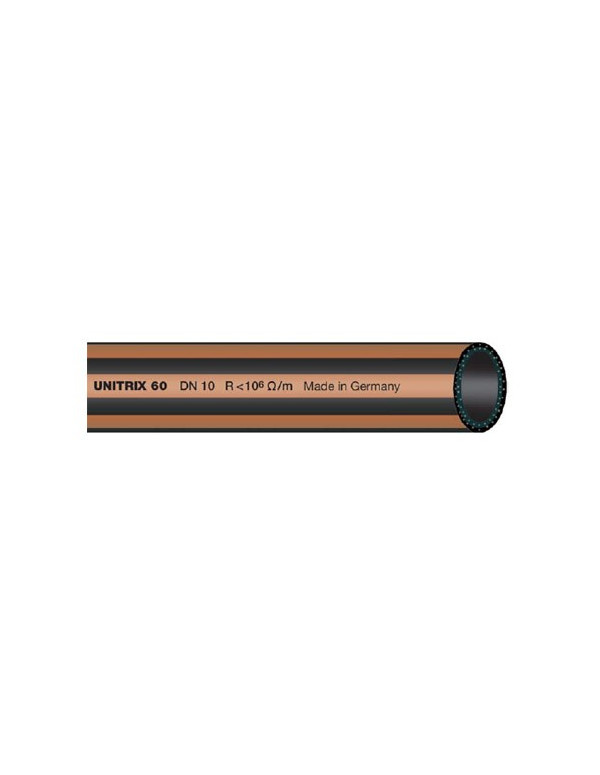

UNITRIX 60 D19 NBR multi-purpose hose (cut to length)

136046

Suitable for the agricultural sector, chemical, railway, maritime and petrochemical industries, construction, machinery and installations... Withstands temperatures up to 85°C, working pressure 20 bar. up to 50 m in a single length.

Description

Applications:
- Agricultural sector, Chemical and petrochemical industry,
- Construction industry, Forestry, Machinery and plant engineering,
- Petroleum industry, Quarrying, Railway industry, Marine industry,
- Automotive workshops, heavy goods vehicles.
- For use with pumps and compressors.

Uses:
- Transfer of petrol, diesel, kerosene.
- Lubricating oil, vegetable oil, animal fat.
- Saline solution, hot water up to 85°C, (with and without detergent additives).
- Technical alcohols, propane, butane.
- Compressed air, oily air.

Specifications:
- Smooth non-porous NBR inner tube.
- Reinforcement: high-strength textile braids.
- Cover: NBR, resistant to oils and chemicals.

Inner Ø
(mm)
 Outside Ø
(mm)		 Ref PS
(bar)		 PLNE
(bar)		 Tmax Weight
(Kg)
19 26 136046 22 80 +85°C 0.48
