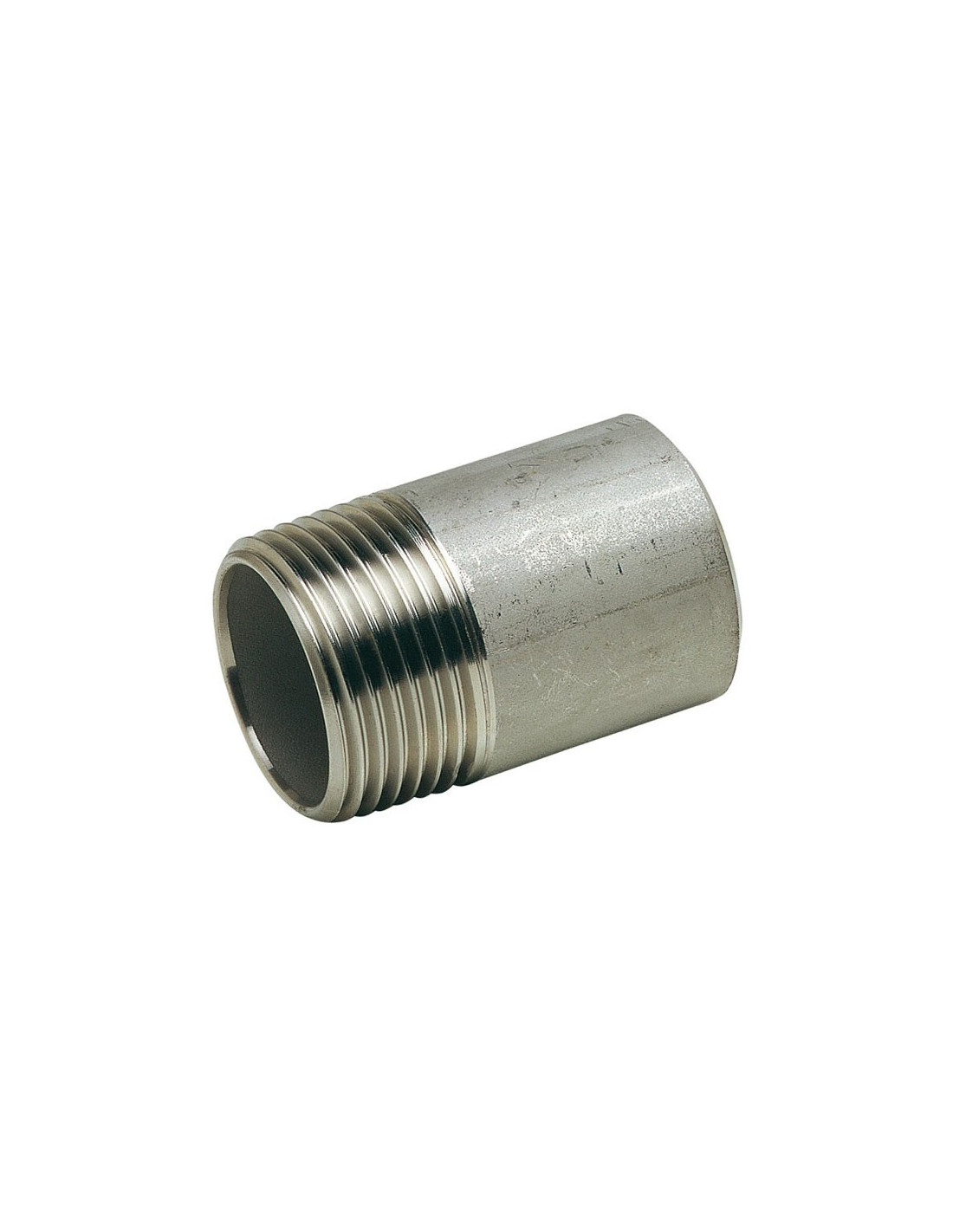

Embout male à souder et visser inox 316L - Lg 100 mm

316L stainless steel male weld and screw end - L 100 mm

151498
Delivery 2 to 3 days
$4.28

$4.28 tax excl.

Male weld and screw end, 316L stainless steel construction, PN 20 bar, available from 1/4" to 4", length 100 mm, see table below.

Diameter

Attributs
Image Ref. Diameter Unit price Avail. Buy
316L stainless steel male weld and screw end - L 100 mm
151498 1/4"
$4.28
Available
316L stainless steel male weld and screw end - L 100 mm
151500 1/2"
$6.42
Available
316L stainless steel male weld and screw end - L 100 mm
151502 1"
$12.38
Available
316L stainless steel male weld and screw end - L 100 mm
151503 1" 1/4
$13.97
Available
316L stainless steel male weld and screw end - L 100 mm
151504 1" 1/2
$12.57
Available
316L stainless steel male weld and screw end - L 100 mm
151505 2"
$20.20
Available
316L stainless steel male weld and screw end - L 100 mm
151499 3/8"
$5.12
Available
316L stainless steel male weld and screw end - L 100 mm
151501 3/4"
$8.85
Available
Total: 0,0
All prices with tax included.
Available Product is available
Out of stock Product is no longer in stock
Can be back-ordered Product is no in stock, but is allowed to be back-ordered
Description

Use:
- Compatible with common fluids.
- Service temperature: - 25 °C to + 180 °C.

Construction:
- 316L stainless steel.

Connection:
- Tapered thread to ISO 7/1 (BSP).

Model Length
(mm)		 Reference Connection Pressure
(bar)
1/4" - DN8
 100 151498

weld-on /
threaded

 20 bar
3/8" - DN10
 151499
1/2" - DN15
 151500
3/4" - DN20
 151501
1" - DN25
 151502
1" 1/4 - DN32
 151503
1" 1/2 - DN40
 151504
2" - DN50
 151505
