Compteur divisonnaire eau chaude

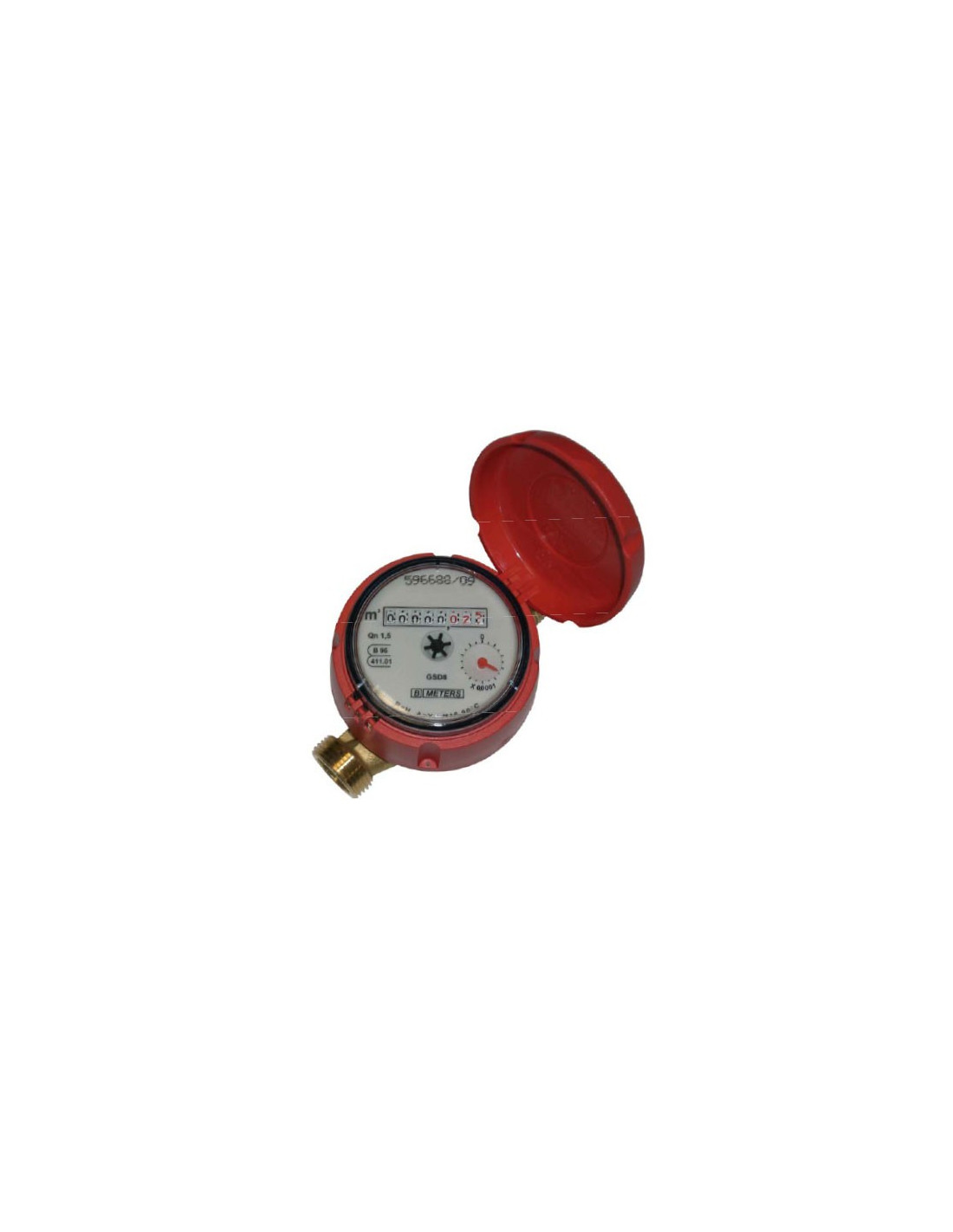

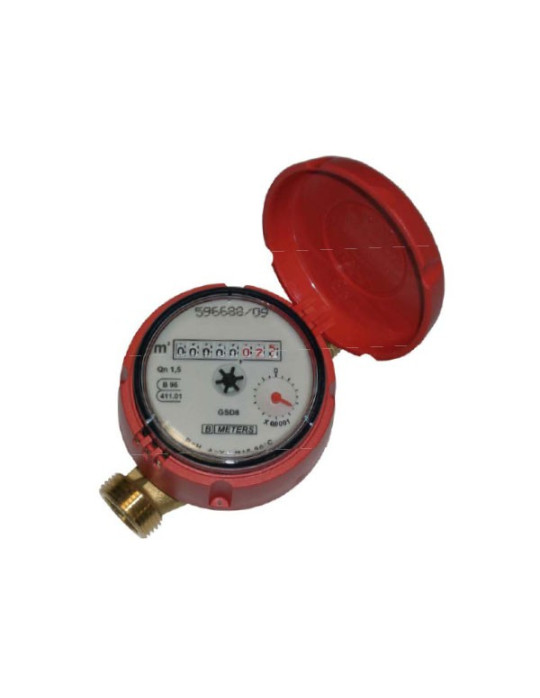

Single-jet sub-meter - Hot water

110167
Delivery 2 to 4 days
$61.45

$61.45 tax excl.

DN15 and DN20 sub-meter, for hot water (TS: 30 °C to + 90 °C max). Single-jet turbine, magnetic drive, horizontal or vertical position, pressure 16 bar max, dial rotatable through 360°. ACS.

Model

Attributs
Image Ref. Model Unit price Avail. Buy
Single-jet sub-meter - Hot water
110167 Calibre 15
$61.45
Available
Single-jet sub-meter - Hot water
110168 Calibre 20
$72.47
Available
Total: 0,0
All prices with tax included.
Available Product is available
Out of stock Product is no longer in stock
Can be back-ordered Product is no in stock, but is allowed to be back-ordered
Description

Single-jet turbine sub-meter, magnetic drive, dial rotatable through 360°.

- Horizontal position: class B.
- Vertical position: class A.
- Hot water (TS: 30 °C to + 90 °C max.).
- CEE 75/33 ISO 4064.
- ACS N° 05 ACC LY 162

Model Ref Size Connection
Male		 Spacing
(mm)		 Flow rate
max
(m3/h)		 Flow rate
nominal
(m3/h)		 Pressure
max
(bar)
DN 15
 110167 15 3/4" 110 3 1.5 16
DN 20 110168 20 1" 130 5 2.5 16
