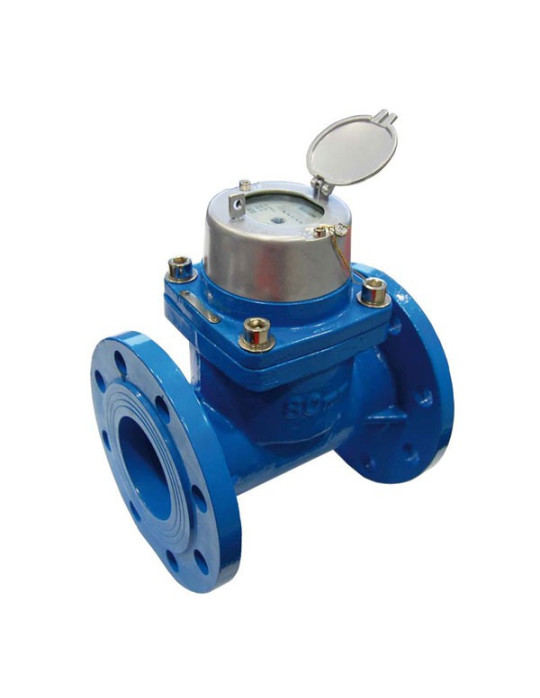

Compteur à brides pour irrigation

Irrigation meter with tangential propeller - Cold water

110171
Delivery 3 to 5 days
$488.82

$488.82 tax excl.

Flanged meter GN 10/16 (GN 16 in DN 200), for irrigation, tangential propeller, dry dial, available in sizes 50 to 200.

Model

Attributs
Image Ref. Model Unit price Avail. Buy
Irrigation meter with tangential propeller - Cold water
110171 Calibre 50
$488.82
Available
Irrigation meter with tangential propeller - Cold water
110172 Calibre 65
$561.44
Available
Irrigation meter with tangential propeller - Cold water
110173 Calibre 80
$634.06
Available
Irrigation meter with tangential propeller - Cold water
110174 Calibre 100
$662.93
Available
Irrigation meter with tangential propeller - Cold water
110175 Calibre 125
$762.55
Available
Irrigation meter with tangential propeller - Cold water
110176 Calibre 150
$864.97
Available
Irrigation meter with tangential propeller - Cold water
110177 Calibre 200
$1,054.91
Available
Total: 0,0
All prices with tax included.
Available Product is available
Out of stock Product is no longer in stock
Can be back-ordered Product is no in stock, but is allowed to be back-ordered
Description

Specifications:
- Tangential propeller with removable drum
- Pre-fitted for a pulse transmitter
- Class A in horizontal installation (observe the direction of flow shown by an arrow on the body)
- Low head losses
- Dry dial
- Magnetic drive
- Direct roller reading
- Protective cover
- Cast iron body

Size506580100125150200
Reference 110171 110172 110173 110174 110175 110176 110177
Face-to-face (mm) 200 200 225 250 250 300 350
Nominal flow rate (m3/h) 35 50 75 125 175 250 450
Max. flow rate (m3/h) 70 100 150 250 350 500 900
Min. flow rate (m3/h) 2.8 4 6 10 14 20 36
Max pressure (bar) 16
Min. reading (m3) 0.005
Max. reading (m3) 9999999
Flange DN 50 65 80 100 125 150 200
Flange dimension (mm) 165 185 200 220 250 285 340
Number of holes 4 8 12
Ø holes (mm) 18 22
L (mm) 200 200 225 250 250 300 350
h (mm) 80 92.5 100 110 125 142.5 170
H (mm) 150 150 150 150 150 152 195
Weight (Kg) 11.5 13 15 19 24 30 48

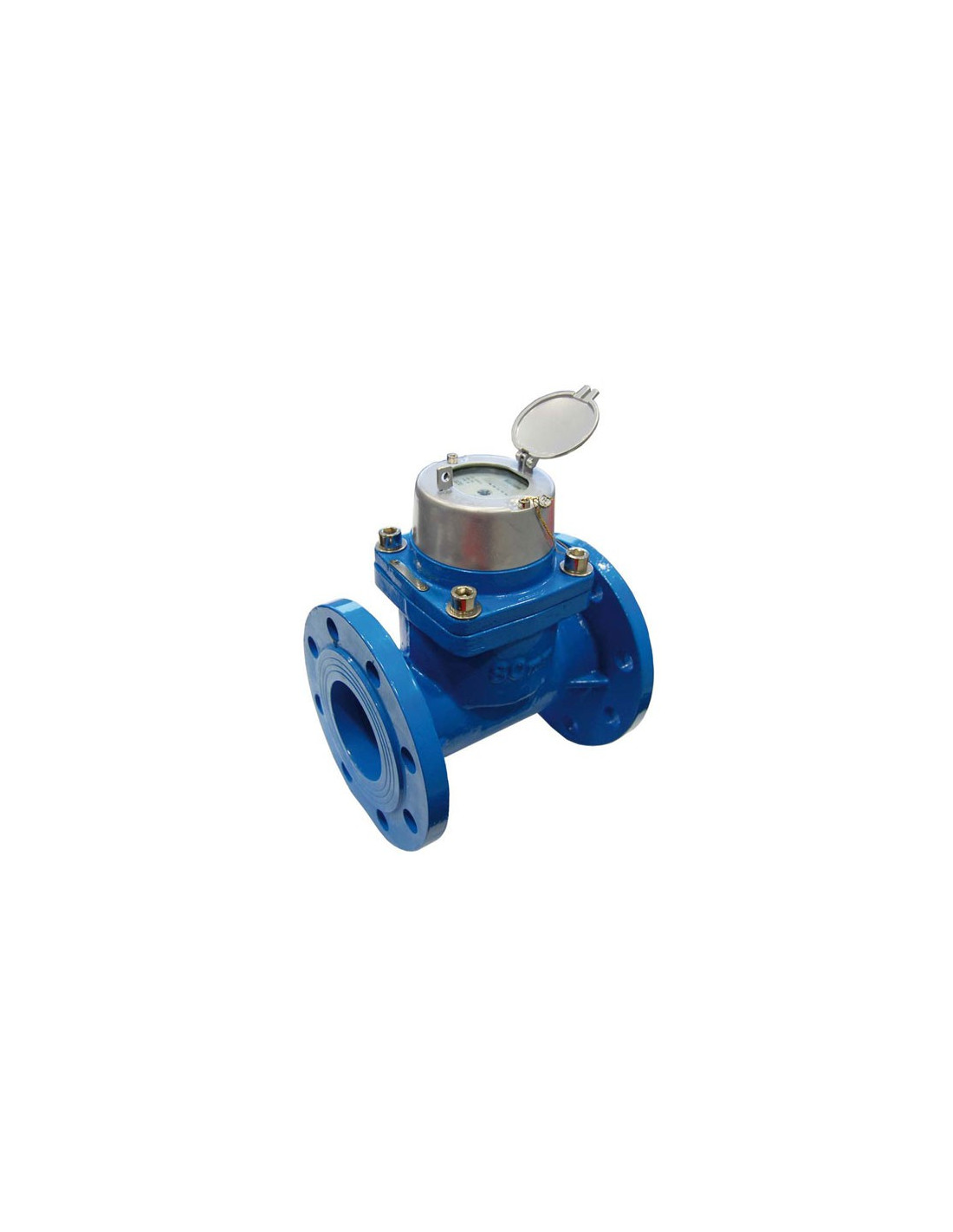

Irrigation meter with tangential propeller - Cold water

Standards:
- Manufactured to ISO 9001 -2000 ICIM and IQNET standard
- Flanges to EN 1092-1 PN16 standard
- DIRECTIVE 97/23/EC: Products excluded from the directive (article 1, § 3.2)
