Tuyau flexible Caoutchouc Guillemin DN50 PS 10 bars

SYM50 rubber hose for suction and discharge PS 10 bar

112299
Delivery 2 to 4 days
£120.70

£120.70 tax excl.

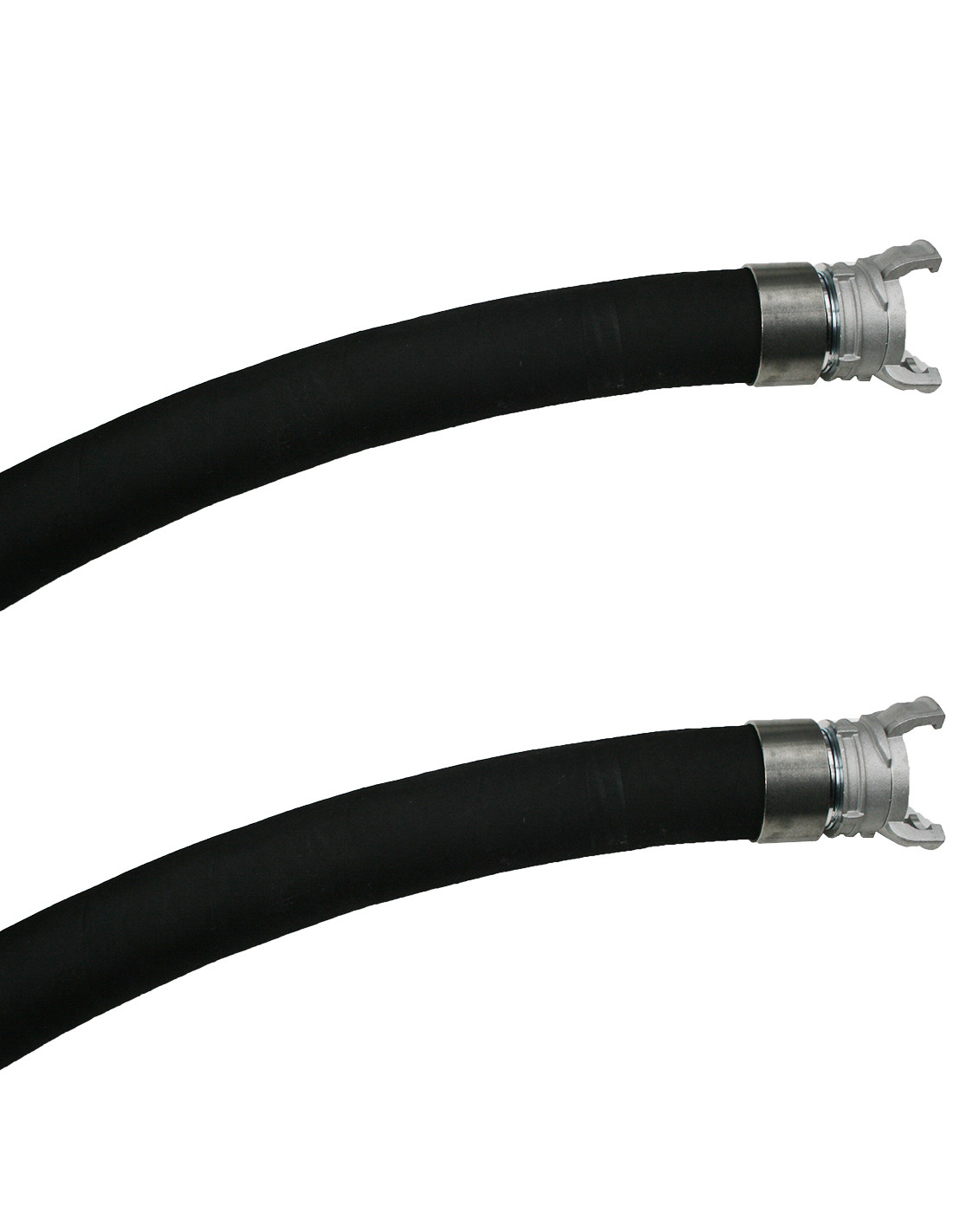

EPDM rubber suction and delivery hose with steel helix, DN50 PS 10 bar, Guillemin couplings in aluminium or 316 stainless steel, DN50, 51 mm serration, suction and delivery of water in general, sea water, non-corrosive liquid, loaded water.

Length

Attributs
Image Ref. Length Unit price Avail. Buy
SYM50 rubber hose for suction and discharge PS 10 bar
112299 2 m
£120.70
Available
SYM50 rubber hose for suction and discharge PS 10 bar
112300 3 m
£138.84
Available
SYM50 rubber hose for suction and discharge PS 10 bar
112301 4 m
£156.98
Available
SYM50 rubber hose for suction and discharge PS 10 bar
112302 10 m
£265.82
Available
Total: 0,0
All prices with tax included.
Available Product is available
Out of stock Product is no longer in stock
Can be back-ordered Product is no in stock, but is allowed to be back-ordered
Description

Specifications :
- Used for suction and discharge of water, fire hydrants, loaded liquids, sea water, in civil engineering, industry, agriculture, mines and various industrial applications, hot water up to 100°C with 316 stainless steel fittings.
- Inner tube: smooth black EPDM.
- Reinforcement: steel spiral + textile plies.
- Cover: black EPDM with cloth impression.
- Marking: EPDM WATER S/D PN 10 BAR.
- Liquid temperature: -20° +60°C with ALUMINIUM fittings.
- Liquid temperature: -20° +100°C with 316 STAINLESS STEEL fittings.
- Vacuum: 0.9 .
- P.L.N.E: Coef. 3 at 20°C.
- With two DN50 Guillemin symmetrical half-couplings in aluminium or 316 stainless steel, 50 mm serration, crimped with stainless steel ring.

Guillemin Hose
(mm)
 Reference Length
(m) 		PS at 20°C
(bar)		 Weight
(kg)
DN50 51 112299 2 10 3.70
112300 3 5.10
112301 4 6.50
112302 10 14.90

SYM fitting
316 STAINLESS STEEL		 Hose
(mm)
 Reference Length
(m) 		PS at 20°C
(bar)		 Weight
(kg)
DN50 51 112338 2 10 4.3
112339 3 5.70
112340 4 7.20
112341 10 15.60
