HYDRO INTERVENTION 20 - 30 dewatering submersible pump

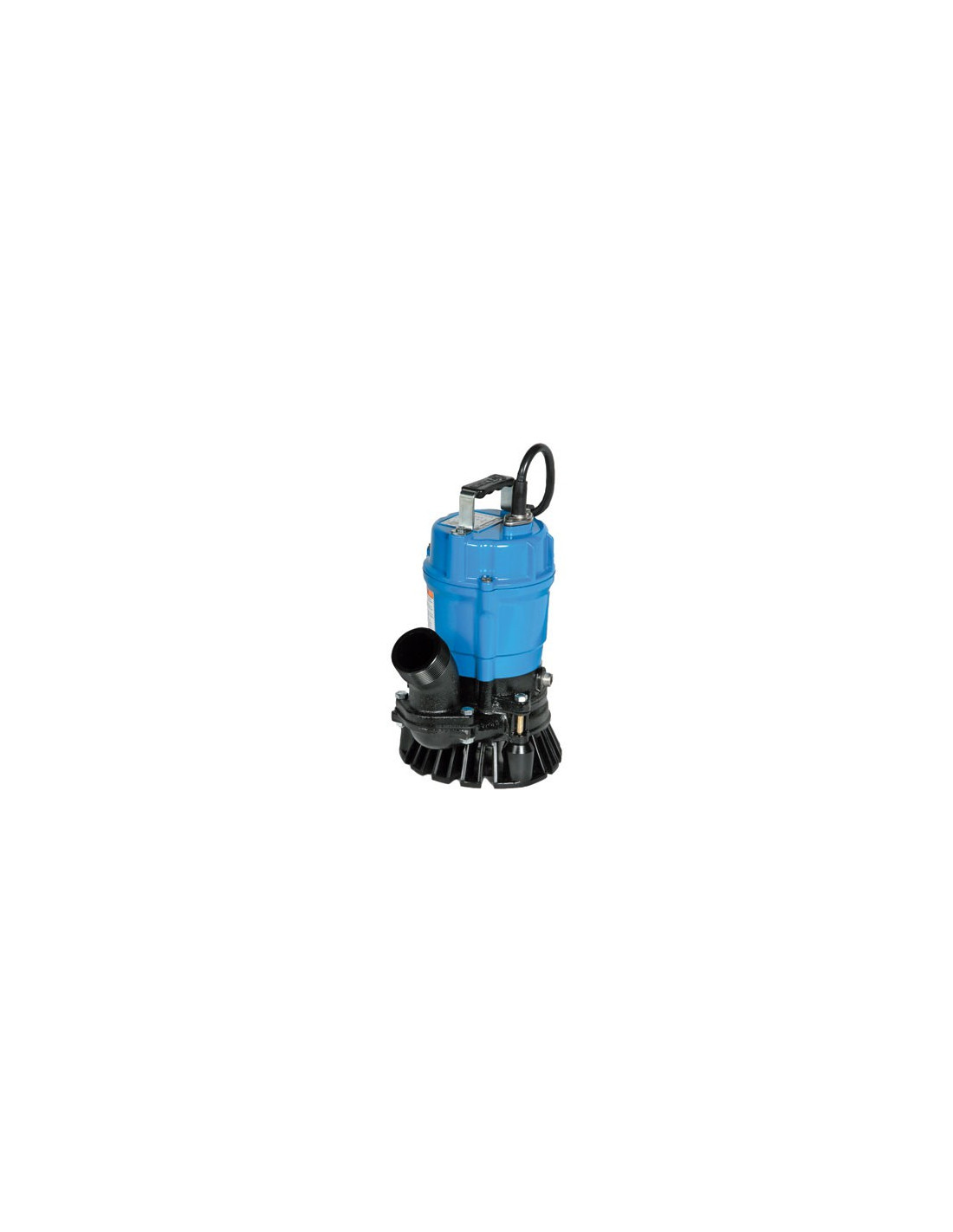

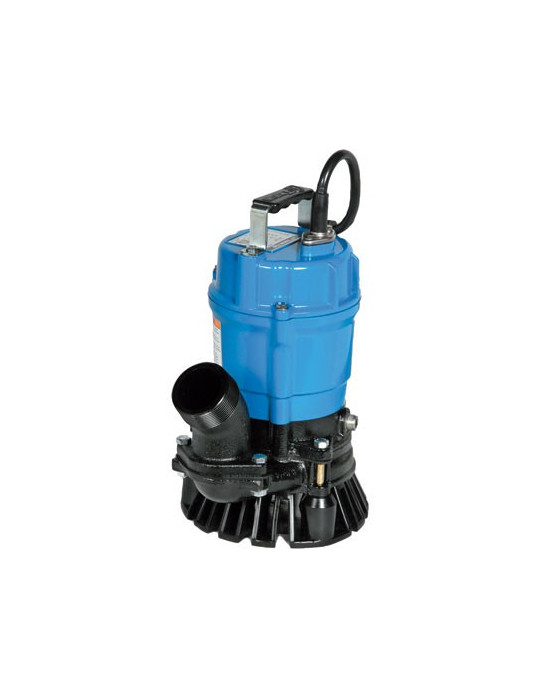

Portable construction site pump TSURUMI HS2-4S

215013
Delivery 2 to 4 days
€646.67

€646.67 tax excl.

Single-phase lift pump with agitator. Ideal for draining excavations, pumping muddy site water and sand-laden drainage water, and for emptying sumps, basins and ponds, groundwater lowering, rainwater drainage and run-off water. Solids passage Ø max 7mm. Lift up to 10 m max, flow rate up to 12.4 m3/h.

Float

Attributs
Image Ref. Float Unit price Avail. Buy
Portable construction site pump TSURUMI HS2-4S
215016 With
€771.67
Available

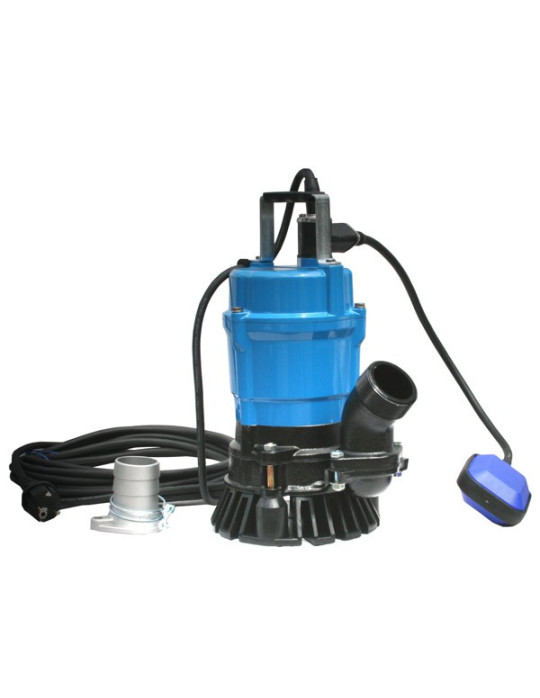

Portable construction site pump TSURUMI HS2-4S
215013 Without
€646.67
Available

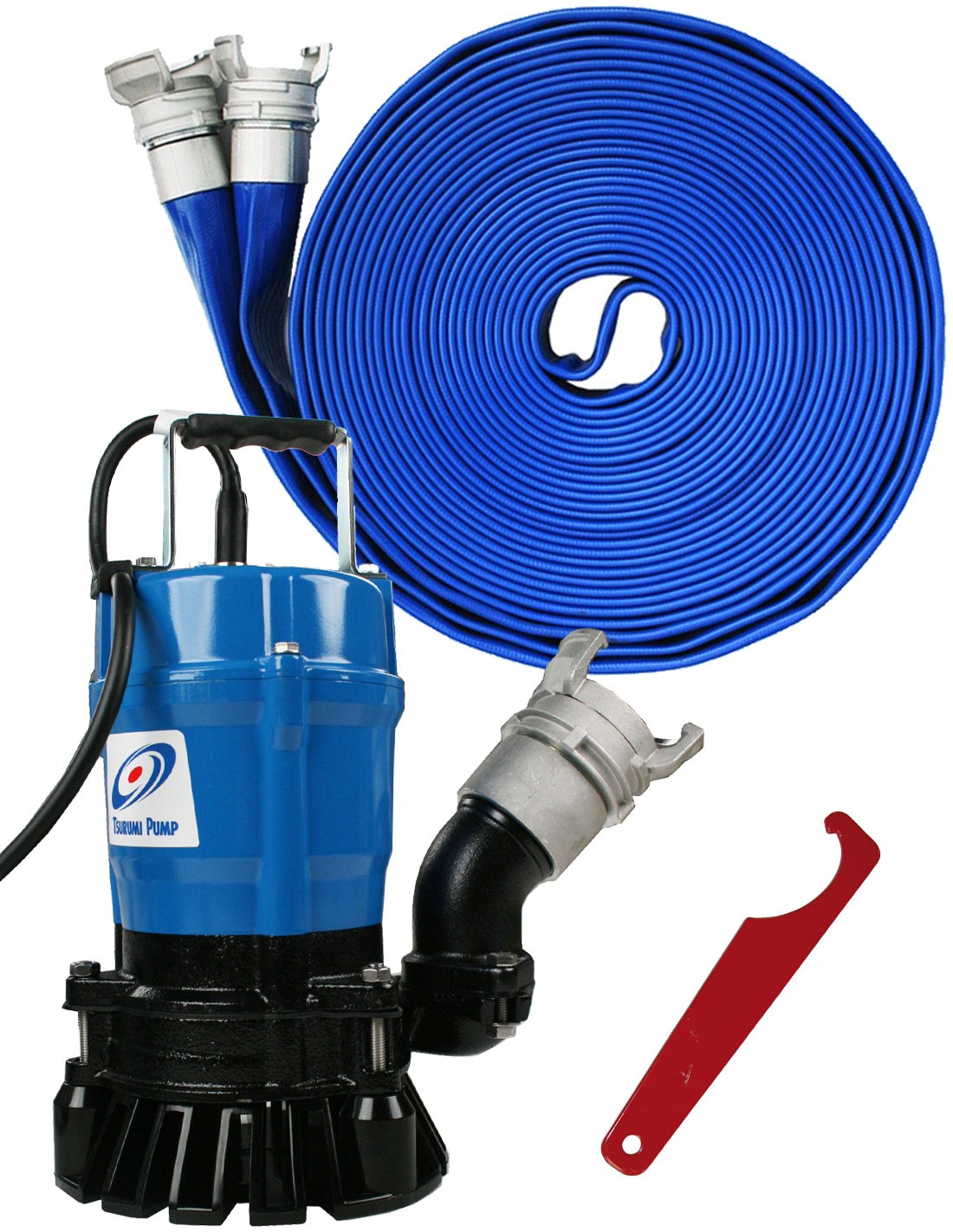

Portable construction site pump TSURUMI HS2-4S
215385 Sans (01)
€817.50
Available
Total: 0,0
All prices with tax included.
Available Product is available
Out of stock Product is no longer in stock
Can be back-ordered Product is no in stock, but is allowed to be back-ordered
Description

The Tsurumi HS2-4S pump is very tough and robust, and is suited to use as a portable or fixed pump.

Use:
- Draining puddles, water tables, groundwater.
- Drainage of rainwater and run-off.
- Pumping of sand-laden water.
- Sump pump.

HS2-4S pump specifications:
- Semi-vortex impeller pump with agitator.
- Designed for prolonged dry running.
- Pumped liquid temperature: 0 to +40°C.
- Aluminium alloy motor casing.
- Volute-type pump body in EN-GJS-700-2 ductile iron.
- EN-X6Cr13 stainless steel shaft.
- Double silicon carbide mechanical seal.
- Polyurethane impeller.
- 2" threaded (50 x 60) and 50 mm ribbed discharge outlet. Ref: 215013 and 215016.
- Discharge outlet with DN50 Guillemin locking coupling + DN50 Guillemin flat hose kit, crimped, length 20m. Ref: 215385.

Model HS2-4S
 HS2-4S
AUTO
 HS2-4S
KIT
Reference 215013 215016 215385
Power (Kw) 0.4
Voltage 230V
Float switch WITHOUT WITH WITHOUT
Current (A) 2.6
Max TDH (mWC) 12.2
Max flow rate (m3/h) 12.4
Max flow rate (l/min) 207
Particle size (mm) 7
Max depth (m) 20
Cable (m) 10
Ø discharge (BSP) BSP 2" M
Ribbed D50		 GUILLEMIN
DN50
Flat hose D50 (L20m) WITHOUT WITH
Weight (Kg) 11.3 12.0 26

 Customs number: 84 13 70 29 000 OB - Made in Japan.
