Specifications :

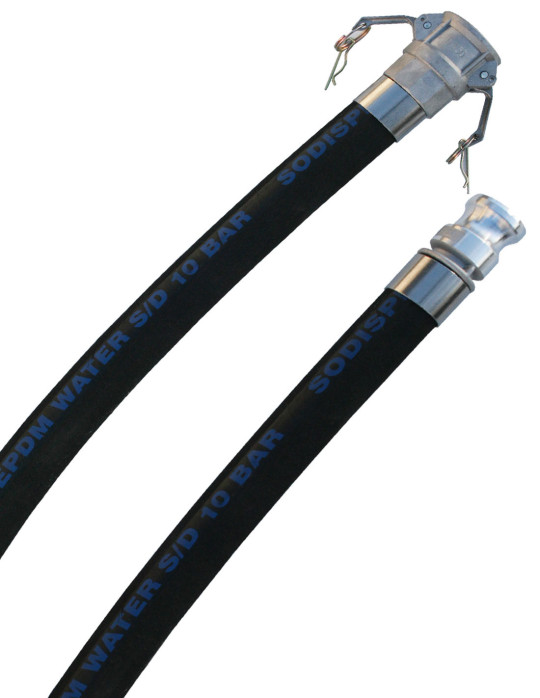

- Used for suction and delivery of water, fire hydrants, loaded liquids, sea water, in public works, industry, agriculture, mining and various industrial applications, hot water up to 100°C with 316 stainless steel fittings.
- Inner tube: smooth black EPDM.
- Reinforcement: steel spiral + textile plies.
- Cover: black EPDM with cloth impression.
- Marking: EPDM WATER S/D PN 10 BAR.
- Liquid temperature: -20° +60°C with ALUMINIUM fittings.
- Liquid temperature: -20° +100°C with 316 STAINLESS STEEL fittings.
- Vacuum: 0.9 .
- P.L.N.E: Coef. 3 at 20°C.
- With two DN100 Camlock couplings, adapter and coupler in aluminium or 316 stainless steel, aluminium or 316 stainless steel, crimped with stainless steel ring.
| Camlock coupling Aluminium |
Hose (mm) |
Reference | Length (m) |
PS at 20°C (bar) |
Weight (kg) |
|---|---|---|---|---|---|
| DN100 | 100 | 112577 | 2 | 10 | 8.6 |
| 112578 | 3 | 11.9 | |||
| 112589 | 4 | 15.2 | |||
| 112580 | 8 | 28.3 | |||
| 112581 | 10 | 34.8 | |||
| 112582 | 20 | 67.5 |
| Camlock coupling 316 STAINLESS STEEL |
Hose (mm) |
Reference | Length (m) |
PS at 20°C (bar) |
Weight (kg) |
|---|---|---|---|---|---|
| DN100 | 100 | 112585 | 2 | 10 | 9.2 |
| 112586 | 3 | 12.6 | |||
| 112587 | 4 | 15.8 | |||
| 112588 | 8 | 29.0 | |||
| 112589 | 10 | 35.5 | |||
| 112590 | 20 | 68.0 |
