Kit apiration tuyau pompier raccord Guillemin

Pump and engine-driven pump suction kit DN50 to DN150

135612
Delivery 3 to 5 days
€275.00

€275.00 tax excl.

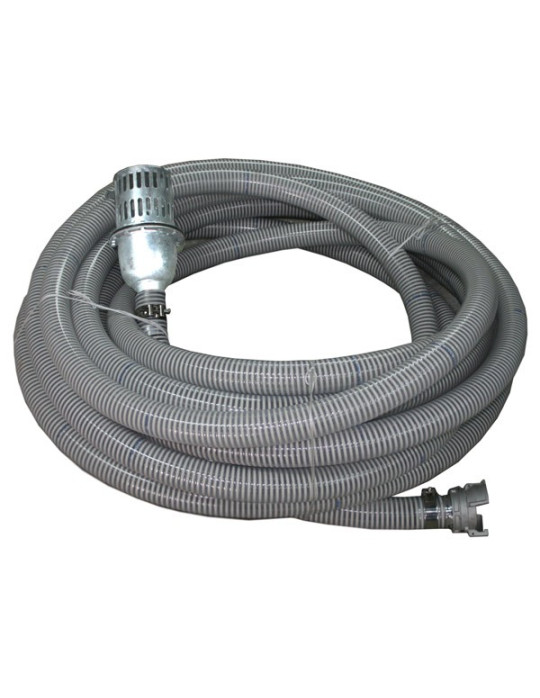

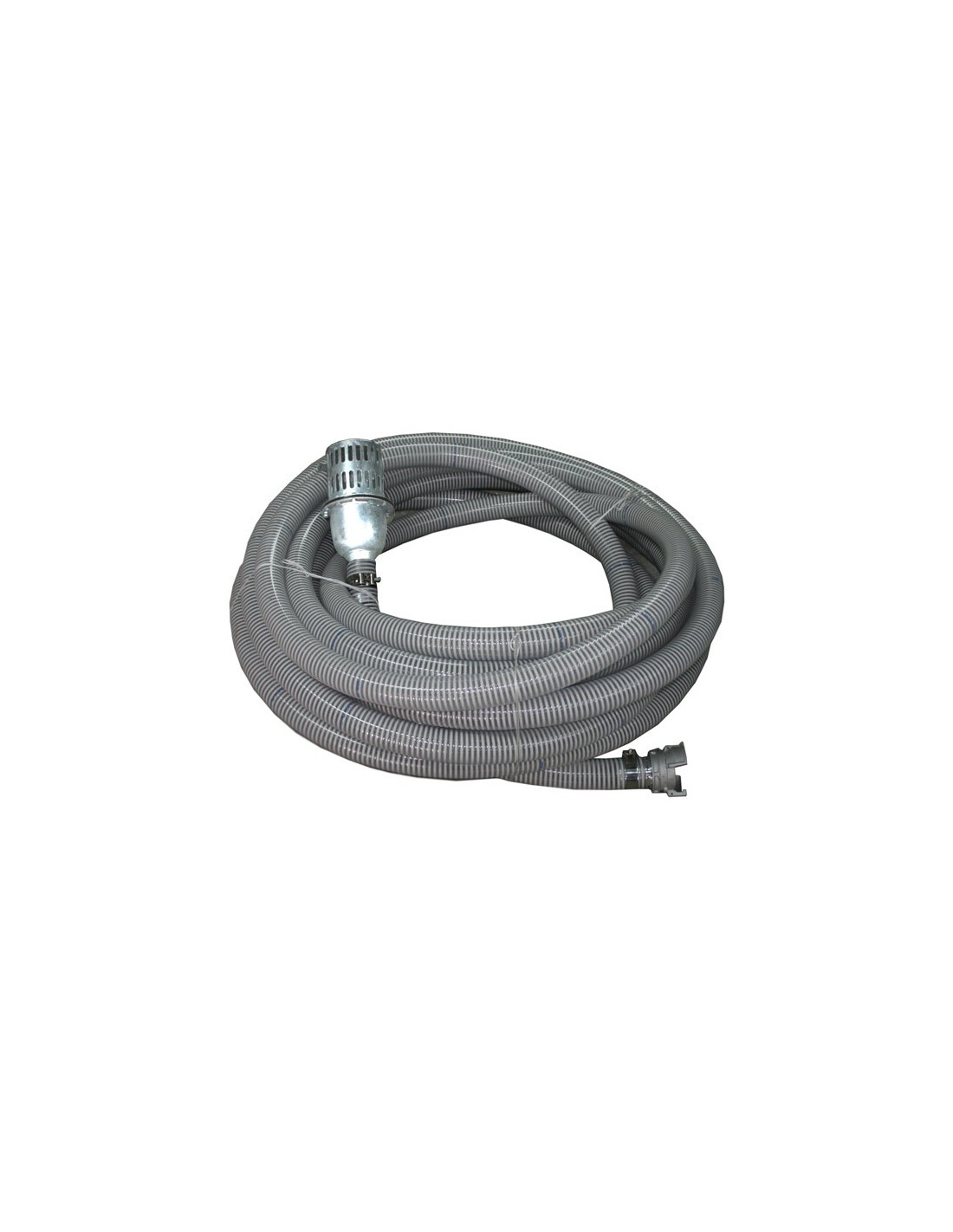

Suction kit for pump or engine-driven pump, surface pump, with check valve operable by lever, galvanised strainer, semi-rigid spiral hose, Guillemin coupling connection. (other connection, contact us).

Model

Attributs
Image Ref. Model Unit price Avail. Buy
Pump and engine-driven pump suction kit DN50 to DN150
135612 DN 50
€275.00
Available
Pump and engine-driven pump suction kit DN50 to DN150
135613 DN 65
€340.00
Available
Pump and engine-driven pump suction kit DN50 to DN150
135614 DN 80
€473.33
Available
Pump and engine-driven pump suction kit DN50 to DN150
135615 DN 100
€620.83
Available
Pump and engine-driven pump suction kit DN50 to DN150
135616 DN 125
€805.83
Available
Pump and engine-driven pump suction kit DN50 to DN150
135617 DN 150
€1,115.00
Available
Total: 0,0
All prices with tax included.
Available Product is available
Out of stock Product is no longer in stock
Can be back-ordered Product is no in stock, but is allowed to be back-ordered
Description

Specifications:
- Reinforced spiral PVC hose, smooth inner surface.
- Check valve with lever control and galvanised steel strainer, hose-tail end.
- Guillemin half coupling with hose-tail end.
- 2 wide-pivot hose clamps in 304 stainless steel.

Special suction kit for engine-driven pumps and surface pumps.

Model DN50 DN65 DN80 DN100 DN125 DN150
Hoses Ø int mm) 50 63 80 102 127 152
Reference 135612 135613 135614 135615 135616 135617
Length (m) 10
PS (bar) 5 4 3 2
