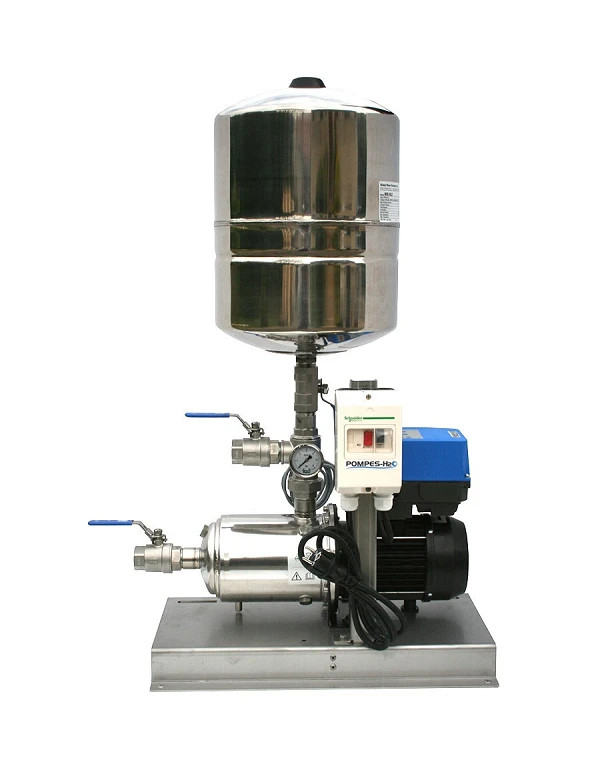

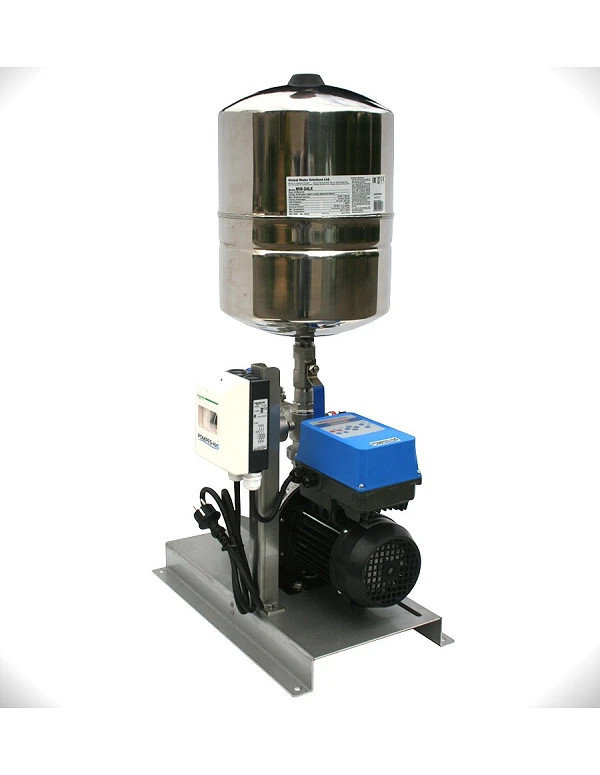

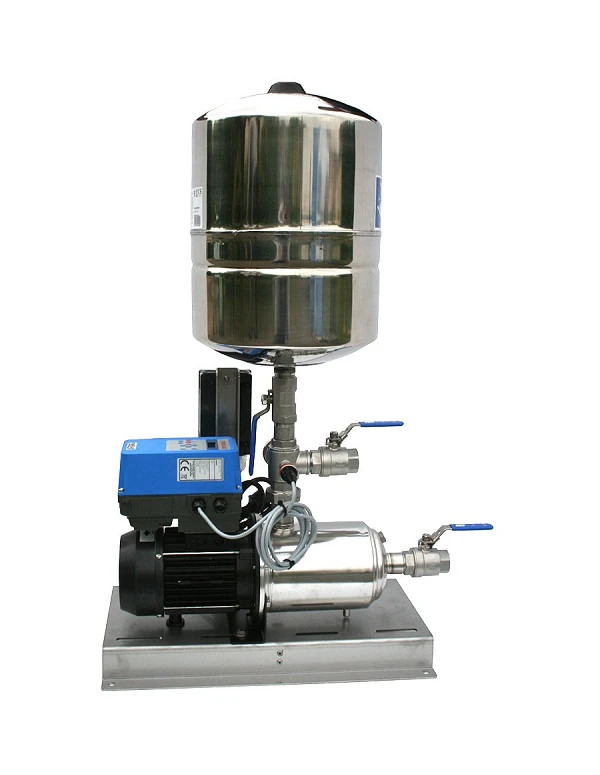

Specifications:
- Horizontal multistage pump, entirely in 304 stainless steel, higher efficiency, IE3 motor.
- SPEEDBOARD variable speed drive, for complete control and management of the pump (mounted on the pump).
- 304 stainless steel omega frame, for pump and post mounting.
- 4-20 mA pressure sensor, at the pump discharge.
- Axial stainless steel pressure gauge 0-6 or 0-10 bar, (depending on model).
- 24 L in-line diaphragm tank PS 10 bar, all 304 stainless steel.
- 1-piece 316 stainless steel valve, (mounted on the tank)
- 2-piece 316 stainless steel valves, flat handles, (mounted on the suction and discharge).
- 316 stainless steel check valve, with 1" and 1/4" tapping.
- 304 stainless steel post, for motor circuit breaker.
- Box + Motor circuit breaker.
- Electric cable set.
- Stainless steel bolts.
- Assembled, connected and tested in the workshop.
- 2-year warranty.
| Model | SBIX EHX 5-5 | SBIX EHX 5-7 |
|---|---|---|
| Reference | 600666 | 600667 |
| Power (Kw) | 1.10 | 1.50 |
| Power supply (V) | 230 single-phase | |
| Max flow rate (m3/h) | 7.0 | |
| Nominal flow rate (m3/h) | 5.0 | |
| Max pressure (bar) | 5.8 | 8.1 |
| Start/stop preset (bar) | 3.5 - 4.5 | 5.0 - 6.0 |
| Suction port | 1" | |
| Discharge port | 1" | |
| Dimensions Length x Width x Height (cm) | 60 x 40 x 92 | |
| Weight (Kg) | 27 | 29 |
