Specifications:

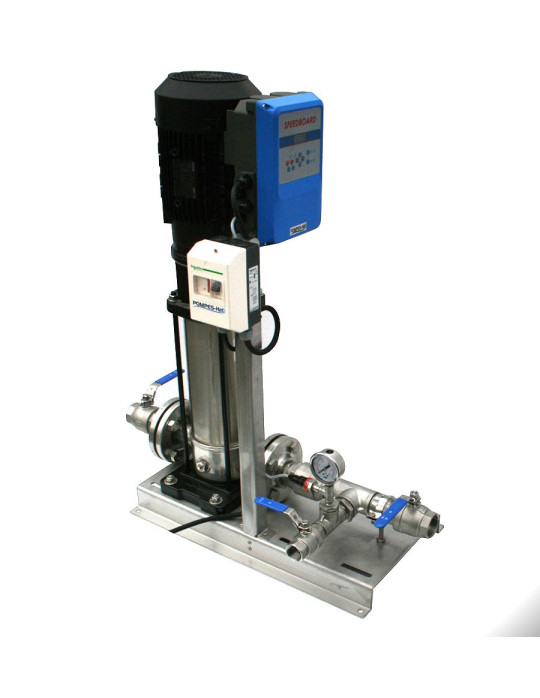

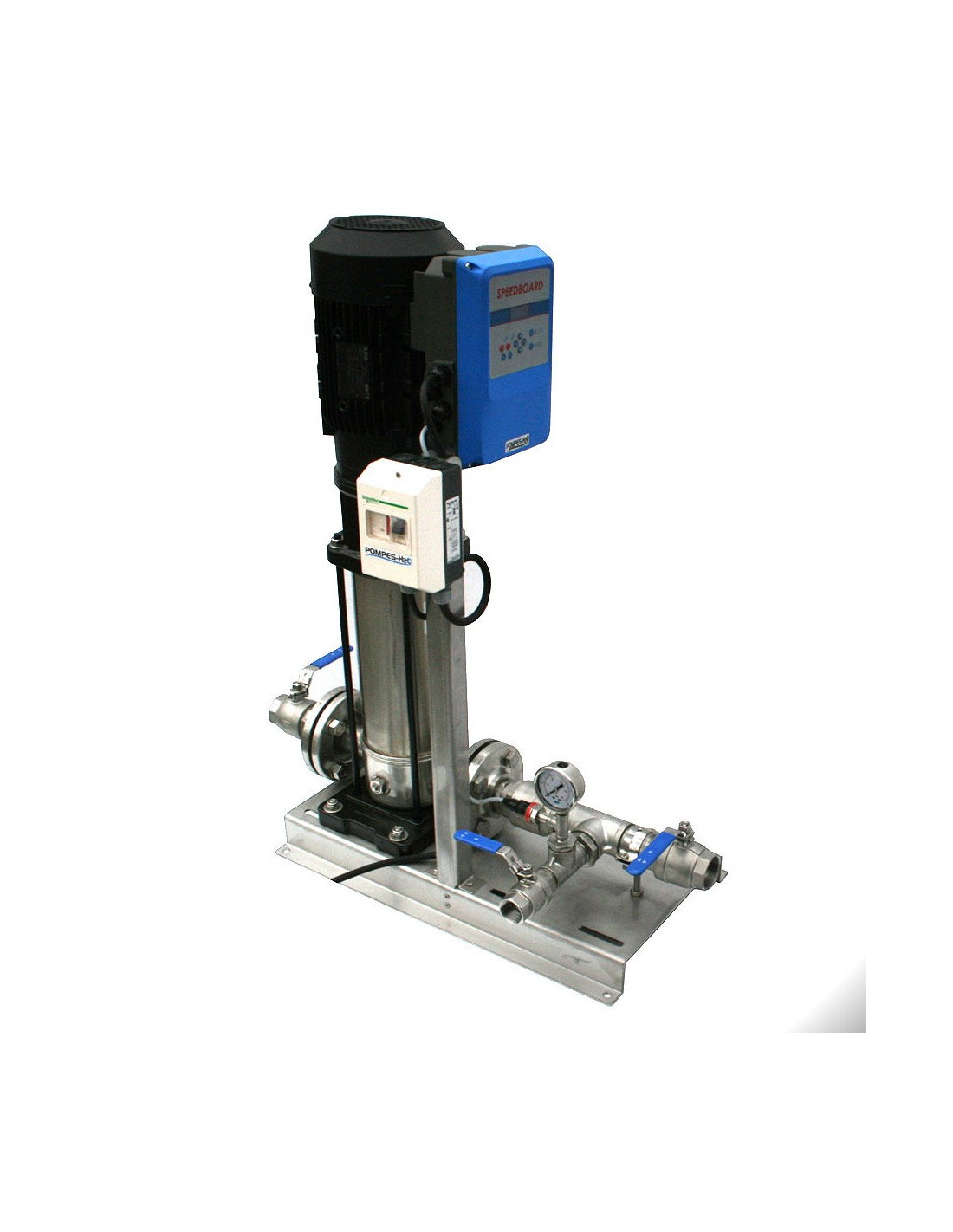

- Vertical multistage three-phase pump, entirely in 304 stainless steel, higher efficiency, IE3 motor.
- SPEEDBOARD variable speed drive, for complete control and management of the pump (mounted on the pump).
- 304 stainless steel omega frame, for pump and post mounting.
- 4-20 mA pressure sensor, at the pump discharge.

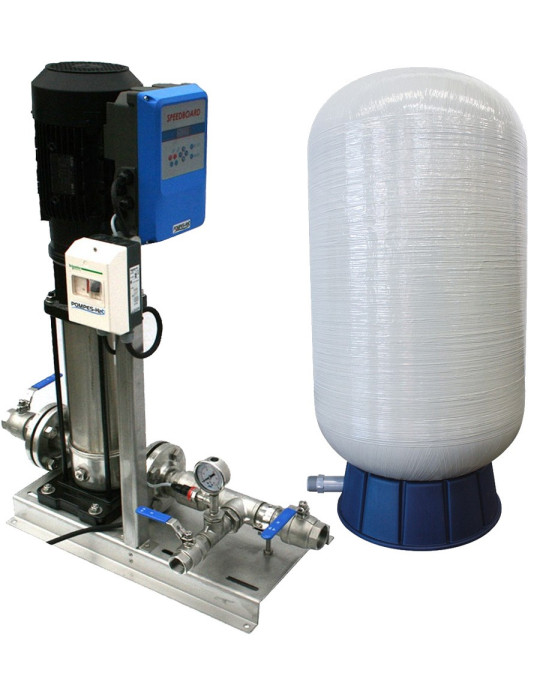

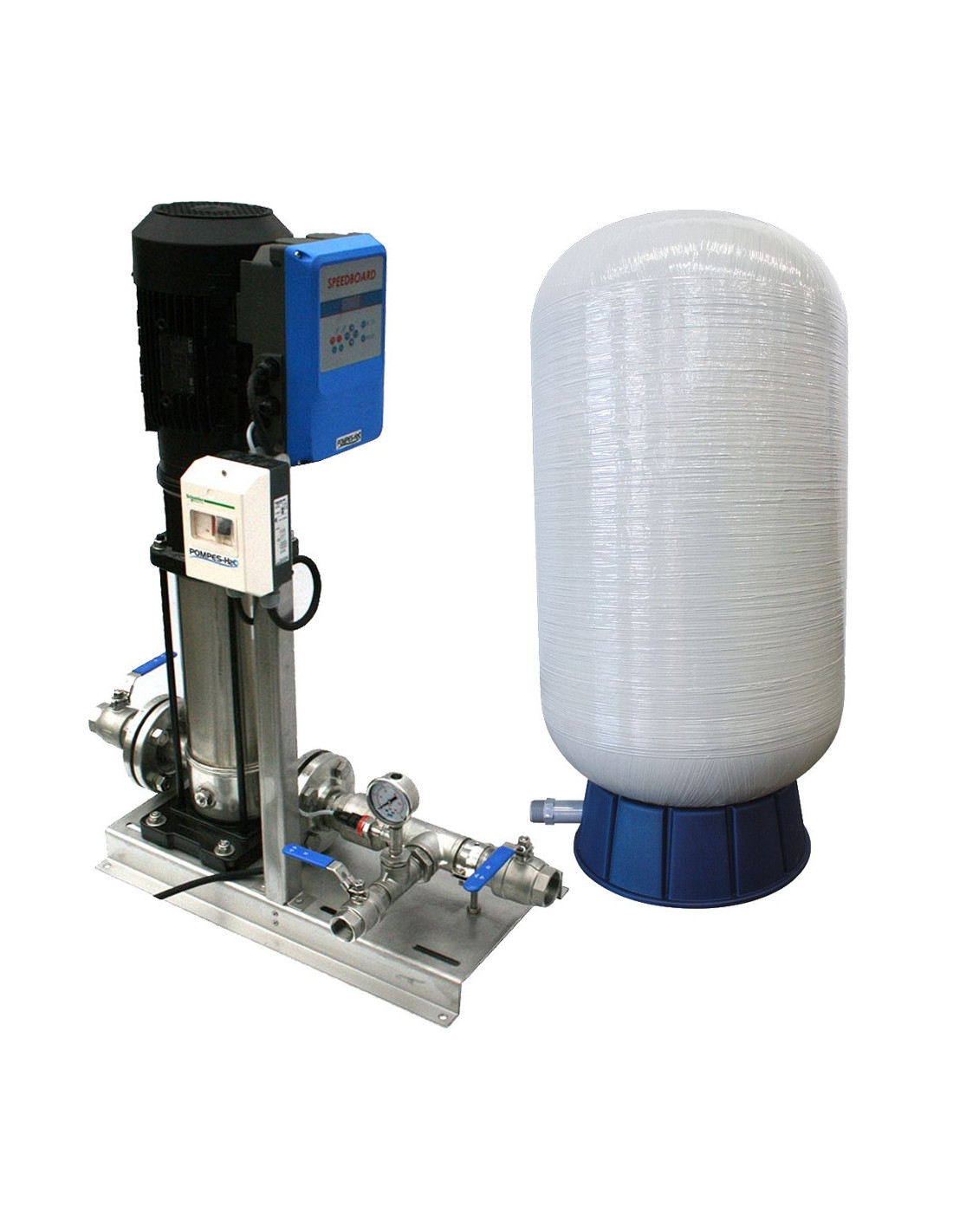

- 100 L vertical diaphragm booster tank.
- 1.20 m connecting hose, from the booster to the pump.
- Axial stainless steel pressure gauge 0-6 or 0-10 bar, (depending on model).
- 2-piece 316 stainless steel valve, diameter 1" for the diaphragm tank.
- 2-piece 316 stainless steel valves, flat handles, (mounted on the suction and discharge).
- 316 stainless steel check valve.
- 304 stainless steel post, for motor circuit breaker.
- Box + Motor circuit breaker.
- Electric cable set.
- Stainless steel bolts.
- Assembled, connected and tested in the workshop.
- 2-year warranty.
| Model | EV 10-5 SVI | EV 10-7 SVI | EV 10-9 SVI |
|---|---|---|---|
| Reference | 600668 | 600669 | 600670 |
| Power (Kw) | 2.20 | 3.00 | 4.0 |
| Power supply (V) | Three-phase | ||
| Nominal flow rate (m3/h) | 10 | ||
| Max flow rate (m3/h) | 14 | ||
| Max pressure (bar) | 4 | 6 | 8 |
| Start/stop preset (bar) | 2.5 - 3.5 | 4 - 5 | 5 - 6 |
| Suction port | DN40 - 1" 1/2 | ||
| Discharge port | DN40 - 1" 1/2 | ||
| Dimensions Length x Width x Height (cm) | 80 x 40 x 74 | 80 x 40 x 78 | 80 x 40 x 84 |
| Weight (Kg) | 65 | 69 | 73 |
