Specifications:

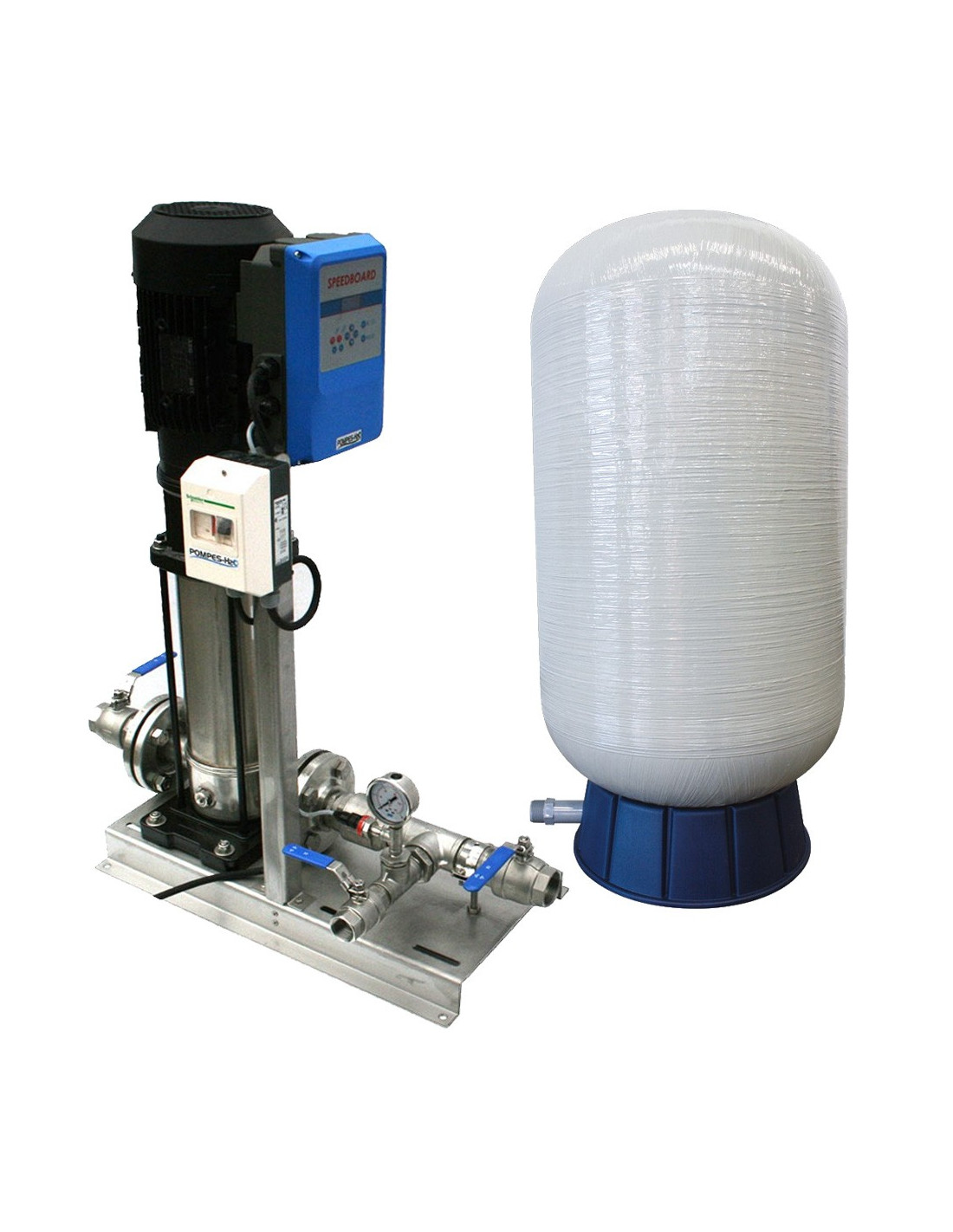

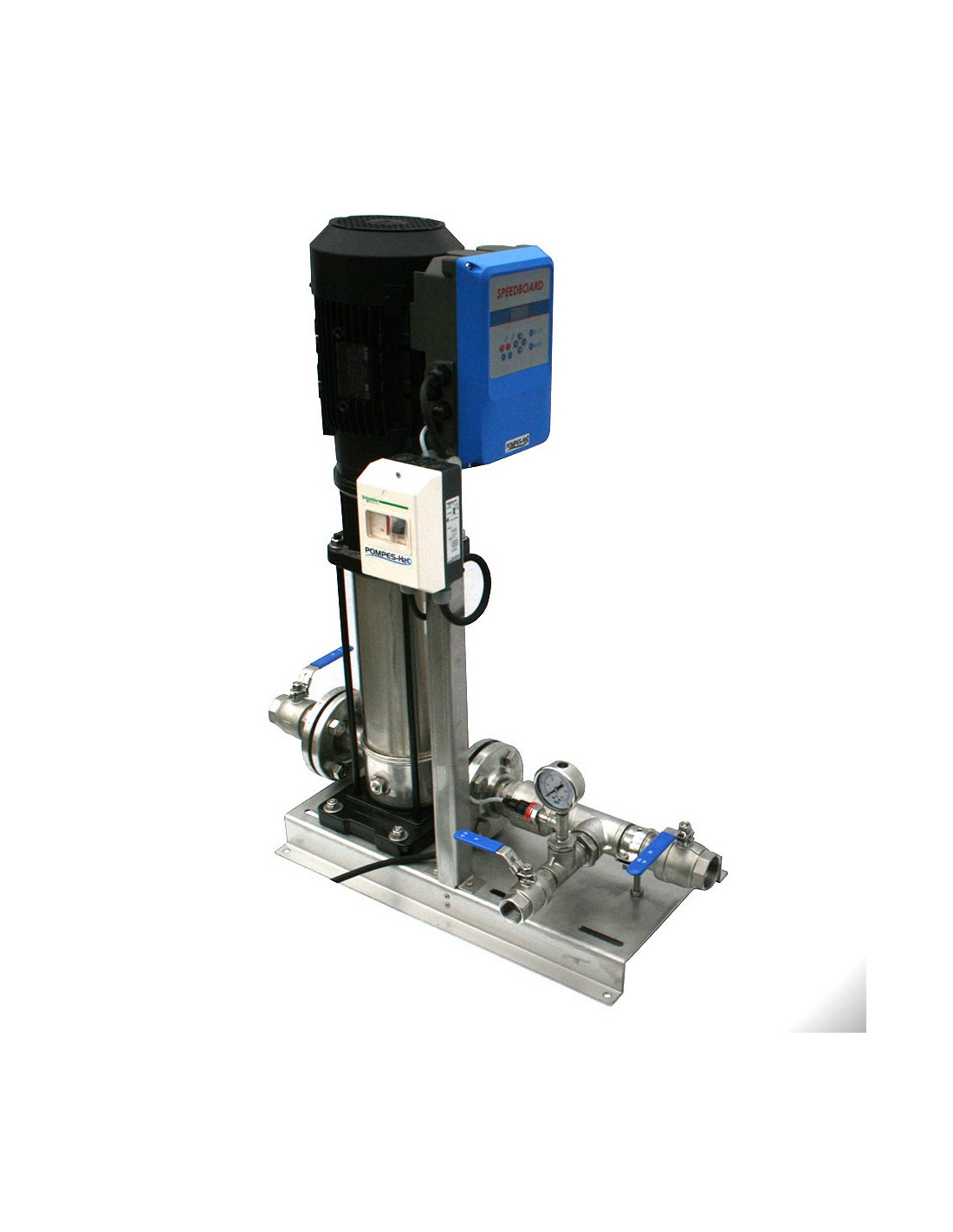

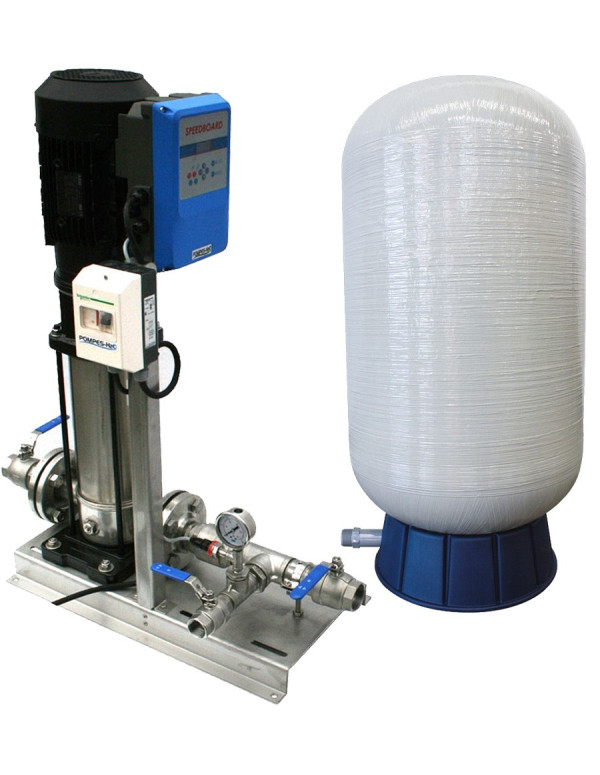

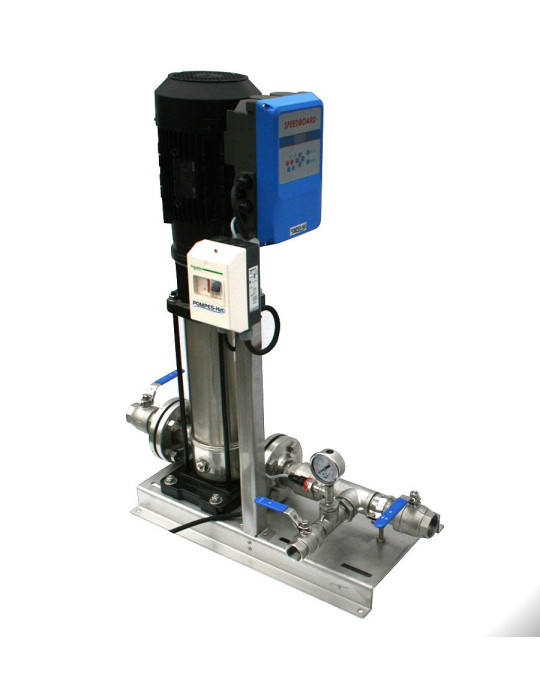

- Vertical multistage three-phase pump, entirely in 304 stainless steel, higher efficiency, IE3 motor.
- SPEEDBOARD variable speed drive, for complete control and management of the pump (mounted on the pump).
- 304 stainless steel omega frame, for pump and post mounting.
- 4-20 mA pressure sensor, at the pump discharge.
- 200 L vertical diaphragm booster tank.
- 2-piece 316 stainless steel valve, diameter 1" for the diaphragm tank.
- 1.20 m connecting hose, from the booster to the pump.
- Axial stainless steel pressure gauge 0-6 or 0-10 bar, (depending on model).
- 2-piece 316 stainless steel valves, flat handles, (mounted on the suction and discharge).
- 316 stainless steel check valve.
- 304 stainless steel post, for motor circuit breaker.
- Box + Motor circuit breaker.
- Electric cable set.
- Stainless steel bolts.
- Assembled, connected and tested in the workshop.
- 2-year warranty.
| Model | 15-3 SVI | 15-5 SVI | 15-7 SVI |
|---|---|---|---|
| Reference | 600684 | 600685 | 600686 |
| Power (Kw) | 3.00 | 4.00 | 5.50 |
| Power supply (V) | Three-phase | ||
| Nominal flow rate (m3/h) | 15 | ||
| Max flow rate (m3/h) | 24 | ||
| Max pressure (bar) | 3.5 | 6 | 9 |
| Start/stop preset (bar) | 2 - 3.0 | 3.5 - 4.5 | 5 - 6.5 |
| Suction port | DN50 - 2" flange | ||
| Discharge port | DN50 - 2" flange | ||
| Dimensions Length x Width x Height (cm) | 80 x 40 x 82 | 80 x 40 x 93 | 80 x 40 x 125 |
| Weight (Kg) | 86 | 93 | 106 |
