Use:
- Water supply for a collective network.
- Supply of networks requiring constant pressure.

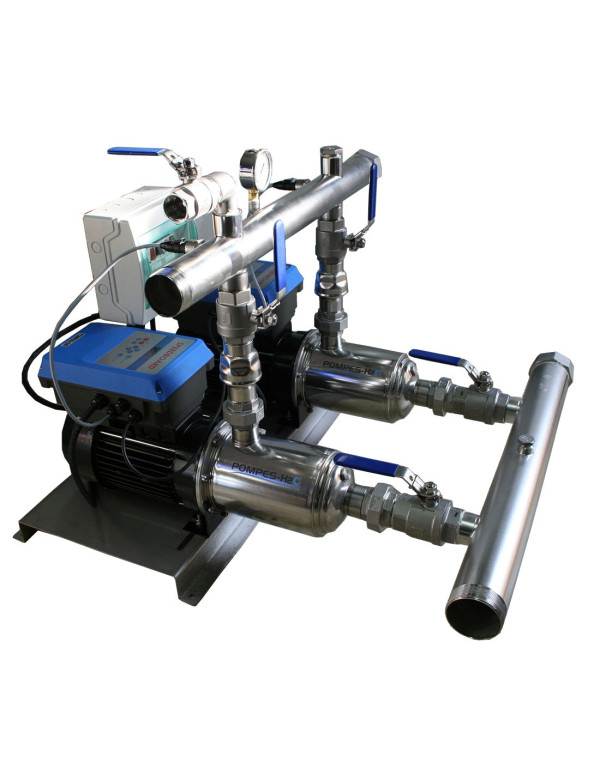

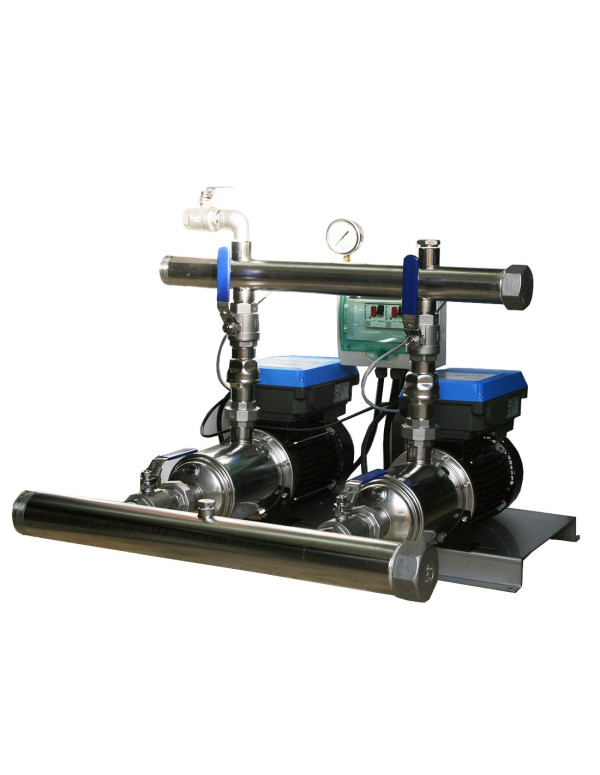

The booster set is supplied with:
- 2 EHX 9-6 horizontal stainless steel multistage three-phase pumps.
- 2 SPEEDBOARD TRI frequency inverters.
- 1 omega frame.
- 1 diaphragm tank 200L.
- 1 rubber hose with stainless steel braid 1", manifold to tank.
- 2 pressure transmitters 0-10 bar / 4/20MA
- 1 pressure gauge 0-10 bar.
- 2 stainless steel manifolds, suction 2" 1/2, discharge 2".
- 1 set of check valves, valves and stainless steel fittings.
- 1 protection panel with two motor circuit breakers.
- 3 metres of cable
- Mounted and wired, ready to use.
| Model | S2HI - 9-6 M | S2HI - 9-6 T |
|---|---|---|
| Reference | 600725 | 600720 |
| Power (kW) | 2 x 2.20 | |
| Supply voltage (V) |
230 / single-phase | 400 / three-phase |
| Max current (A) | 24 | 10 |
| Suction manifold (BSP) | 2" 1/2 M | |
| Discharge manifold (BSP) | 2" | |
| Variable flow rate (m3/h) | 0 to 28 |
|
| Max pressure (bar) | 6.0 | |
| Pre-setting (bar) | 4.0 to 4.5 | |
| Noise level | < 50 dB | |
| Ambient temperature | up to 40°C | |
| Cable (m) |
3 | |
| Dimensions (mm) | Length 720 - width 900 - Height 700 | |
| Weight (Kg) | 79 | 80 |
* Contact us for more information on variable-speed booster sets.
