Use:
- Water supply for a collective network.
- Supply of networks requiring constant pressure.

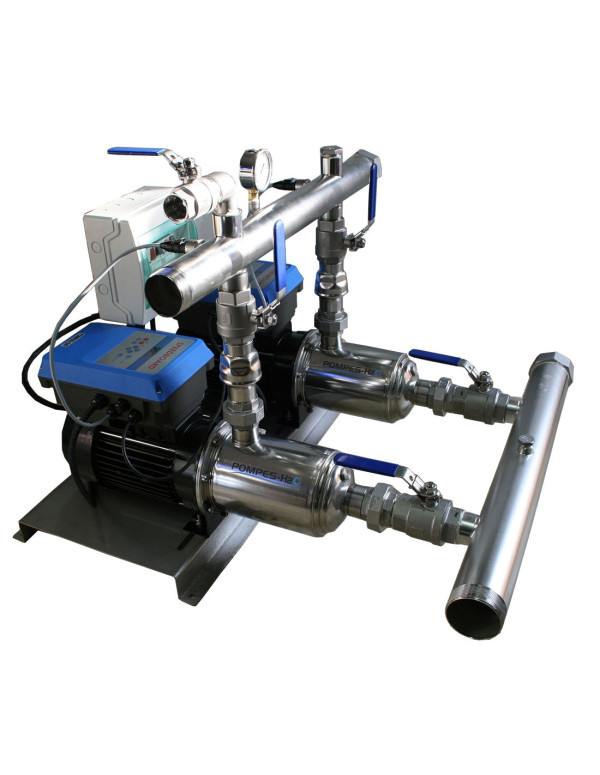

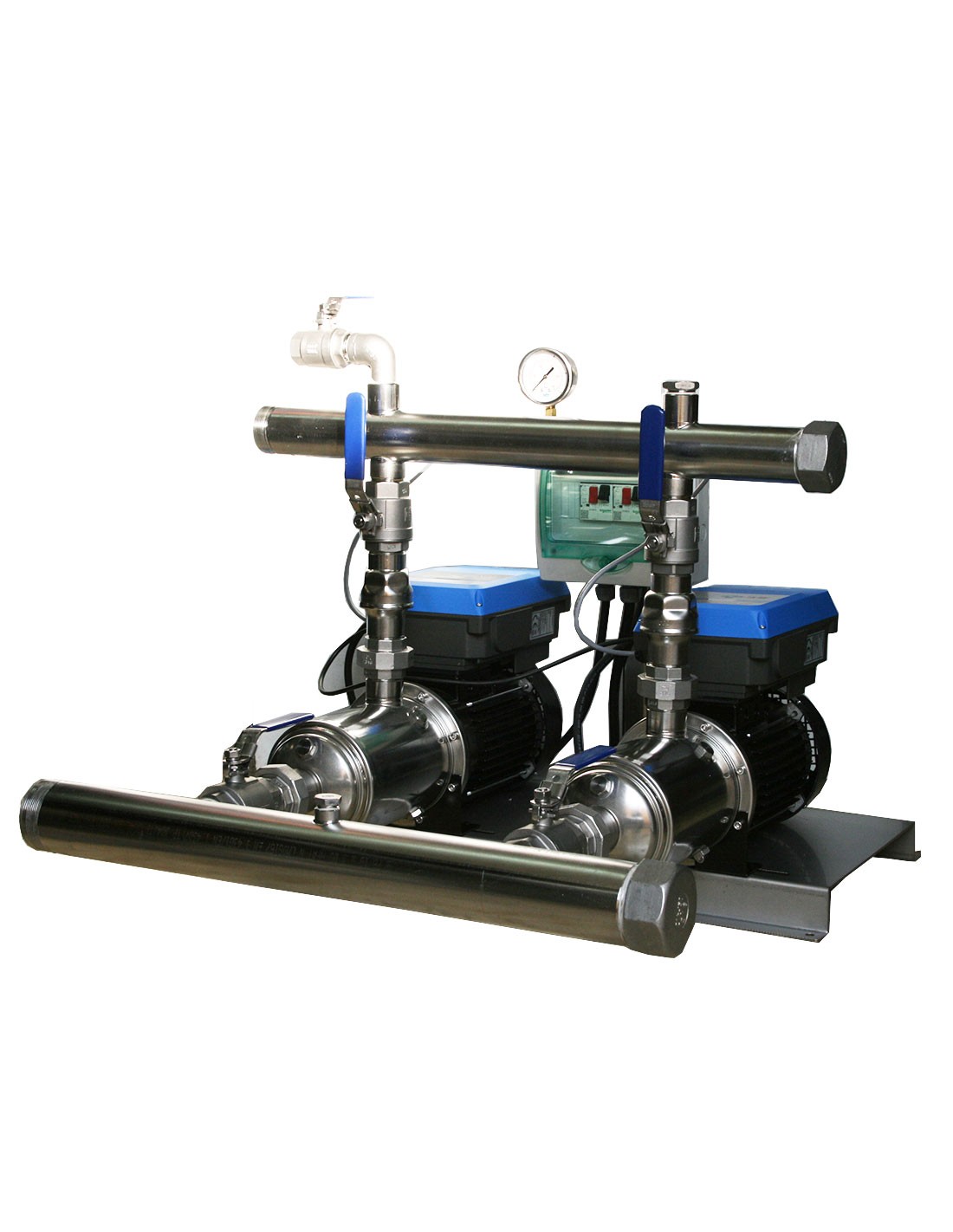

The booster set is supplied with:
- 2 EHX 5-5 horizontal stainless steel multistage single-phase pumps.
- 2 SPEEDBOARD frequency inverters.
- 1 omega frame.
- 1 diaphragm tank 24L.
- 1 rubber hose with stainless steel braid 1", manifold to tank.
- 2 pressure transmitters 0-10 bar / 4/20MA
- 1 pressure gauge 0-10 bar.
- 2 stainless steel manifolds, suction 2", discharge 2".
- 1 set of check valves, valves and stainless steel fittings.
- 1 protection panel with two motor circuit breakers.
- 3 metres of cable
- Mounted and wired, ready to use.
| Model | S2HI-5-5 M | S2HI-5-5 T |
|---|---|---|
| Reference | 600721 | 600724 |
| Power (kW) | 2 x 1.10 | |
| Supply voltage (V) |
230 / single-phase |
400 / three-phase |
| Max current (A) | 11 | 4.5 |
| Suction manifold (BSP) | 2" M | |
| Discharge manifold (BSP) | 2" M | |
| Variable flow rate (m3/h) | 0 to 14 | |
| Max pressure (bar) | 4.5 | |
| Pre-setting (bar) | 3.5 to 4.0 | |
| Noise level | < 50 dB | |
| Ambient temperature | up to 40°C | |
| Cable (m) |
3 | |
| Dimensions (mm) | Length 600 - width 800 - Height 650 | |
| Weight (Kg) | 65 | 66 |
* Contact us for more information on variable-speed booster sets.
