HYDRO INTERVENTION 20 - 30 dewatering submersible pump

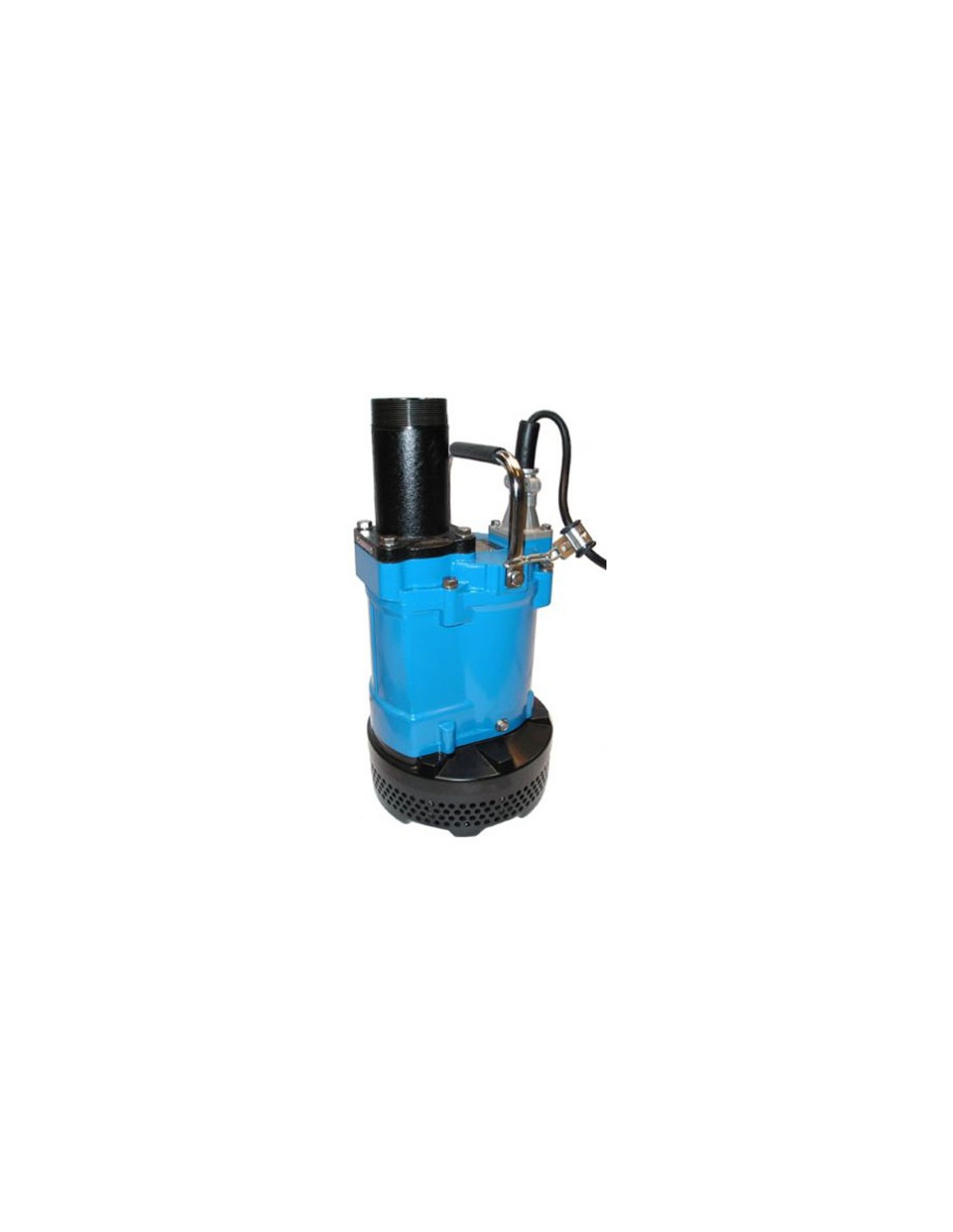

Aluminium drainage pump TSURUMI KTV

215251
Delivery 3 to 5 days
€1,650.00

€1,650.00 tax excl.

The Tsurumi KTV pump series are very light and easy to handle. Applications: pumping of muddy water, sandy water, heavily loaded water, waste water, quarry water, building sites, industrial water, mines, public works... 400V power supply.

PUISSANCE

Attributs
Image Ref. PUISSANCE Unit price Avail. Buy
Aluminium drainage pump TSURUMI KTV
215251 0.75 Kw
€1,650.00
Available
Aluminium drainage pump TSURUMI KTV
215252 1.50 Kw
€2,705.83
Available
Aluminium drainage pump TSURUMI KTV
215253 2.20 Kw
€2,978.33
Available
Aluminium drainage pump TSURUMI KTV
215254 3.70 Kw
€3,905.83
Available
Aluminium drainage pump TSURUMI KTV
215255 3.70 Kw (1)
€3,905.83
Available
Aluminium drainage pump TSURUMI KTV
215256 5.50 Kw
€4,654.17
Available
Total: 0,0
All prices with tax included.
Available Product is available
Out of stock Product is no longer in stock
Can be back-ordered Product is no in stock, but is allowed to be back-ordered
Description

Uses:
- Water heavily loaded with mud and sand.
- Groundwater, water from mines and quarries.
- Water from building sites, public works and roads.
- Industrial water, polluted water.
- Fire brigades, civil engineering, municipal services.

Specifications:
- Aluminium alloy motor housing.
- Coated synthetic rubber pump body.
- Stainless steel motor shaft EN-X30Cr13, EN-X6Cr13.
- Semi-vortex impeller in ductile cast iron EN-GJS-700-2.
- Sealing: double mechanical seal, silicon carbide, oil bath.
- Sealed ball bearings.
- Induction motor, 2-pole windings, speed 2850 rpm.
- Motor thermal protection (built in). - Insulation: Class E.

Model KTV2-8 KTV2-15 KTV2-22 KTV2-37H KTV3-37 KTV3-55
Reference 215251  215252  215253  215254  215255  215256
Power (Kw) 0.75 1.50 2.20 3.70 3.70 5.50
Three-phase voltage 400 V - 50 Hz
Current (A) 1.8 3.3 4.3 7.4 7.4 9.7
TDH (m) 15 20 24 33.8 26.5 35
Max flow rate (m3/h) 19.2 25.2 31.5 30 49.8 58.8
Max flow rate (l/min) 320 420 525 500 830 980
Particle size (m) 6 8.5
Max depth (m) 10 25
HO7RN-F cable (m)  10 20
Liquid 0 - +40°C
Ø discharge
(mm)		 50 80
Outlet
male (BSP)		 2"   3"
Weight (Kg) 11.5 20.0 23.0 36.0 36.0 47.0
