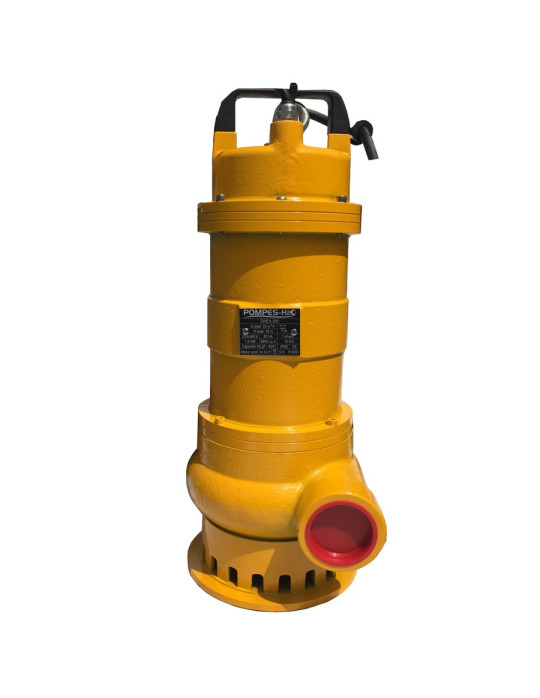

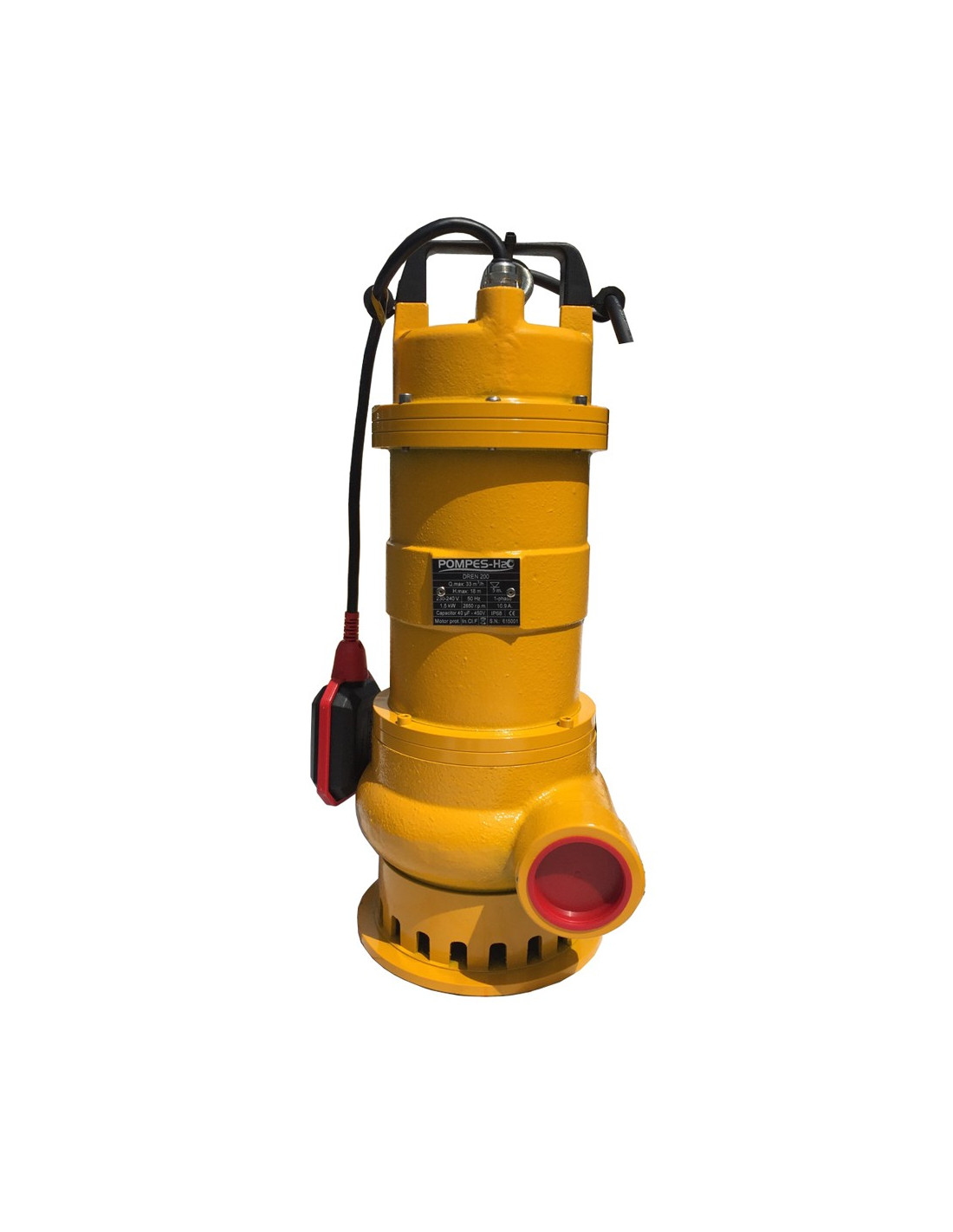

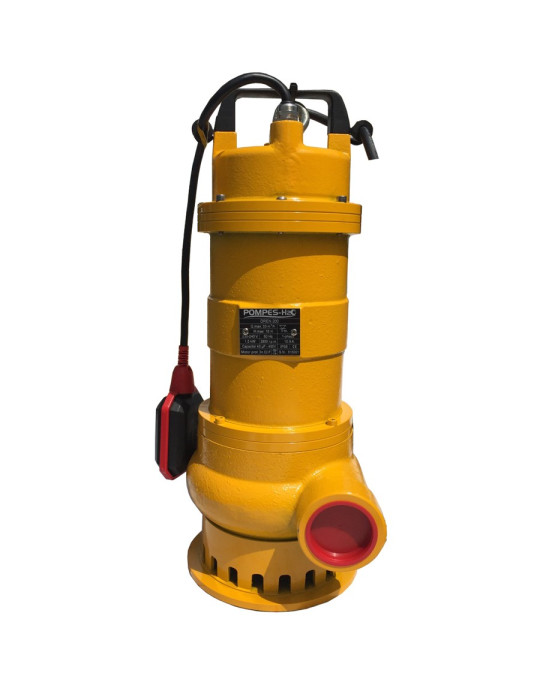

Site drainage pump DREN 200

215336
Delivery 2 to 4 days
€1,150.00

€1,150.00 tax excl.

Submersible drainage pump for water loaded with mud, sand, basement pumping, foundations, crawl spaces, rainwater drainage, sump water. Robust cast iron pump, professional quality, power 1.50 Kw, available in single-phase with or without float, and in three-phase without float, max flow rate 33 m3/h, max head 18 metres.

Model

Attributs
Image Ref. Model Unit price Avail. Buy
Site drainage pump DREN 200
215336 230V avec flotteur
€1,150.00
Available
Site drainage pump DREN 200
215337 230V sans flotteur
€1,128.33
Available
Site drainage pump DREN 200
215338 400V sans flotteur
€1,135.00
Available
Total: 0,0
All prices with tax included.
Available Product is available
Out of stock Product is no longer in stock
Can be back-ordered Product is no in stock, but is allowed to be back-ordered
Description

 Specifications:
- Pump body, cover, delivery body and pump support in cast iron.
- Open two-channel impeller in cast iron.
- 316 stainless steel shaft.
- Double mechanical seal in silicon carbide.
- Oil-bath motor.
- HO7RN-F electric cable, 10 metres.
- Built-in thermal protection and capacitor (single-phase model).
- IP 68 protection.
- Insulation class F.
- Max pumped liquid temperature, 50°C.
- pH between 6 and 10.
- Max pumped liquid density 1100 Kg/m3.
- 2-year warranty.

ModelDREN 200-MFDREN 200-MDREN 200-T
Reference 215336 215337 21338
Voltage (V) 230 - single-phase 400 - three-phase
Power (Kw) 1.50
Current (A) 10.9 4.6
Float WITH WITHOUT
Max flow rate (m3/h) 33
Max flow rate (l/min) 550
Max. head (m) 18
rpm 2850
Solids passage (mm) 5
Horizontal discharge 2" - DN50
Height (A) 514
Width (B) 200
Weight (Kg) 37.5 37 37
