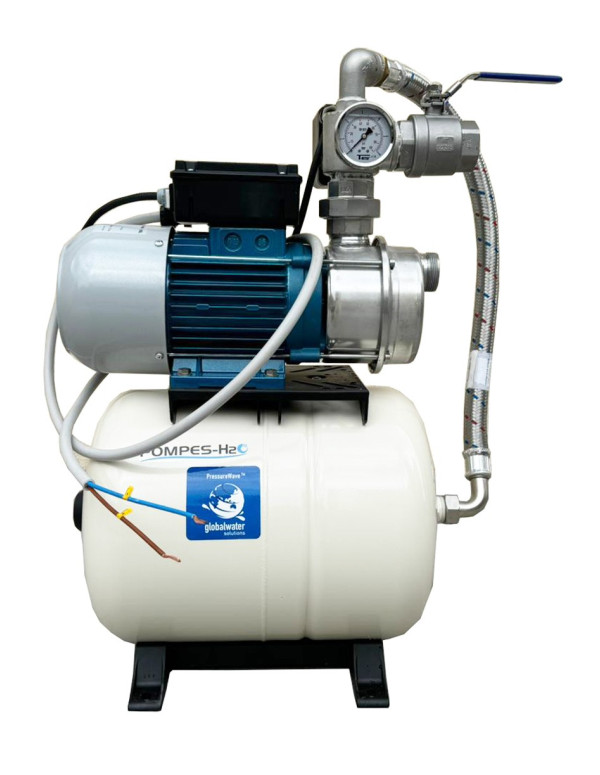

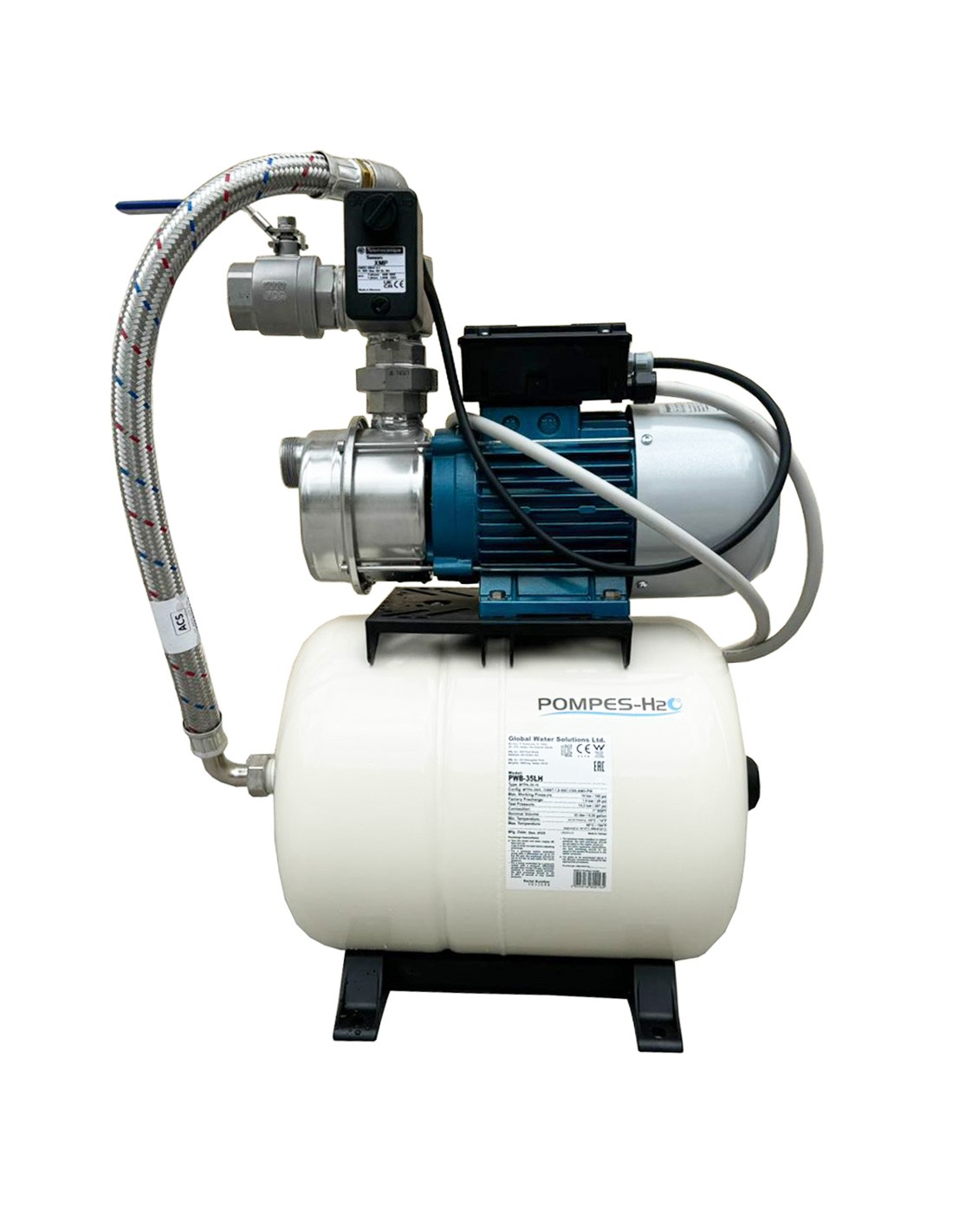

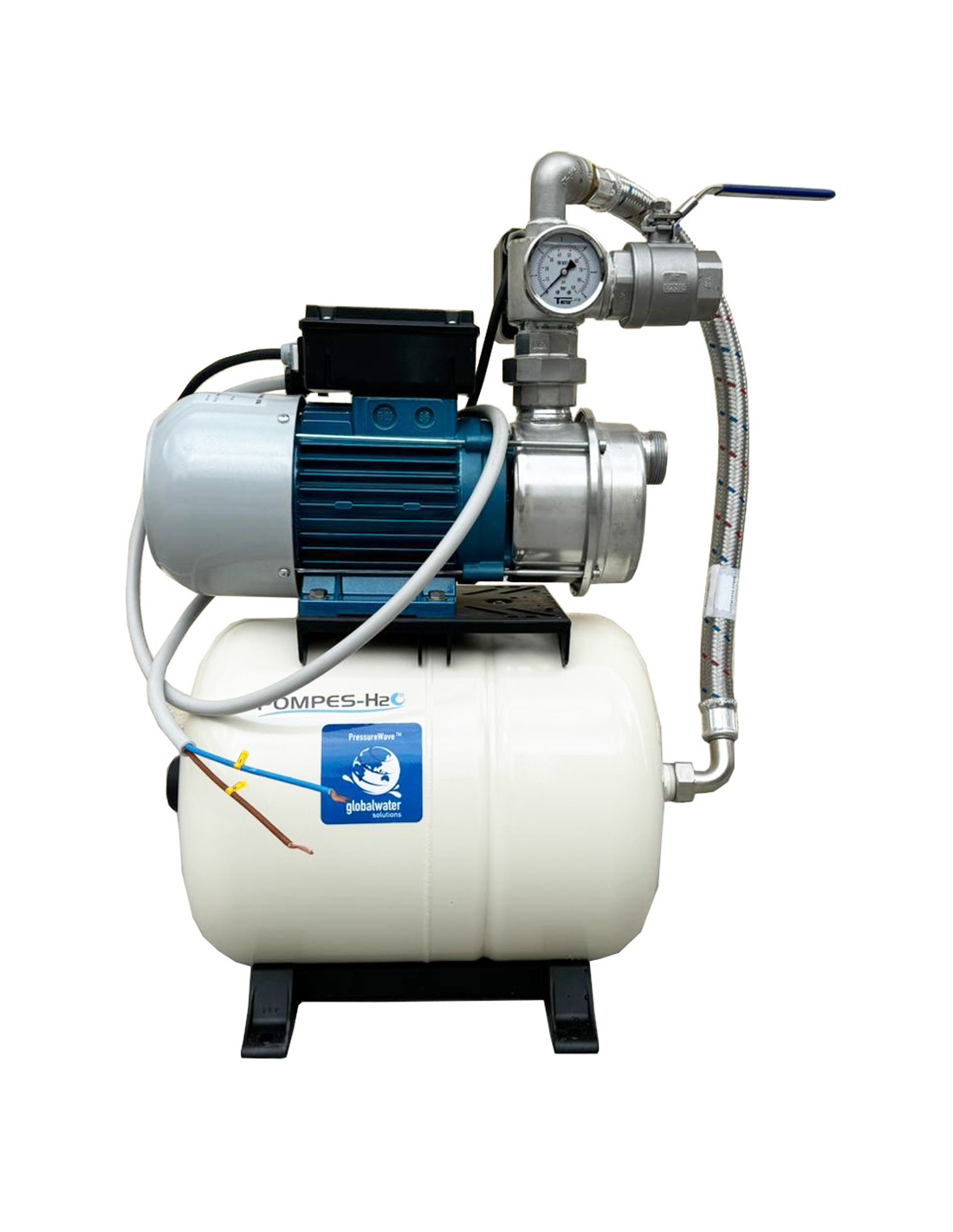

The one-stop solution for pressure boosting and water transfer up to 9 m3/h, 24 Vdc battery supply, 35L food-grade diaphragm booster set, AL24/40 pump, check valve, fittings and valve in 316 stainless steel, assembled, connected, wired and tested by us.
AL24/40 pump specifications:
- 316 stainless steel pump body, impeller and shaft.
- 12 or 24 Volt direct current motor with terminal box.
- Degree of protection IP23.
- Liquid temperature up to +90 °C.
- Ambient temperature up to +40 °C.
- Maximum density: 1.1g/m3 (free of sand particles & not too viscous).
- Do not use with petrol, solvents and, in general, in places where there is a risk of explosion and fire.
- Direct current.
- Maximum suction head: 6 m.
Specifications:
- 1 self-priming 24V electric pump 0.75 Kw.
- 1 horizontal diaphragm tank 35L with pump support.
- 1 0-6 bar pressure switch, XMP PM 6.
- 1 316 stainless steel check valve, outlet 2 x 1/4" F + 1 x 1" + 2 x 1" 1/2 F.
- 1 M/F elbow 1" 1/2 316 stainless steel.
- 1 quarter-turn valve 1" 1/2 316 stainless steel.
- 1 connecting hose.
- 1 electric cable 2 m.
- Assembly mounted, wired and tested in the workshop.
- 2-year warranty.
| Models | GS-AL24/40 |
|---|---|
| Reference | 605643 |
| Supply (V DC) | 24 |
| Power (W) | 750 |
| Consumption (A) |
43 |
| Fuse (A) | 60 |
| Flow rate (l/min) | 0 to 154 |
| Pressure (bar) | 1.5 |
| Max suction head (m) | -6 |
| SUCT-DISCH ports |
1" 1/4 |
| Hose (mm) | 40 |
| Max. liquid temperature (°C) |
40 |
| Protection rating | IP23 |
| Dimensions (mm) Height x Length x Width |
680 x 650x 380 |
| Weight (Kg) | 27.0 |
