Pompe forage 4" Calpeda 4SDPM 4 MONO
Pompe forage 4" Calpeda 4SDPM 4 MONO
Pompe forage 4" Calpeda 4SDPM 4 MONO
Pompe forage 4" Calpeda 4SDPM 4 MONO

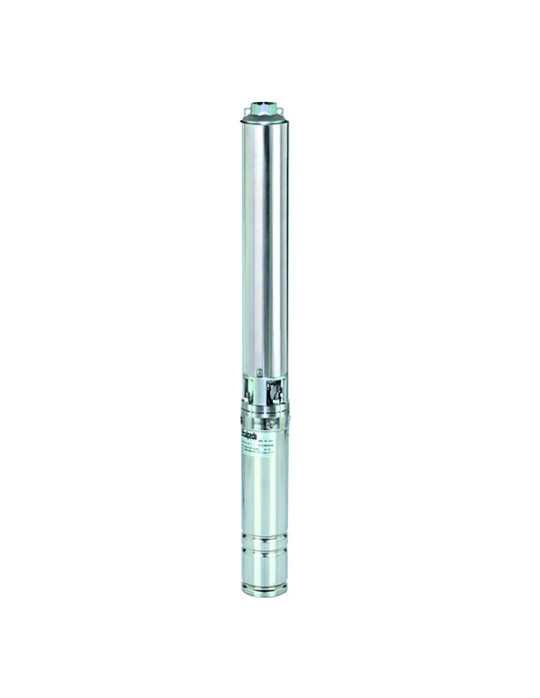

4" borehole pump Calpeda 4SDPM 4 MONO

504490
Delivery 3 to 5 days
£542.80

£542.80 tax excl.

Submersible pumps for 4 inch boreholes, single phase power supply, max flow rate 6.0 m3/H, floating turbine pump, use for clean liquids, with max quantity of sand allowed in the pump 150 g/m3. Power from 0.37 to 2.20 Kw.

PUISSANCE

Attributs
Image Ref. PUISSANCE Unit price Avail. Buy
4" borehole pump Calpeda 4SDPM 4 MONO
504490 0.37 Kw
£542.80
Available
4" borehole pump Calpeda 4SDPM 4 MONO
504491 0.55 Kw
£585.36
Available
4" borehole pump Calpeda 4SDPM 4 MONO
504492 0.75 Kw
£630.01
Available
4" borehole pump Calpeda 4SDPM 4 MONO
504493 1.10 Kw
£708.15
Available
4" borehole pump Calpeda 4SDPM 4 MONO
504494 1.50 Kw
£811.41
Available
4" borehole pump Calpeda 4SDPM 4 MONO
504495 2.20 Kw
£941.18
Available
Total: 0,0
All prices with tax included.
Available Product is available
Out of stock Product is no longer in stock
Can be back-ordered Product is no in stock, but is allowed to be back-ordered
Description

Use:
- For water supply.
- For civil and industrial applications.
- For fire services.
- For irrigation.

4SDPM 4 pump specifications:
- Calpeda 4" (DN 96) submersible motor, single-phase 230V supply, 50Hz, 2900 rpm, IP 68 (continuous duty).
- Calpeda 4" multi-stage hydraulic section.
- NORYL impeller and diffuser.
- Liquid temperature up to + 30°C.
- Non-return check valve built into the pump discharge.

Operating limits:
- Maximum water temperature: + 35°C.
- Maximum quantity of sand in the water: 150 g/m3.
- Starts: 20/h maximum at regular intervals.
- Continuous duty.

 Model Reference Power
(kw)		 Current
(A)
 Voltage
(V)		 Stages
(number)
4SDPM 4-5
 504490 0.37 3.2 230
/ single-phase		 5
4SDPM 4-7
 504491 0.55 4.0 7
4SDPM 4-9
 504492 0.75 5.6 9
4SDPM 4-14 504493 1.10 8.0 14
4SDPM 4-18 504494 1.50 10.8 18
4SDPM 4-27 504495 2.20 14.7 27

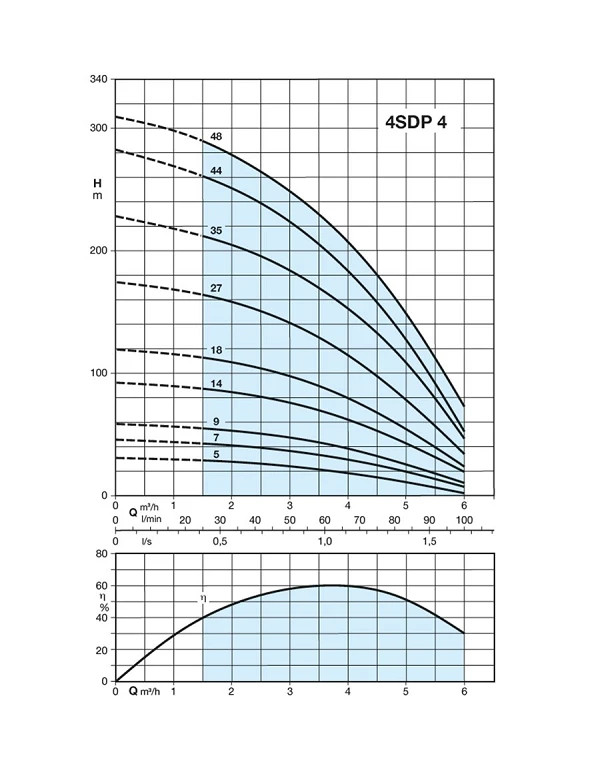

Flow rate m3/h  0 1.5 1.8 2.1 2.4 3 3.6 4.2 4.8 6
l/min 0 25 30 35 40 50 60 70 80 100
4SDPM 4-5


Height
(m)

 33 29 28 27 26 24 21 18 13 3
4SDPM 4-7 46 43 42 41 39 36 33 28 22 7
4SDPM 4-9 59 55 54 52 51 47 43 37 28 10
4SDPM 4-14 93 87 86 83 81 76 68 58 47 20
4SDPM 4-18 120 113 111 108 105 98 88 75 60 25
4SDPM 4-27 175 164 161 157 152 141 127 109 87 35
