Pompe forage 4" Calpeda 4SDPM 8 MONO
Pompe forage 4" Calpeda 4SDPM 8 MONO
Pompe forage 4" Calpeda 4SDPM 8 MONO
Pompe forage 4" Calpeda 4SDPM 8 MONO

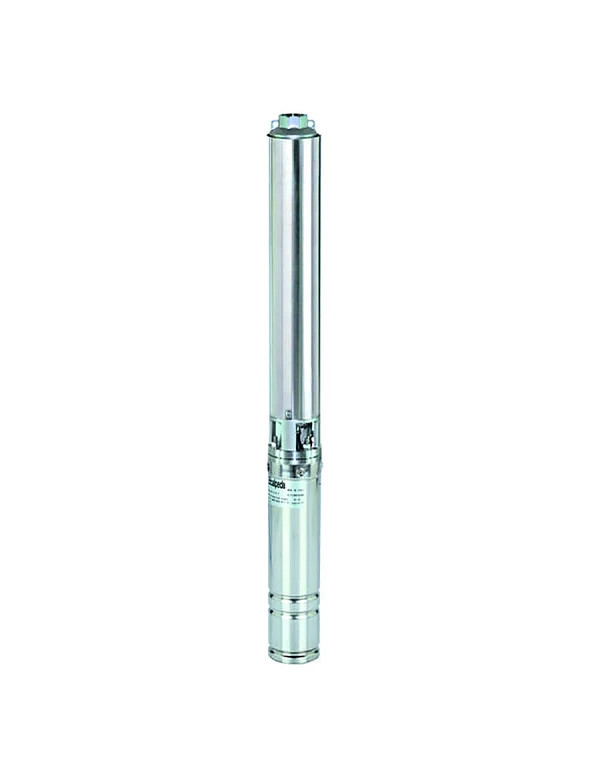

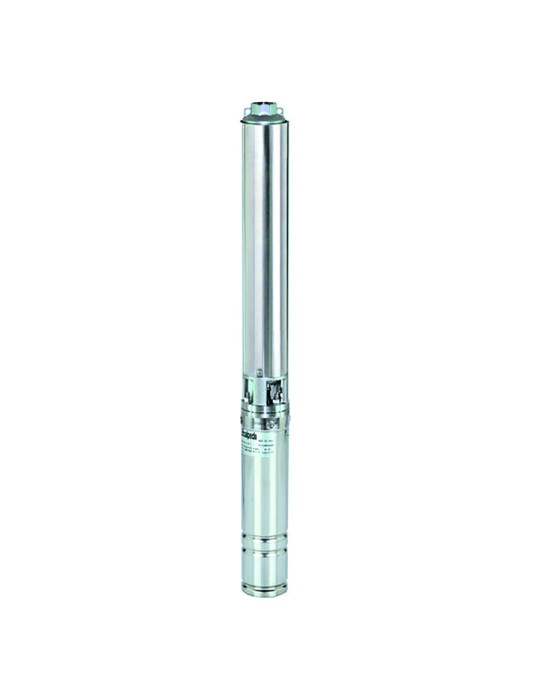

Calpeda 4SDPM 8 MONO 4" borehole pump

504518
Delivery 3 to 5 days
€740.83

€740.83 tax excl.

Submersible pumps for 4" boreholes, single-phase power supply, max. flow rate 12 m3/H, floating turbine pump, use for clean liquids, with max. quantity of sand admitted in the pump 150 g/m3. Power from 0.75 to 2.20 Kw.

PUISSANCE

Attributs
Image Ref. PUISSANCE Unit price Avail. Buy
Calpeda 4SDPM 8 MONO 4" borehole pump
504518 0.75 Kw
€740.83
Available
Calpeda 4SDPM 8 MONO 4" borehole pump
504519 1.10 Kw
€820.00
Available
Calpeda 4SDPM 8 MONO 4" borehole pump
504520 1.50 Kw
€930.83
Available
Calpeda 4SDPM 8 MONO 4" borehole pump
504521 2.20 Kw
€1,120.83
Available
Total: 0,0
All prices with tax included.
Available Product is available
Out of stock Product is no longer in stock
Can be back-ordered Product is no in stock, but is allowed to be back-ordered
Description

Use:
- For water supply.
- For civil and industrial applications.
- For fire services.
- For irrigation.

4SDPM 8 pump specifications:
- Calpeda 4" (DN 96) submersible motor, single-phase 230V supply, 50Hz, 2900 rpm, IP 68 (continuous duty).
- Calpeda 4" multi-stage hydraulic section.
- NORYL impeller and diffuser.
- Liquid temperature up to + 30°C.
- Non-return check valve built into the pump discharge.

Operating limits:
- Maximum water temperature: + 35°C.
- Maximum quantity of sand in the water: 150 g/m3.
- Starts: 20/h maximum at regular intervals.
- Continuous duty.

 Model Reference Power
(kw)		 Current
(A)
 Voltage
(V)		 Stages
(number)
4SDPM 8-4
 504518 0.75 5.6 230
/ single-phase		 4
4SDPM 8-6
 504519 1.10 8.0 6
4SDPM 8-8
 504520 1.50 10.8 8
4SDPM 8-13
 504521 2.20 14.7 13

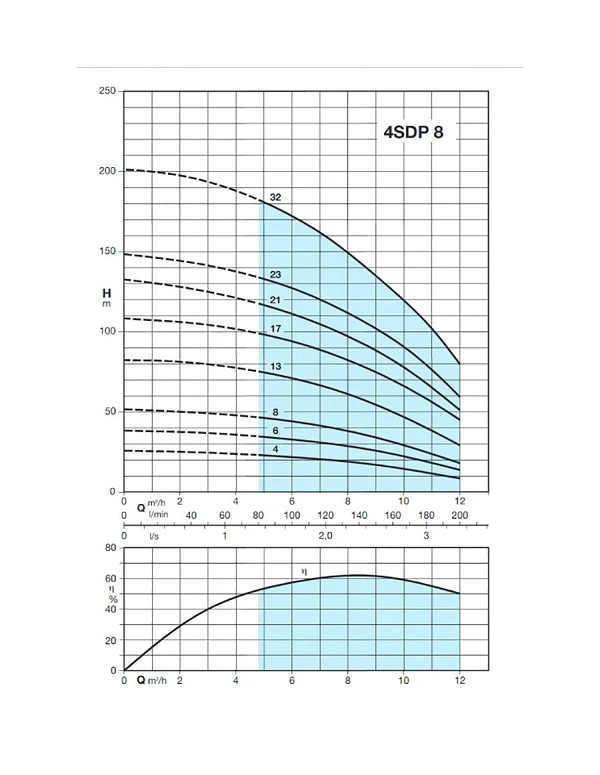

Flow rate m3/h  0 4.8 5.4 6 7.8 8.4 9.6 10.8 12
l/min 0 80 90 100 120 140 160 180 200
4SDPM 8-4


Height
(m)

 26 23 22 21 20 18 16 12 9
4SDPM 8-6 38 35 34 33 31 28 24 19 14
4SDPM 8-8 52 47 44 44 41 37 31 25 18
4SDPM 8-13 82 75 71 71 71 59 50 40 30
