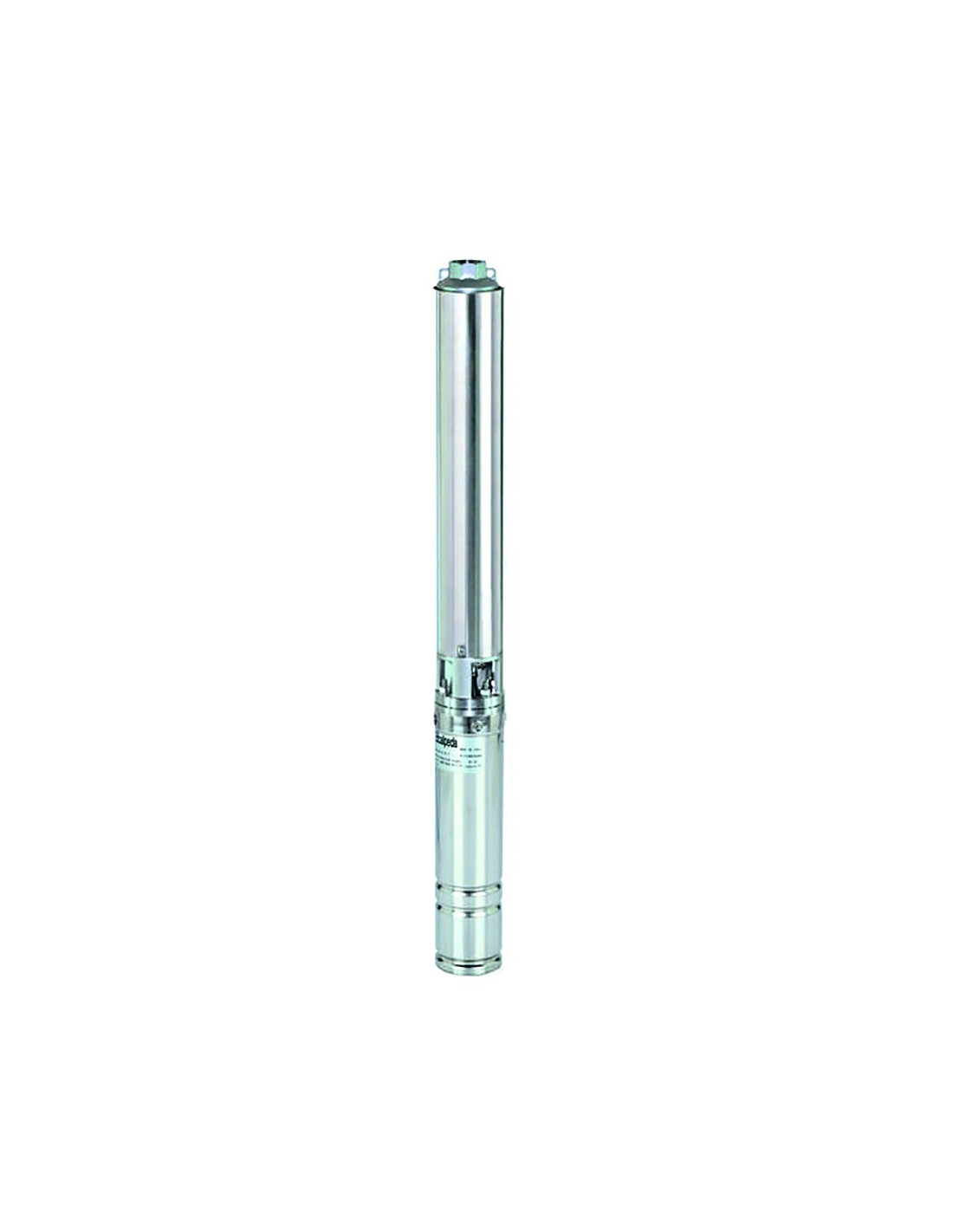

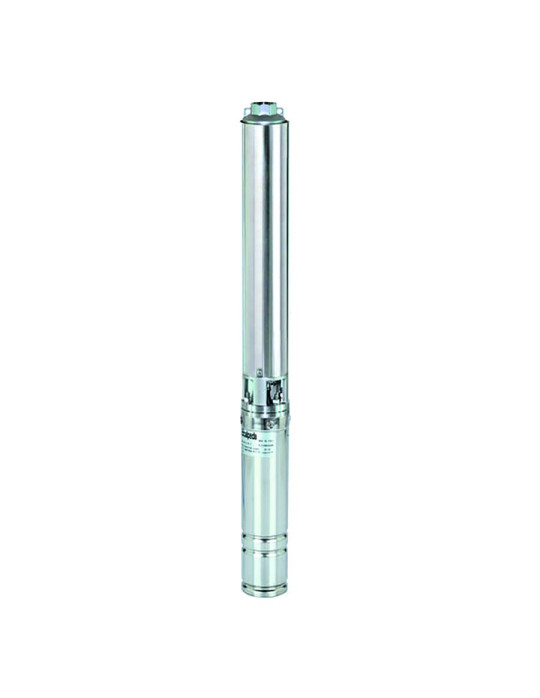

Calpeda 4SDP 16 TRI 4" borehole pump

504529
Delivery 3 to 5 days
€1,356.67

€1,356.67 tax excl.

Submersible pumps for 4 inch boreholes, three-phase power supply, max flow rate 24.0 m3/H, floating turbine pump, use for clean liquids, with max quantity of sand admitted in the pump 150 g/m3. Power from 2.20 to 5.50 Kw.

PUISSANCE

Attributs
Image Ref. PUISSANCE Unit price Avail. Buy
Calpeda 4SDP 16 TRI 4" borehole pump
504529 2.20 Kw
€1,356.67
Available
Calpeda 4SDP 16 TRI 4" borehole pump
504530 3.00 Kw
€1,635.83
Available
Calpeda 4SDP 16 TRI 4" borehole pump
504531 4.00 Kw
€1,942.50
Available
Calpeda 4SDP 16 TRI 4" borehole pump
504532 5.50 Kw
€2,393.33
Available
Total: 0,0
All prices with tax included.
Available Product is available
Out of stock Product is no longer in stock
Can be back-ordered Product is no in stock, but is allowed to be back-ordered
Description

Use:
- For water supply.
- For civil and industrial applications.
- For fire services.
- For irrigation.

4SDP 16 pump specifications:
- Calpeda 4" (DN 96) submersible motor, three-phase 400V supply, 50Hz, 2900 rpm, IP 68 (continuous duty).
- Calpeda 4" multi-stage hydraulic section.
- NORYL impeller and diffuser.
- Liquid temperature up to + 30°C.
- Non-return check valve built into the pump discharge.

Operating limits:
- Maximum water temperature: + 35°C.
- Maximum quantity of sand in the water: 150 g/m3.
- Starts: 20/h maximum at regular intervals.
- Continuous duty.



 Model Reference Power
(kw)		 Current
(A)
 Voltage
(V)		 Stages
(number)
4SDP 16-8
 504529 2.20 5.5 400
/ Tri
 8
4SDP 16-11
 504530 3.00 7.4 11
4SDP 16-15
 504531 4.00 9.4 15
4SDP 16-20
 501532 5.50 13.0 20

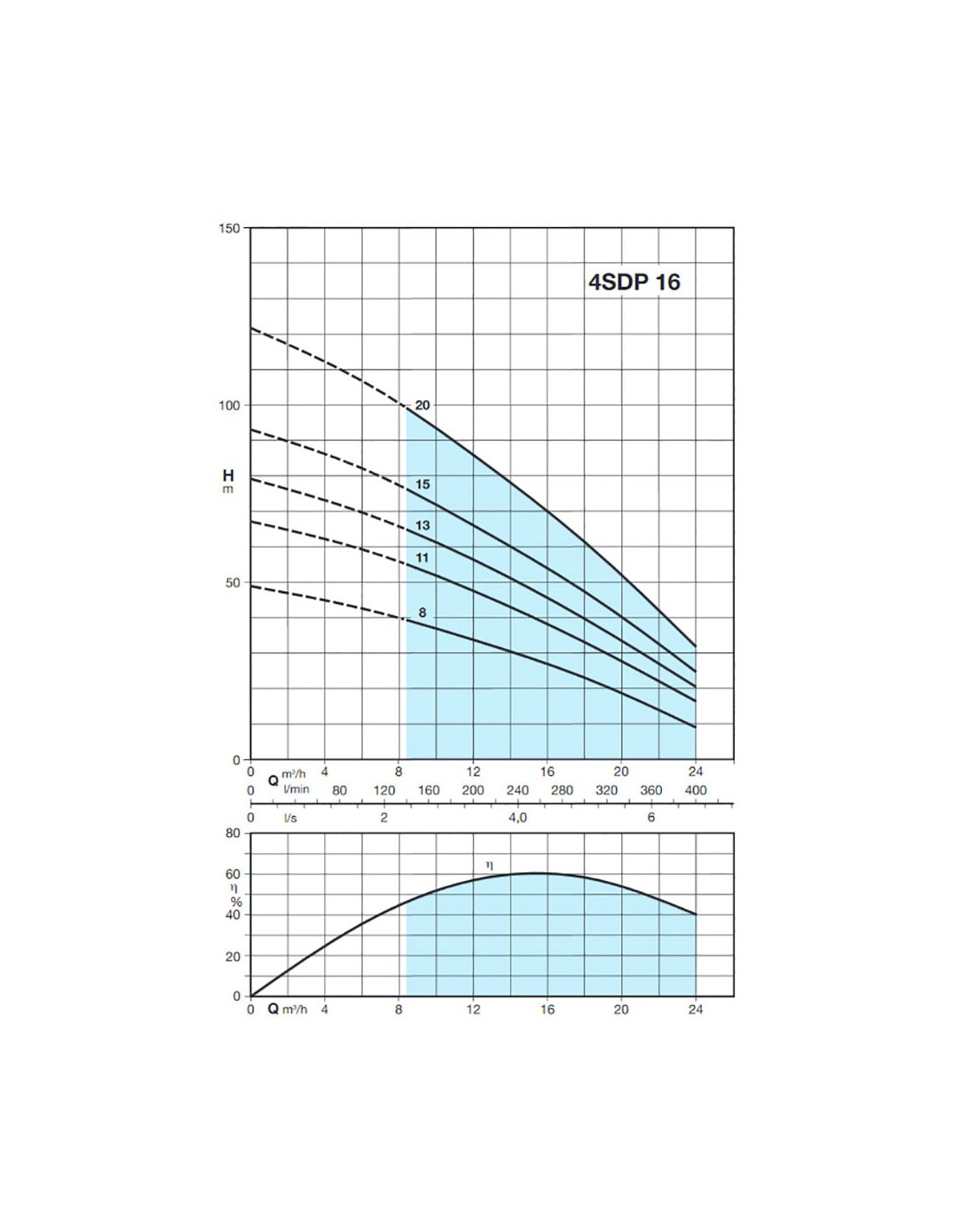

Flow rate m3/h  0 8.4 9.6 10.8 12.0 15.6 18.0 21.6 24.0
l/min 0 140 160 180 200 260 300 360 400
4SDP 16-8


Height
(m)

 49 39 38 36 34 28 23 15 9
4SDP 16-11 67 55 53 50 48 39 33 23 16
4SDP 16-15 93 76 73 70 66 55 47 34 25
4SDP 16-20 122 99 95 90 86 72 61 44 32
