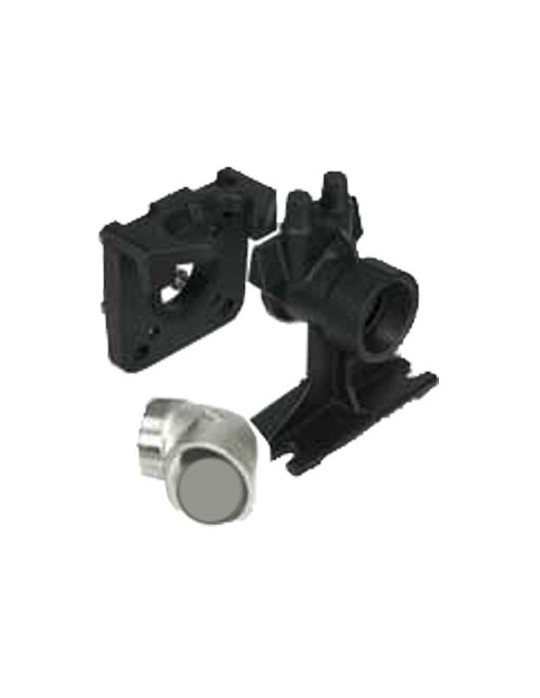

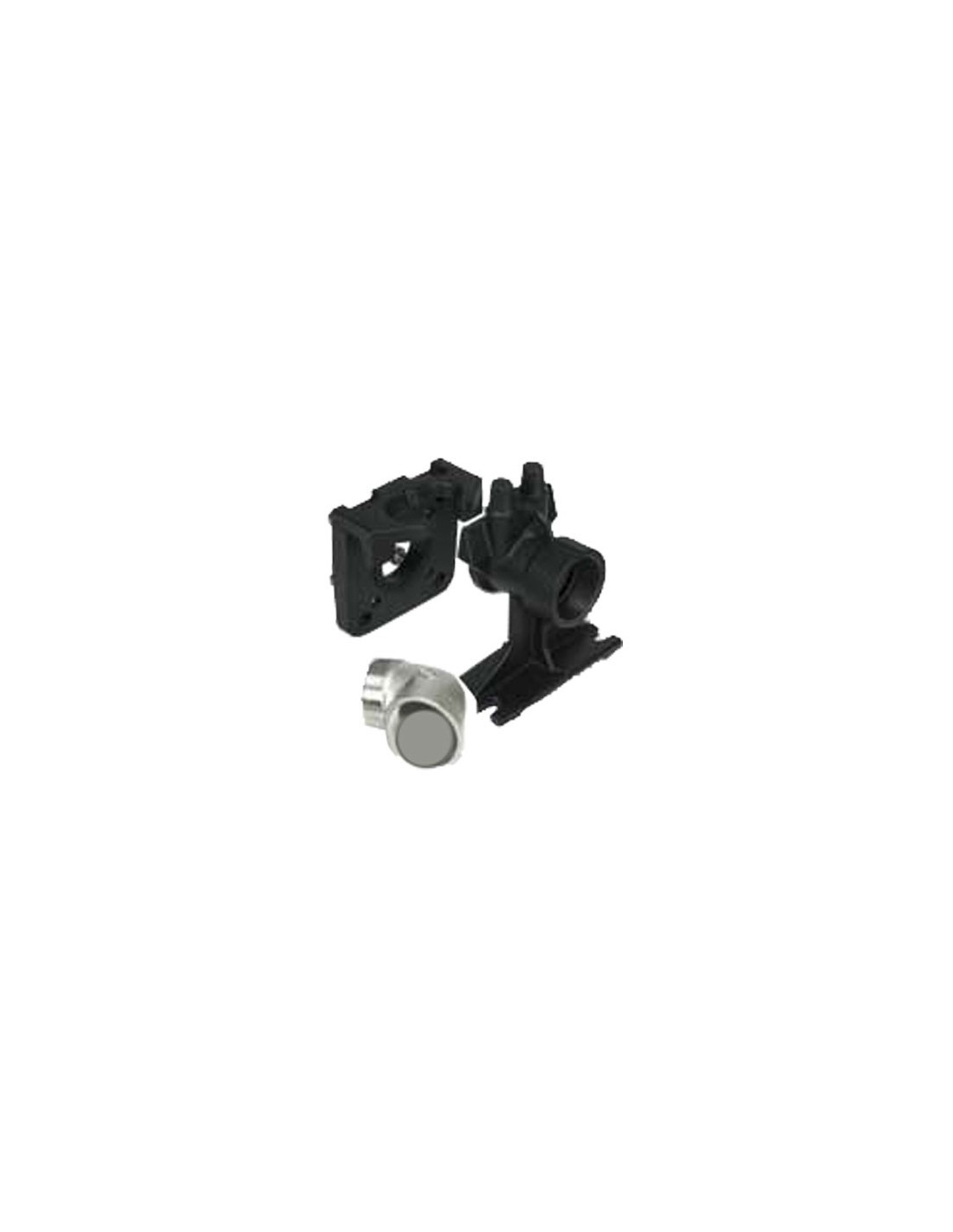

Pied d'assise en fonte sortie horizontale DAC 32-50/G50H

Straight cast iron base stand for ZENIT pump coupling - DAC H

112501
Delivery 2 to 4 days
£184.19

£184.19 tax excl.

Horizontal delivery bottom coupling devices for Zenit pumps (DRN - SBN - SBP - MAN - SMN - SMP - DGO - DGN - DGP - GRN).

Model

Attributs
Image Ref. Model Unit price Avail. Buy
Straight cast iron base stand for ZENIT pump coupling - DAC H
112501 DN 32/50
£184.19
Available
Straight cast iron base stand for ZENIT pump coupling - DAC H
112502 DN 65
£256.05
Available
Straight cast iron base stand for ZENIT pump coupling - DAC H
112503 DN 80
£277.68
Available
Straight cast iron base stand for ZENIT pump coupling - DAC H
112504 DN 100
£341.17
Available
Straight cast iron base stand for ZENIT pump coupling - DAC H
112505 DN 150
£515.59
Available
Straight cast iron base stand for ZENIT pump coupling - DAC H
112506 DN 200
£659.32
Available
Straight cast iron base stand for ZENIT pump coupling - DAC H
112507 DN 250
£932.11
Available
Total: 0,0
All prices with tax included.
Available Product is available
Out of stock Product is no longer in stock
Can be back-ordered Product is no in stock, but is allowed to be back-ordered
Description

Allows ZENIT lift pumps to be coupled (DRG - SBN - SBP - MAN - SMN - SMP - DGO - DGG - DGP -  GRG).

General specifications :
- GJL-250 cast iron body.
- NBR rubber gasket.
- Epoxy-vinyl paint.
- Full bore.
- DN32-50 models with guide rail, sliding flange (STAINLESS STEEL bolts and screws included) and GAS 2” threaded elbow in STAINLESS STEEL.
- DN65÷250 models with guide rail and sliding flange (STAINLESS STEEL bolts and screws included).

Model Reference Inlet Discharge Weight
(Kg)
DAC H
32-50/
G50H		 112501 DN32
PN6/
DN50
PN10		 GAS 2" 6.5
DAC H
65/65H
112502  DN65
PN10-16		  DN65
PN10-16		 35
DAC H
80/80H 		 112503  DN80
PN10		  DN80
PN10-16		 35
DAC H
100/100H
112504 DN100
PN10-16		 DN100
PN10-16		 39
DAC H
150/150H		 112505 DN150
PN10-16		 DN150
PN10-16		 70
DAC H
200/200H		 112506 DN200
PN10		 DN200
PN10		 87
DAC H
250/250H		 112507 DN250
PN10		 DN250
PN10		 120

See the manufacturer's documentation available (above).
