Kit de sortie pompe de relevage sortie horizontale à bride

Lift pump outlet kit, horizontal flanged outlet

150256
Delivery 2 to 4 days
€255.00

€255.00 tax excl.

Set for connecting lift pumps, clear, waste and loaded water, available for lift pumps with horizontal flanged outlets DN50, DN65, DN80 and DN100.

Model

Attributs
Image Ref. Model Unit price Avail. Buy
Lift pump outlet kit, horizontal flanged outlet
150256 DN 50
€255.00
Available
Lift pump outlet kit, horizontal flanged outlet
150257 DN 65
€402.50
Available
Lift pump outlet kit, horizontal flanged outlet
150258 DN 80
€560.00
Available
Lift pump outlet kit, horizontal flanged outlet
150259 DN 100
€720.00
Available
Total: 0,0
All prices with tax included.
Available Product is available
Out of stock Product is no longer in stock
Can be back-ordered Product is no in stock, but is allowed to be back-ordered
Description

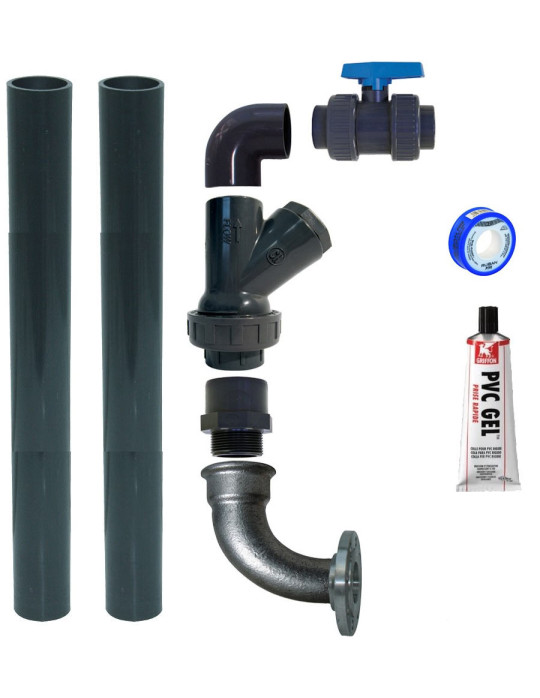

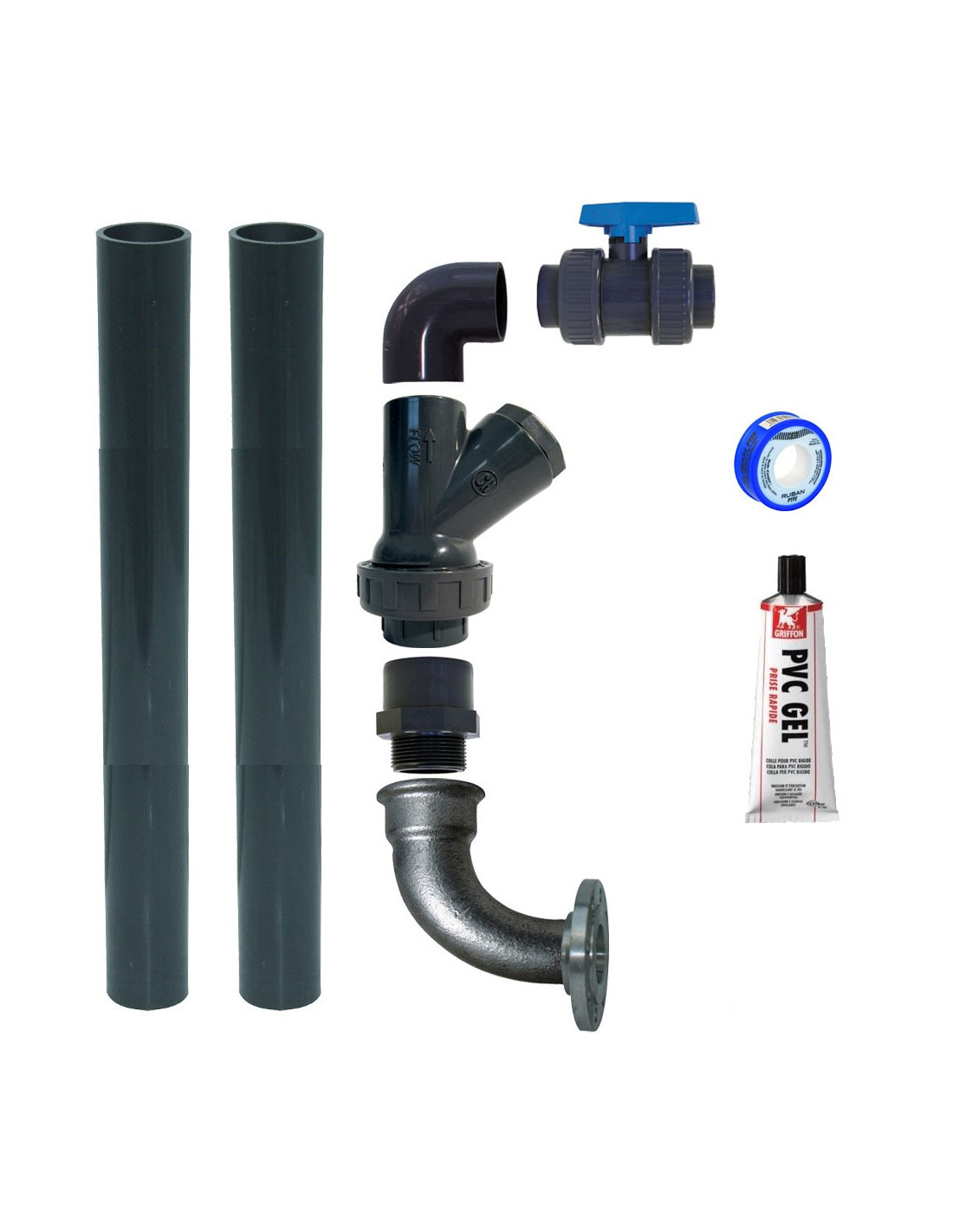

Composition of the kit:
- 1 Flat flange with centre thread in galvanised steel + EPDM flat gasket.
- 1 M/F 90° elbow in galvanised steel.
- 2x1 metre of PVC PRESSURE PN16 tube.
- 1 Solvent-weld ball check valve PN10.
- 1 PVC PRESSURE PN16 elbow.
- 1 Solvent-weld PVC valve PN10.
- 1 Connecting sleeve with external clamping for connecting PVC to polyethylene or PVC.
- 1 tube of PVC glue + 1 roll of Teflon.

Model KSPH 50 KSPH 65 KSPH 80 KSPH 100
Reference 150256 150257 150258 150259
Pump flange diameter DN50 DN65 DN80 DN100
Tube outer diameter (mm) 63 75 90 110
