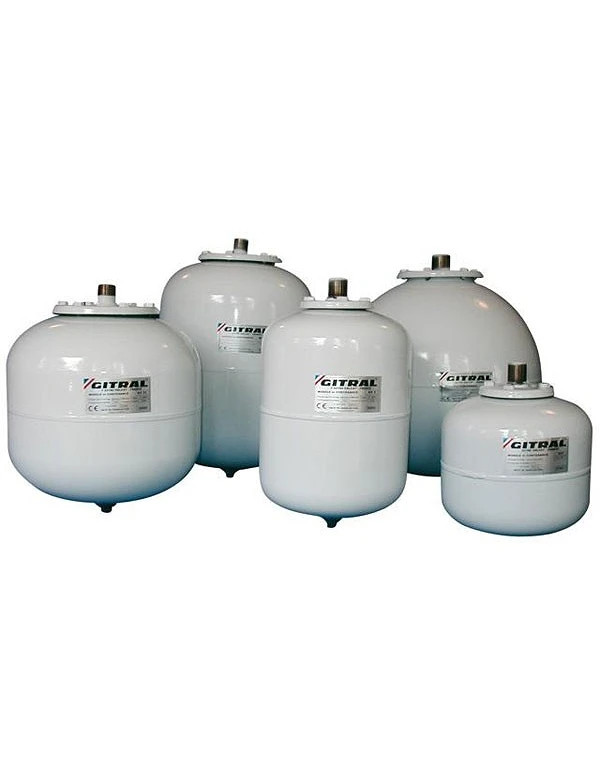

Expansion vessel for drinking water (hot or cold) HYDROCHAUD

HYDROCHAUD vessels are used for hot or cold water installations; they are particularly suited to domestic hot water networks. They absorb the increase in water volume (temperature rise or pressure increase), which eliminates the discharge of hot water through the water heater safety unit. Using a HYDROCHAUD vessel ensures constant pressure and hot water available immediately at the tap.

The advantages of HY vessels:
- Use for storing hot or cold water
- Drinking water
- Vessels for drinking water (hot or cold)
- Pre-charge pressure: 3 bar
- Tested at 15 bar
- Operating temperatures: -10°C / +99°C
- Food-grade rubber diaphragm: BUTYL
- No contact between the water and the steel thanks to an internal layer of food-grade epoxy paint
- Prevents hot water losses
- Calorie savings
- Water savings
- Stainless steel fitting
- Identification by serial number
- Complies with standard 97/23 EC and the ACS standard
- Installation on a wall or partition using the KHY mounting kit (except model HY 25)
- Installation possible with an isolation valve (ref. CAI03 and CAI03P to make it easier to remove the vessel without draining the installation.
- Vessel colour: White

Which HYDROCHAUD vessel should you choose?

Reminder : Under no circumstances can the HYDROCHAUD vessel act as a water hammer arrester.

Installation example:
