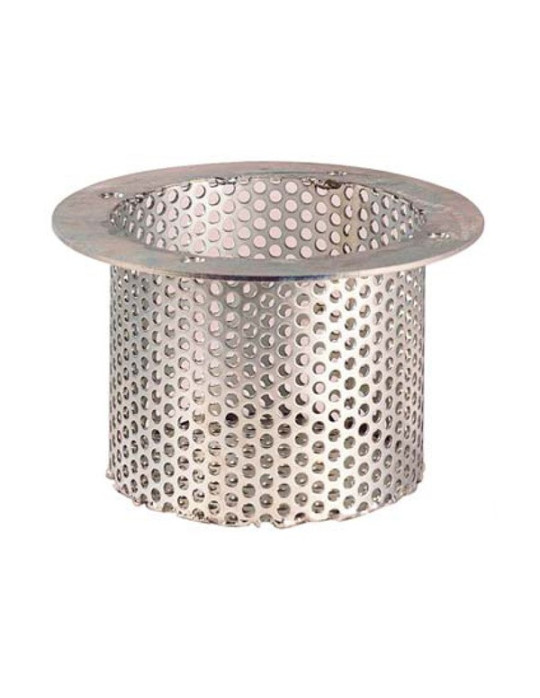

Crépine inox 304 raccordement sur bride GN10/16

Stainless steel strainer AISI 304 for connecting on GN10/16 flanges

Reference 120149

Delivery 6 to 10 days

€187.50

€187.50 tax excl.

Read the review

Average rating: 9/10 Number of reviews: 1

Stainless steel strainer for flanges ISO PN10/16 16 bars, basket with mesh to 6mm.

Model

Attributs

Image	Ref.	Model	Unit price	Buy
	120149	DN 50	€187.50	Sum.:
	120150	DN 65	€251.67	Sum.:
	120151	DN 80	€306.67	Sum.:
	120152	DN 100	€346.67	Sum.:
	120153	DN 125	€389.17	Sum.:
	120154	DN 150	€439.17	Sum.:
	120155	DN 200	€610.00	Sum.:
	120157	DN 250	€800.00	Sum.:
	120159	DN 300	€952.50	Sum.:
Total: 0,0 All prices with tax included.

Product is available
Out of stock

Product is no longer in stock
Can be back-ordered

Product is no in stock, but is allowed to be back-ordered

Description

Stainless steel strainer AISI 304 for connecting on GN10/16 flanges :

Specifications :
- For flanges ISO PN10/16
- Mesh 6 mm
- With bolting

Use :
- For water distribution and draining
- Min Temperature Ts : - 20°C
- Max Temperature Ts :+ 200°C
- Max Pressure PN : 16 bars

Range :
- Galvanized carbon steel strainer basket, for ISO PN10/16
- SS 304 strainer basket, for ISO PN10/16 flanges from DN50 to DN 300

Ø nominal	Reference	PN (bar)	Flange GN	Mesh (mm)	H (mm)	Ø A (mm)	Ø D (mm)	Ø K (mm)	Weight (Kg)
50	120149	16	10/16	6	77	91	158	125	0.426
65	120150				100	127	180	145	0.746
80	120151				125	127	180	160	0.858
100	120152				142	164	212	183	1.096
125	120153				166	180	240	210	1.432
150	120154				200	212	268	240	1.796
200	120155		10		300	255	318	285	2.527
200	120156		16		300	255	318	285	2.527
250	120157		10		380	330	395	362	4.500
250	120158		16		380	330	395	362	4.500
300	120159		10		410	380	415	415	5.386
300	120160		16		410	380	415	415	5.386

Stainless steel strainer AISI 304 for connecting on GN10/16 flanges

Standards :
- Fabrication according to ISO 9001: 2000
- DIRECTIVE 97/23/CE : Products excluded from directive (article 1, § 3.2)

Product Details

Attachments

Fiche_Technique_crepine

Download (584.4KB)

Fiche_technique_crepine

Download (584.4KB)
