3 pieces stainless steel (316) check valve

120187
Delivery 3 to 5 days
€77.50

€77.50 tax excl.

3 pieces check valve all made in stainless steel for all common fluids. All position. Size from DN 10 to DN 100. Female threaded BSP cylindric with stainless steel 316 strainer, from DN 3/8“ to DN 4“

Diameter

Attributs
Image Ref. Diameter Unit price Avail. Buy
3 pieces stainless steel (316) check valve
120188 1/2"
€96.67
Available
3 pieces stainless steel (316) check valve
120190 1"
€140.00
Available
3 pieces stainless steel (316) check valve
120191 1" 1/4
€165.00
Available
3 pieces stainless steel (316) check valve
120192 1" 1/2
€218.33
Available
3 pieces stainless steel (316) check valve
120193 2"
€300.83
Available
3 pieces stainless steel (316) check valve
120187 3/8"
€77.50
Available
3 pieces stainless steel (316) check valve
120189 3/4"
€115.83
Available
Total: 0,0
All prices with tax included.
Available Product is available
Out of stock Product is no longer in stock
Can be back-ordered Product is no in stock, but is allowed to be back-ordered
Description

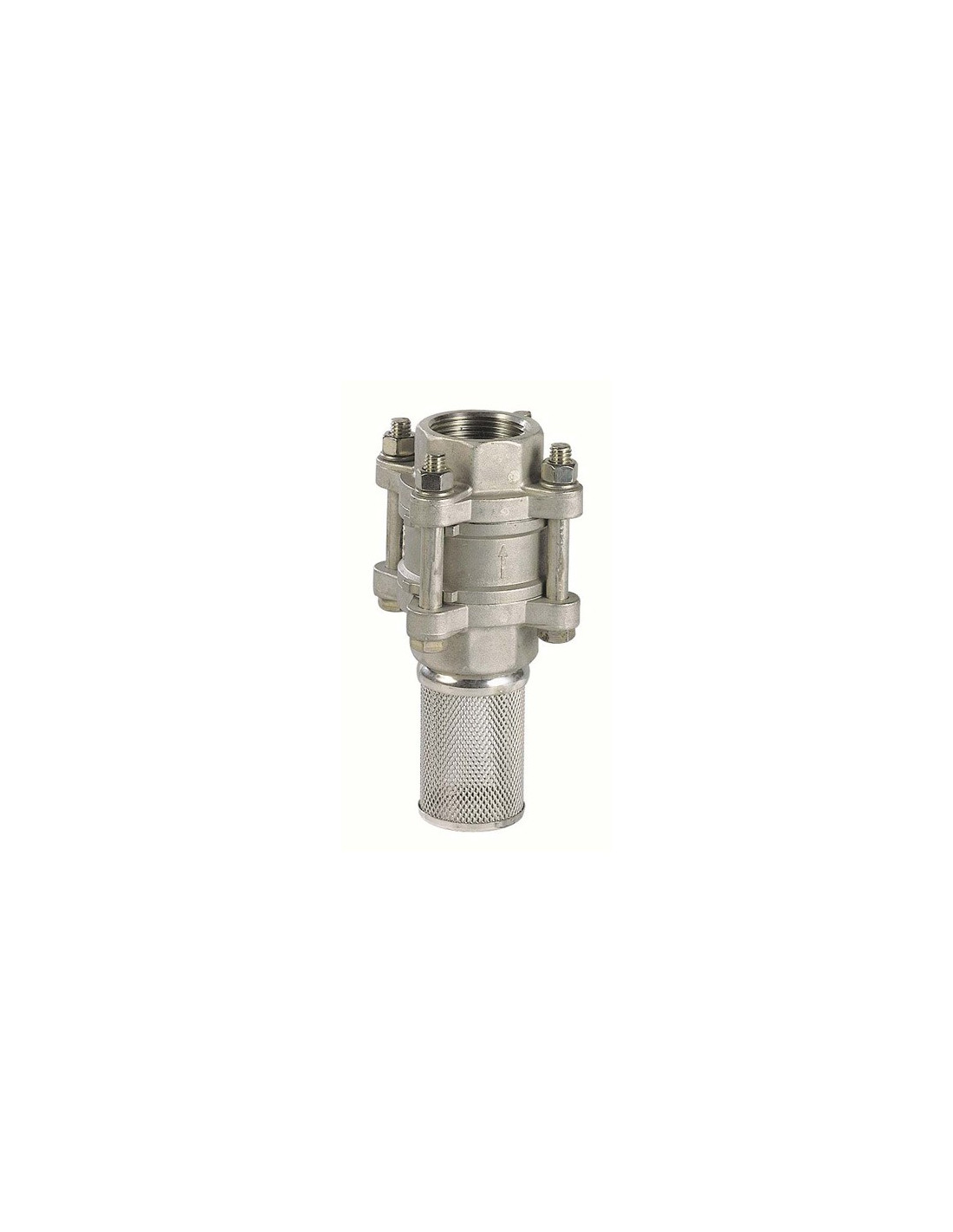

3 pieces stainless steel check valve - DN8 to DN100 - Female threaded BSP cylindric with SS316 strainer

Specifications :
- 3 pieces spring type
- All positions (respect the flow direction indicated by the arrow)
- Metal / metal tightness
- all made in stainless steel

Use :
- For all common fluids
- Min Temperature Ts : - 20°C
- Max Temperature Ts :+ 200°C
- Max Pressure PN : 63 bars

Range :
Female threaded BSP cylindric with SS316 strainer, from DN 3/8“ to DN 4“.

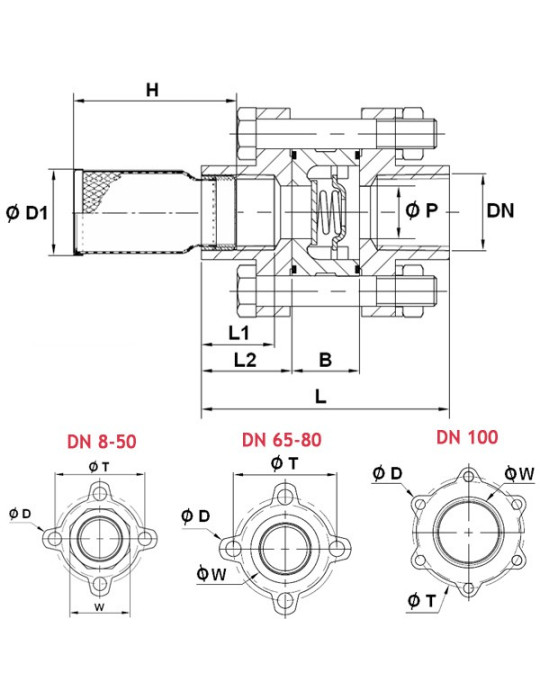

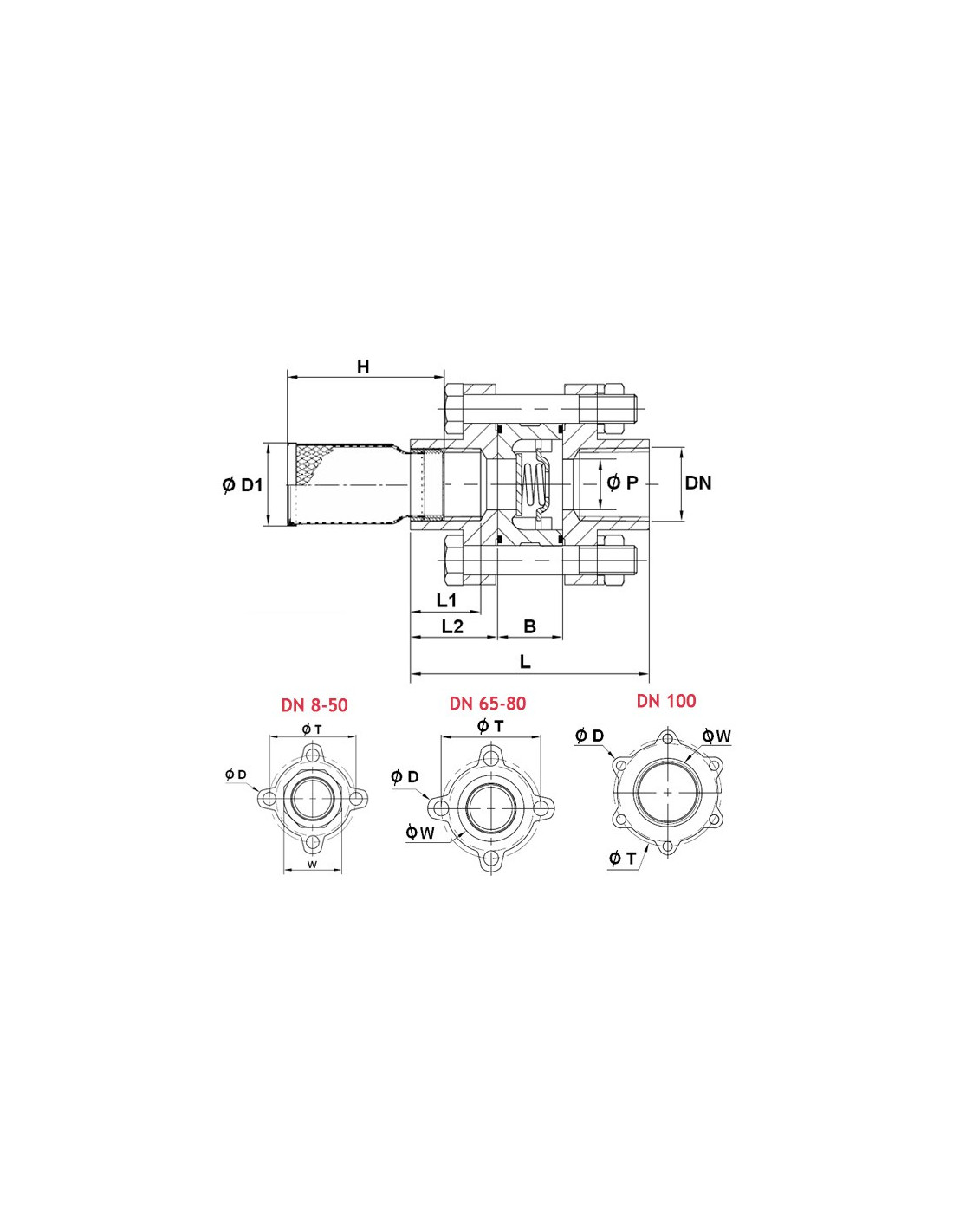

Nominal Ø
 3/8" 1/2" 3/4" 1" 1" 1/4 1" 1/2 2" 2" 1/2 3" 4"
Reference 120187 120188 120189 120190 120191 120192 120193 120194 120195 120196
Ø P 10  14  19  25  31  39  49  64  78  97
L 60  63  71  81.5  91  97.5  117  131.5  143.5  174.5
L1 16  18  20  20  23  23  27  33  35  45
L2 21  22  23.5  26  29  30  35  42  44  52
B 18  19  24  29.5  33  37.5  47  47.5  55.5  70.5
Ø D1 21  23  29  37  44  49  61  80  86  116
H 51  55  62  69  80  89  101  114  126  144
Ø D 12  14  16 18
T 36.5  42.7  51.7  58.7  72.7  83.7  98.7  129  153.5  186.5
W 22  26  32  39  49  56  69  83  100  122.5
Maille (mm) 1.2 1.5 2
Poids (Kg) 0.211  0.415  0.525  0.737  1.355  1.767  2.584  4.435  6.369  11.243



 Standards :
- Fabrication according to ISO 9001 : 2008
- DIRECTIVE 97/23/CE : CE N° 0035 - Risk category II
- Construction according to EN 12516-1
- Designing according to ASME B16.34
- Tests according to API 598, table 6
- BSP threaded cylindric ends according to ISO 228-1 and DIN 2999
- NPT threaded ends according to ANSI B1.20.1
- ATEX Group II Category 2 G/2D Zone 1 & 21 Zone 2 &22 (optional marking)
