Pompe de relevage liquides chimiques et eau de mer DRB (tri)

Bronze lift pump for slightly loaded liquids DRB T

210411
Delivery 4 to 6 weeks
£1,716.32

£1,716.32 tax excl.

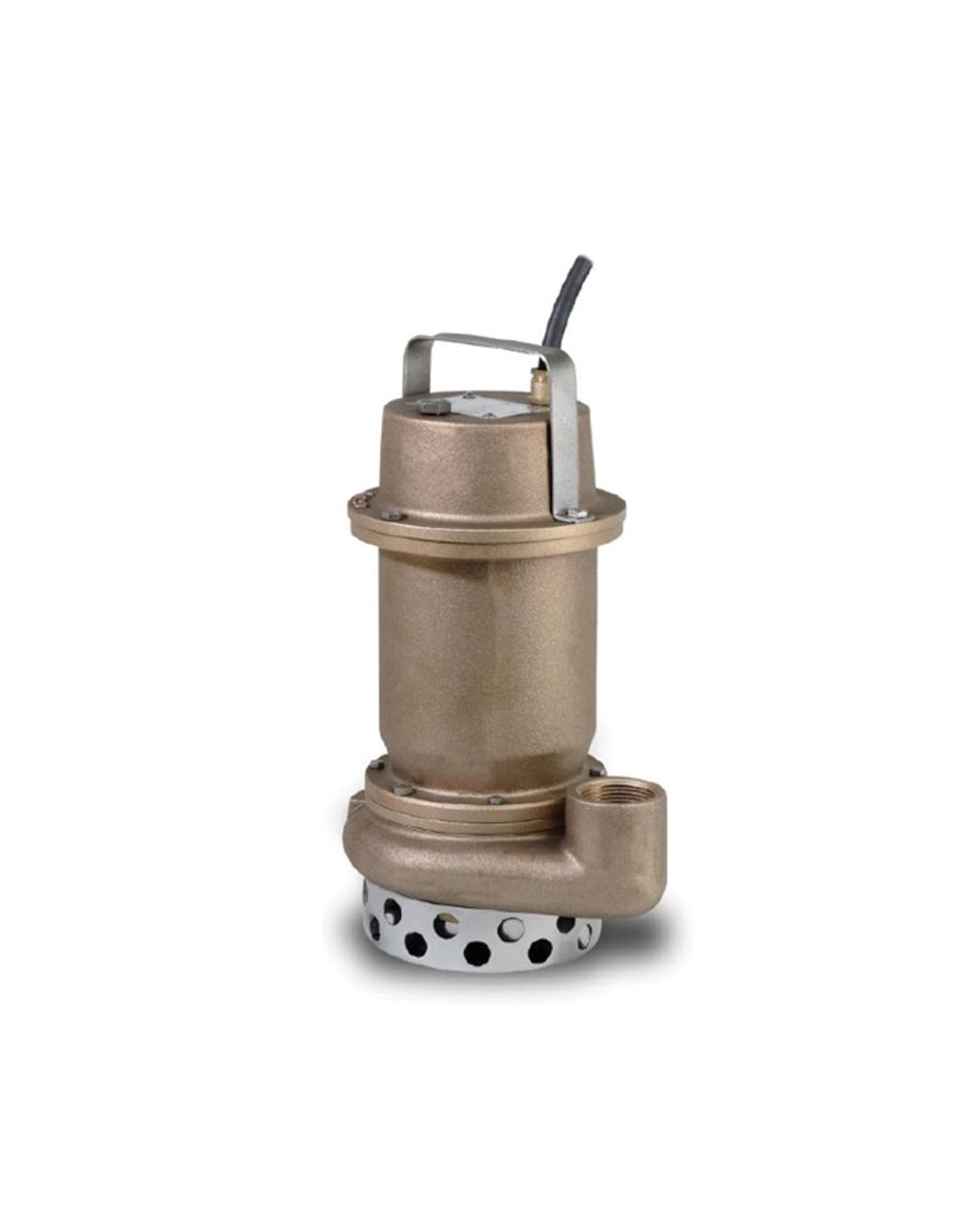

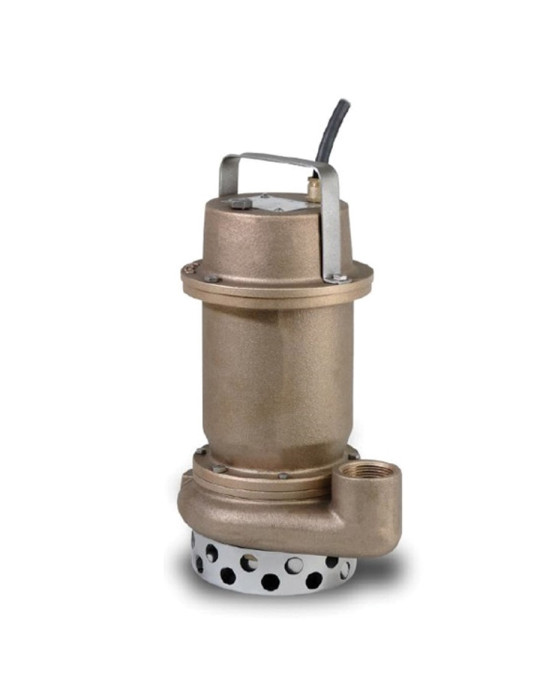

Submersible pump all B10 bronze, for clear or slightly loaded liquids, designed for pumping aggressive filtered chemical liquids, dyes, sea water, used in the leather industry and the marine sector. Three-phase supply, available from 0.37 to 1.50 Kw.

Modèles

Attributs
Image Ref. Modèles Unit price Avail. Buy
Bronze lift pump for slightly loaded liquids DRB T
210411 (1)
£1,716.32
Available
Bronze lift pump for slightly loaded liquids DRB T
210412 (2)
£2,086.79
Available
Bronze lift pump for slightly loaded liquids DRB T
210413 (3)
£2,579.36
Available
Bronze lift pump for slightly loaded liquids DRB T
210414 (4)
£2,853.55
Available
Bronze lift pump for slightly loaded liquids DRB T
210415 (5)
£2,979.13
Available
Total: 0,0
All prices with tax included.
Available Product is available
Out of stock Product is no longer in stock
Can be back-ordered Product is no in stock, but is allowed to be back-ordered
Description

Specifications:
- Motor frame and pump body in B10 bronze.
- Open multi-channel impeller in B10 bronze.
- Shaft and suction strainer in 316 stainless steel.
- Sealed by two silicon carbide mechanical seals (2SIC), lubricated in an oil chamber.
- Max operating temperature 40 °C.
- pH between 5 and 11.
- Viscosity of the treated liquid 1 mm²/s.
- Max immersion depth 20 metres.
- Liquid density 1 Kg/dm3.
- Noise 70 dB.
- Max starts per hour = 30.
- 2-year warranty.



 Model (1) (2) (3) (4) (5)
Designation DRB 50/2/G32V
A0CT		 DRB 75/2/G32V
A0CT		 DRB 100/2/G50V
A0CT		 DRB 150/2/G50V
A0CT		 DRB 200/2/G50V
A0CT
Reference 210411 210412 210413 210414 210415
Power (Kw) 0.37 0.55 0.88 1.10 1.50
Current (A) 1.1 1.4 2.3 2.7 3.5
Voltage (V) 400 - three-phase
Max. head (m) 8.6 11.9 12.2 15.9 18.0
Max flow rate (m3/h) 14.4 21.6 28.8 36.0 43.2
Min. flow rate (m3/h) 1.8 1.8 3.6 3.6 3.6
Rpm (rev/min) 2900
Discharge 1" 1/4 V 2" V
Free passage (mm) 15
Weight (Kg) 17 17 21 23 23
