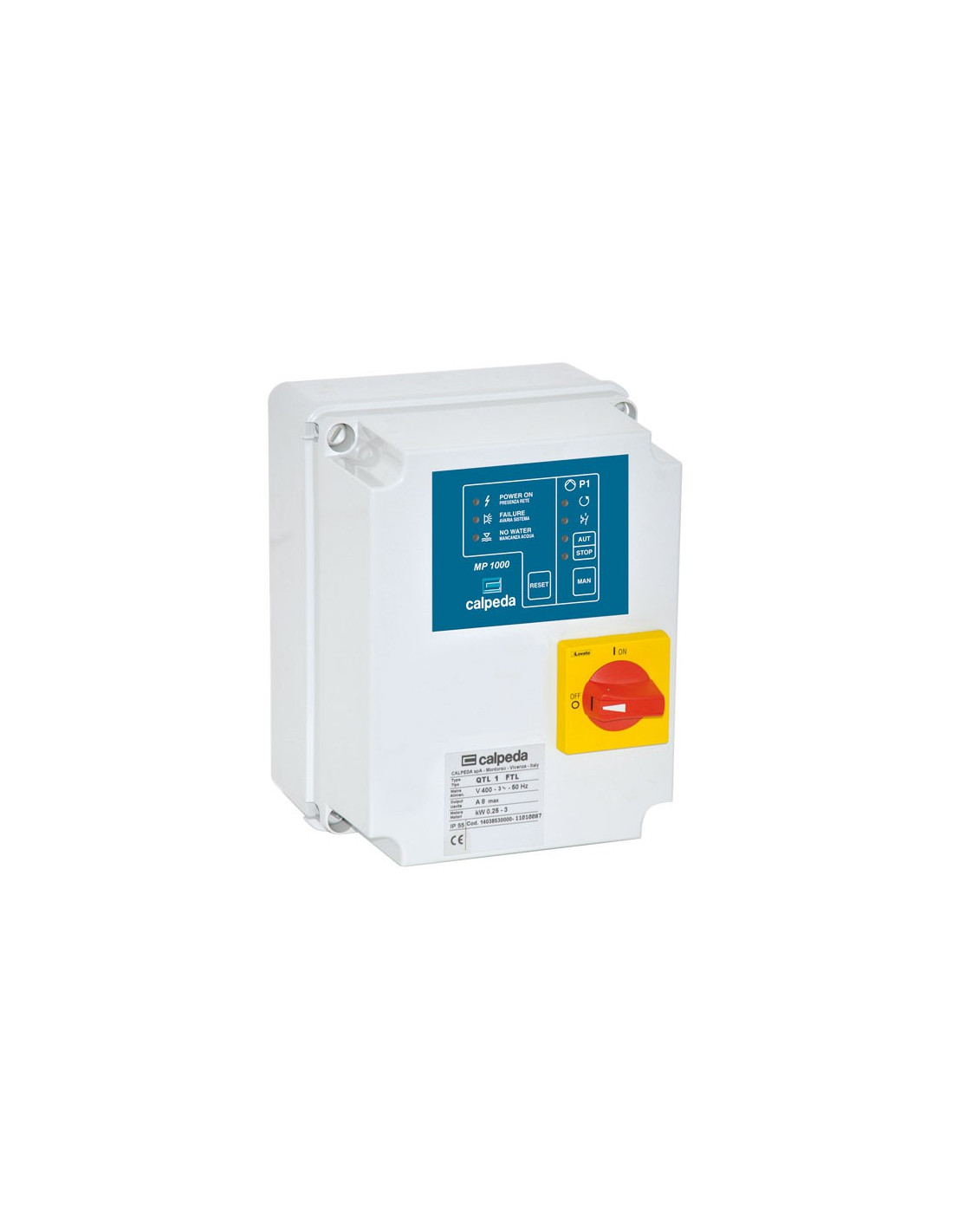

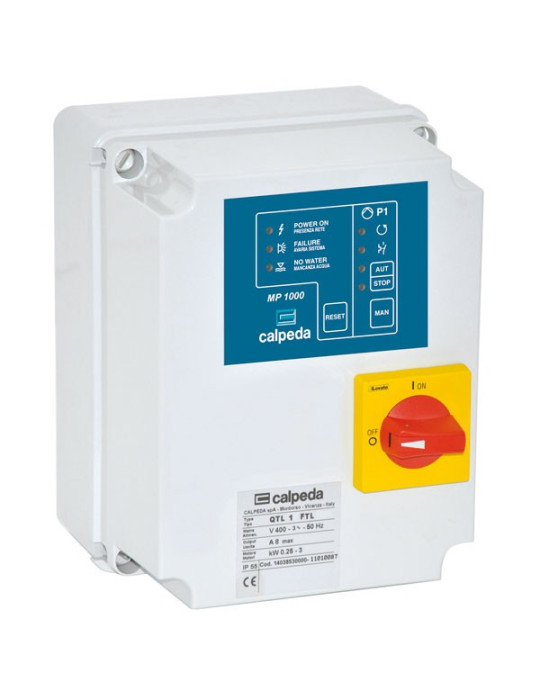

Control panel for lift pump (400V) QTLD 1D

008035
Delivery 2 to 4 days
€550.00

€550.00 tax excl.

Control and protection panel for a three-phase lift pump, adjustment from 1 to 12 A. Automatic operation with 1 or 2 level floats + 1 alarm level float (high level, overflow).

Description

Operation:
- Pump started and stopped by 1 or 2 float switches + 1 float switch for overflow alarm.

QTLD 1D panel specifications:
- 1 watertight polycarbonate enclosure, IP55.
- 1 isolator on the front panel.
- 1 current adjustment potentiometer.
- 1 power contactor.
- 1 Micro-PLC "remote control and management" with AUTO/STOP - MANUAL - RESET buttons and indicator LEDs.
- 1 connection terminal block.
- 1 diagram + technical manual.

Model Reference
Current
(A)
Voltage
(V)
Dimensions
(H x L x P)
QTLD 1D 008035 1 to 12 400 255 x 200
x 205 mm
