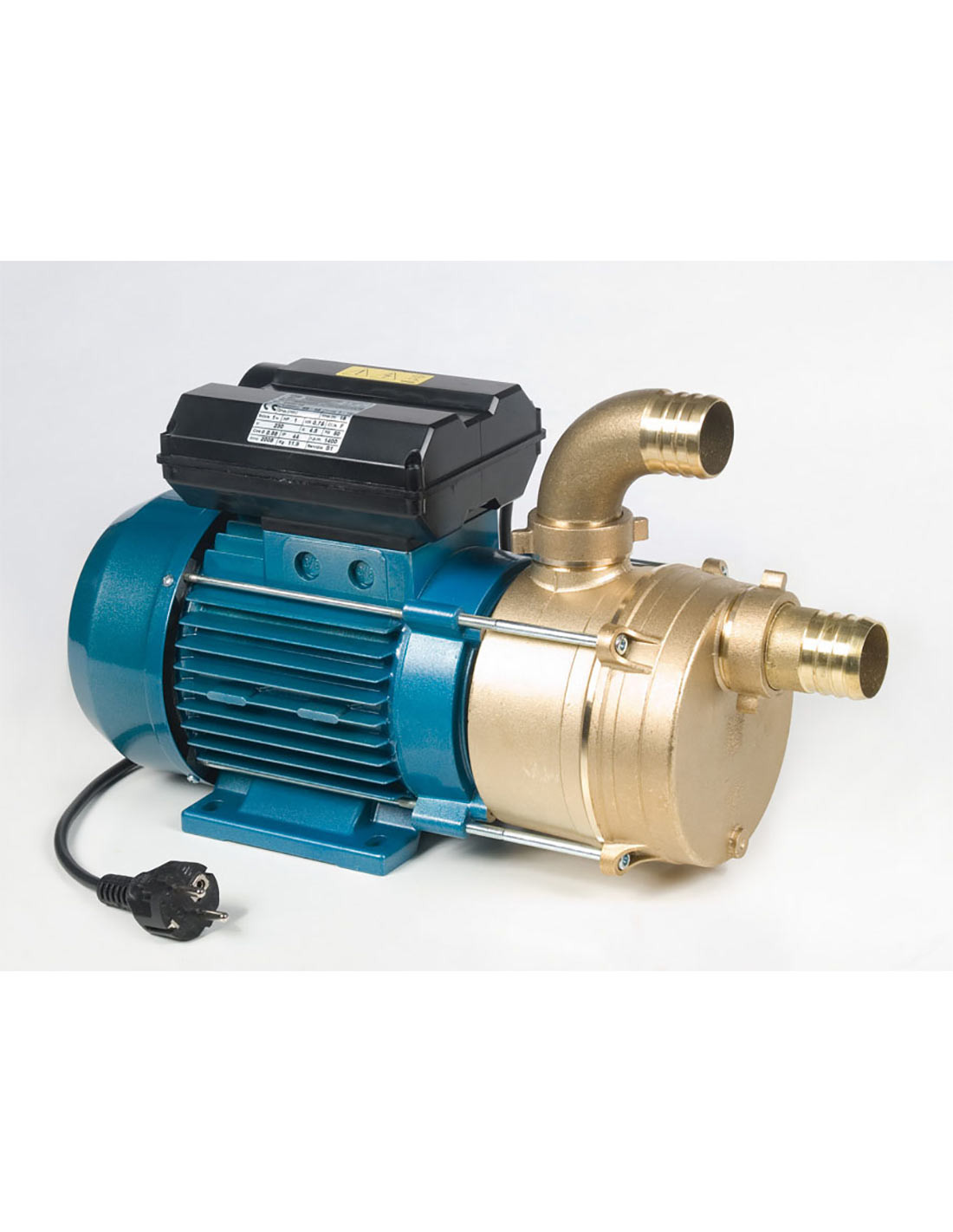

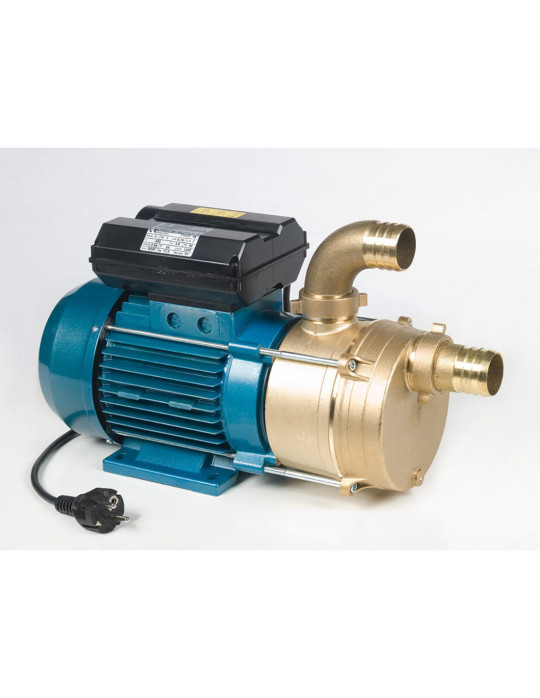

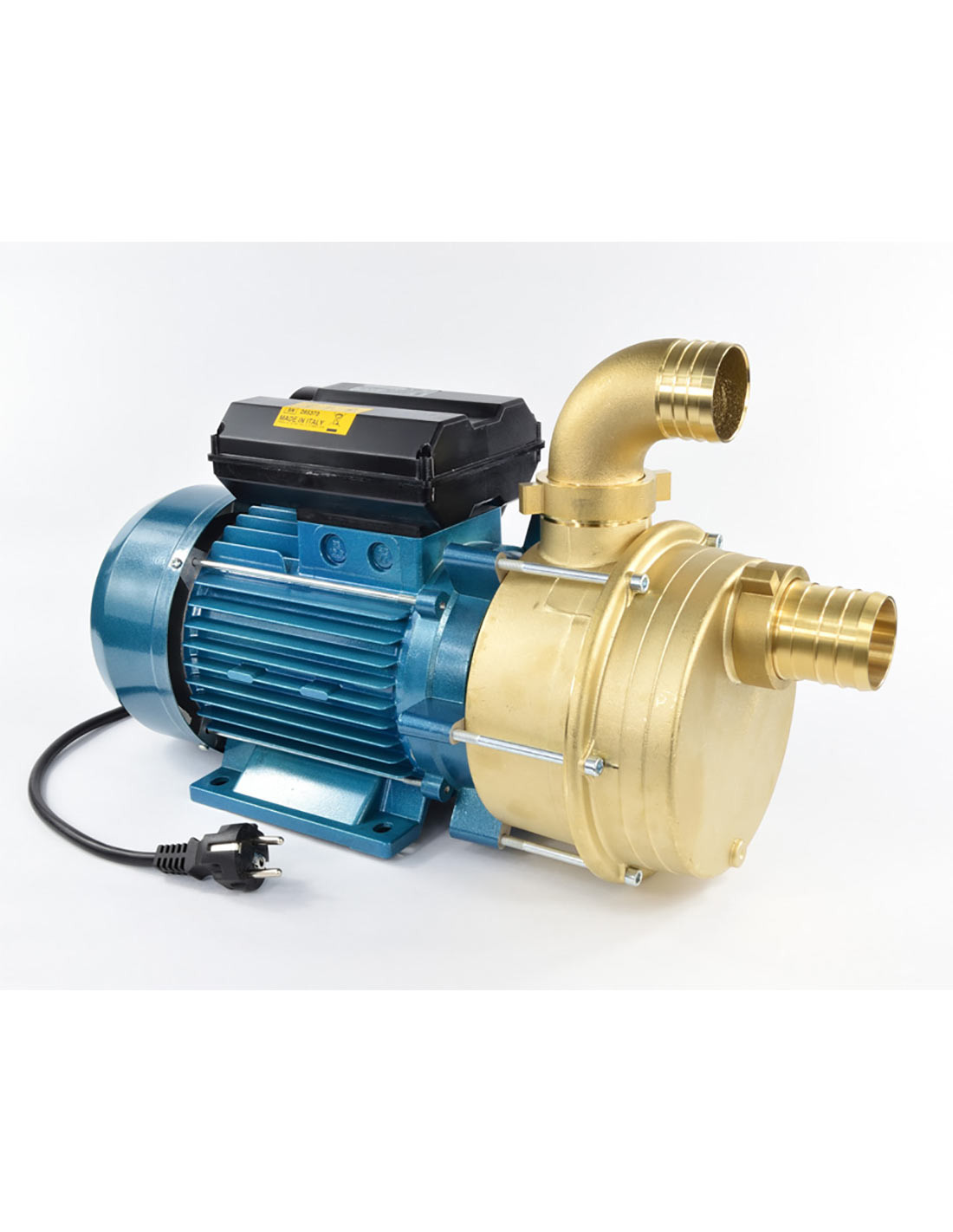

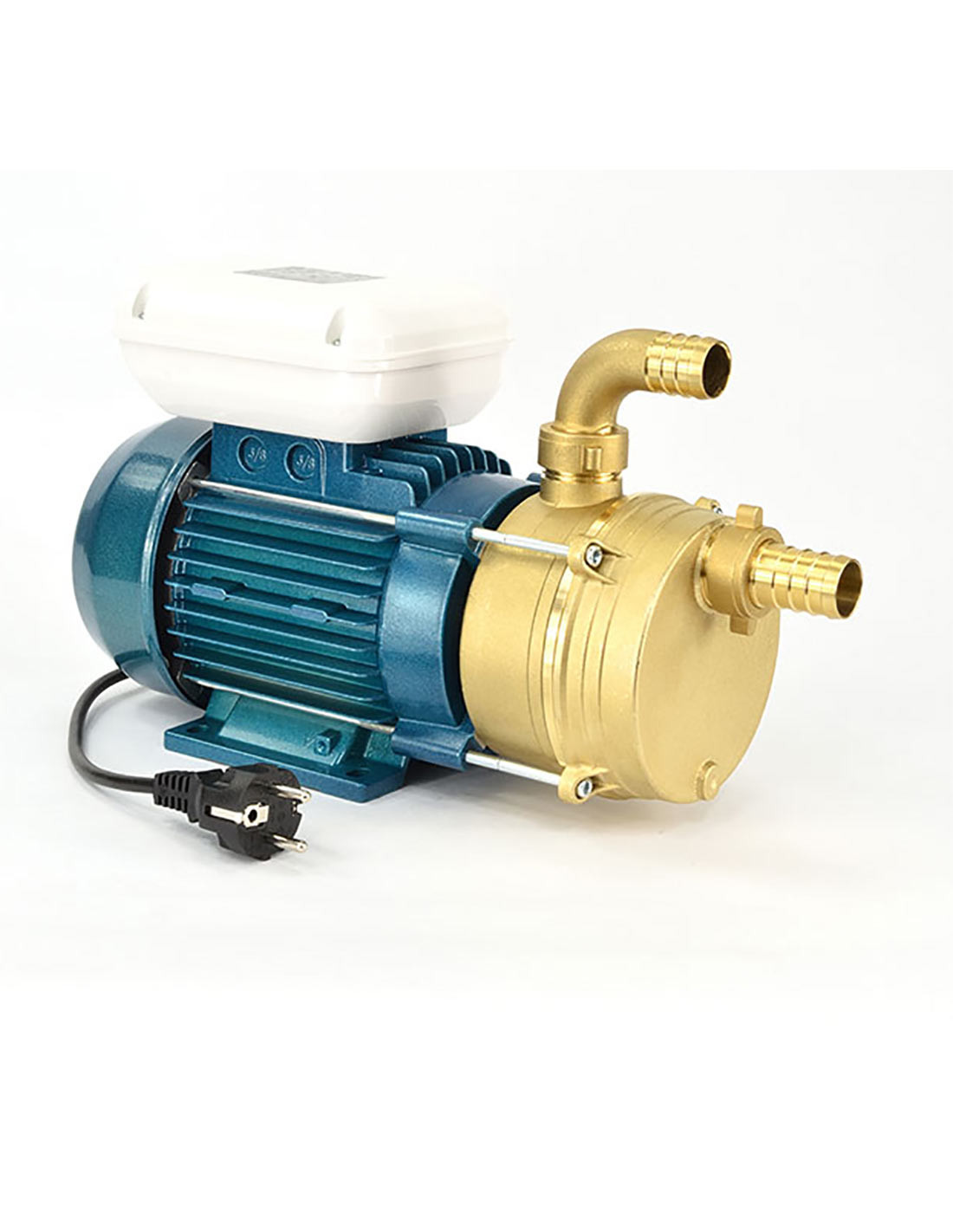

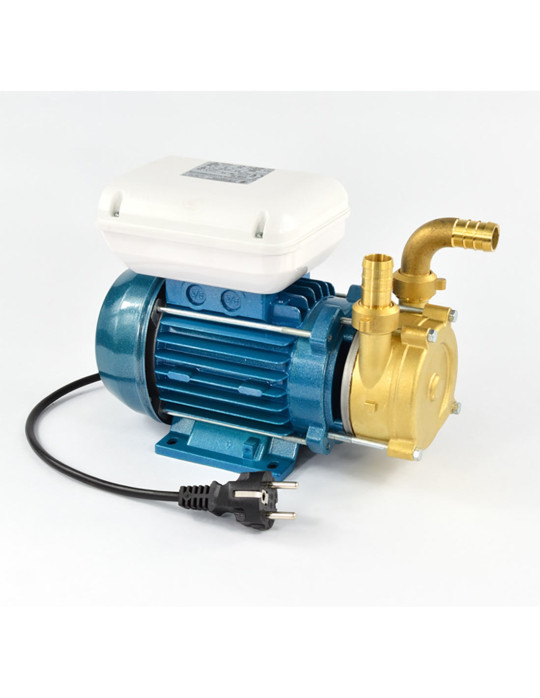

TELLARINI ENM reversible transfer pump in bronze 230V

Self-priming pump, side-channel, pump housing made in bronze, suction/transfer pump of liquids, for water, seawater, fuel, oil and fungicide. Dont' use with petrol, solvent  and in general, in places deployed in potentially explosive and fire atmospheres. The high capacity to booting of the ENM pump allow it to be the ideal solution for be used in agriculture, industry, marine... Can work in batchwise mode when liquid is present at the suction. Flow rate can be inverser. Right connection and bronze elbow connection are provide with the pump.

Use :
- Transfer and transferring of liquids (water, seawater, oil, fuel, antifreezing, glycol-water...).
- Capacity to be in presence of liquid on suction.
- Reverser to be used to change the direction of motor (reverse liquid flow).

Characteristics of Tellarini EN self-priming pump single-phase :
- Pompe housing and turbine in bronze.
- Body pump very waterproof, prevents any contact between the liquid and motor part.
- Shaft in stainless steel AISI 316.
- Temperature of liquid until +130°C.
- Temperature room until +40°C.
- Maxi. density : 1.1g/m3 (without sand particulates) & not too viscous.
- Asynchronous motor single-phase 230V.
- Level of protection : IP 44.
- Reversal of the direction of rotation by a selector 0-1-2.
- Right connection and bronze elbow provide with the pump.

- Maxi. suction heighter : 6m.
