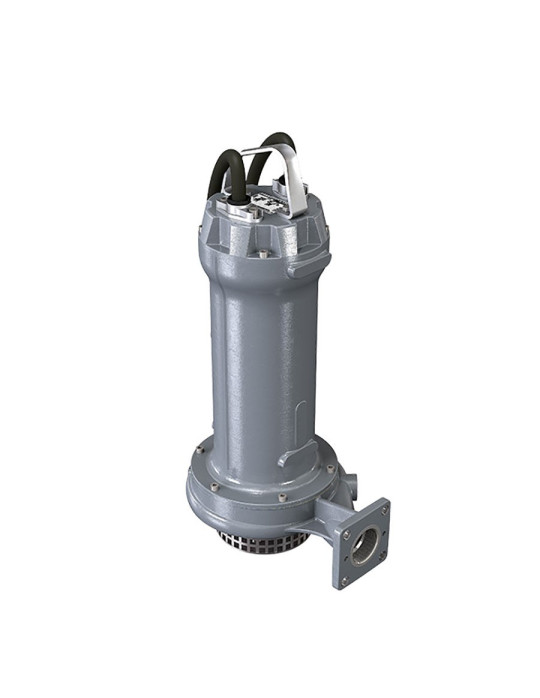

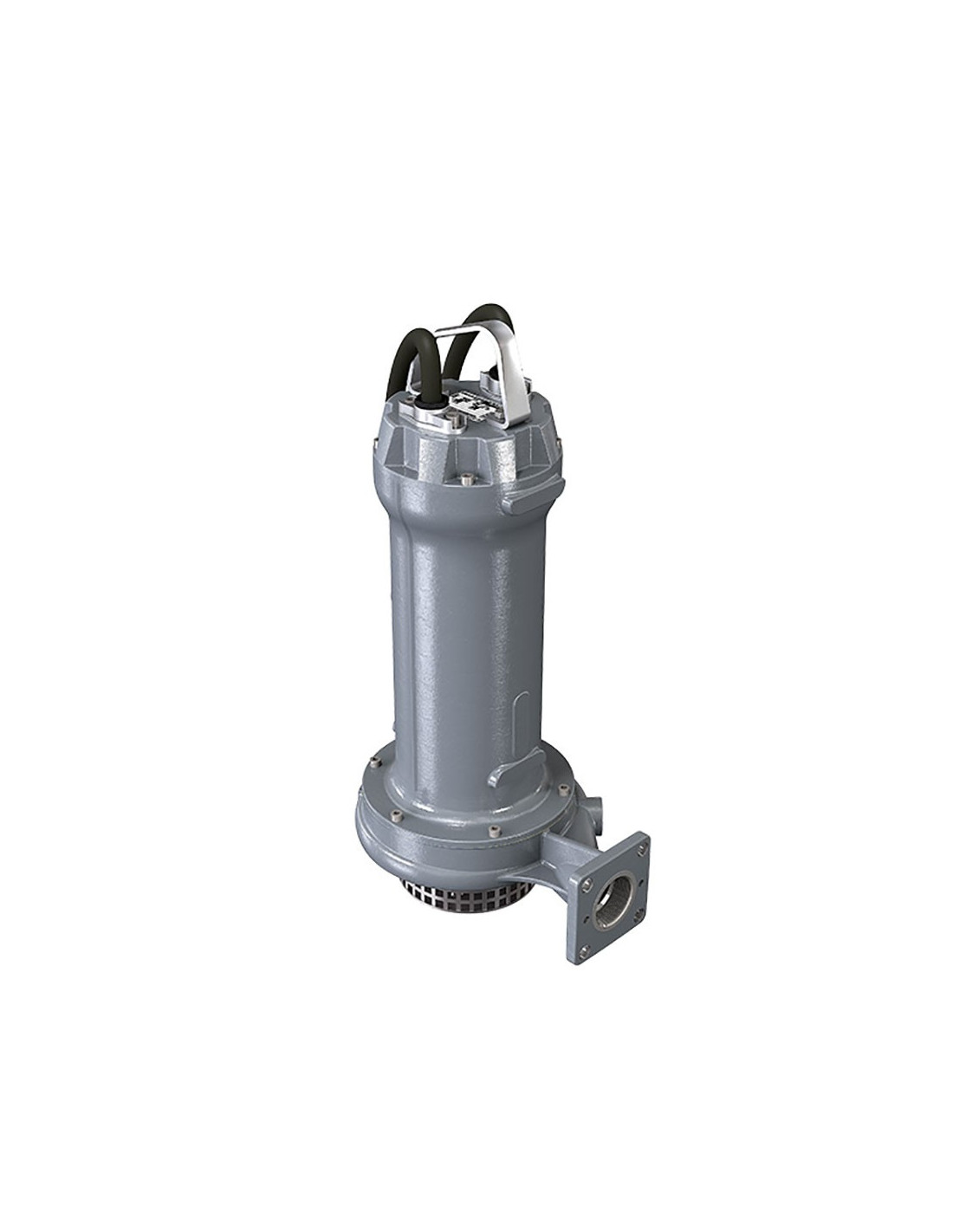

Pompe submersible grande hauteur manométrique

APG high head submersible pump

210494
Delivery 1 to 2 weeks
€1,440.00

€1,440.00 tax excl.

High head pump for clear or very slightly loaded water, cast iron construction, eco-friendly motor.

PUISSANCE

Attributs
Image Ref. PUISSANCE Unit price Avail. Buy
APG high head submersible pump
210494 1.80 Kw
€1,440.00
Available
APG high head submersible pump
210495 2.20 Kw
€1,936.67
Available
APG high head submersible pump
210496 3.00 Kw
€2,262.50
Available
APG high head submersible pump
210497 4.00 Kw
€2,953.33
Available
APG high head submersible pump
210498 5.50 Kw
€3,750.00
Available
APG high head submersible pump
210499 7.50 Kw
€4,438.00
Available
Total: 0,0
All prices with tax included.
Available Product is available
Out of stock Product is no longer in stock
Can be back-ordered Product is no in stock, but is allowed to be back-ordered
Description

Use:
- Industrial applications and car wash stations.
- Clear water in fountains and water features.
- Irrigation and fish farming.
- Discharge over long distances.

Specifications:
- Pump body and impeller made of EN-GJL250 cast iron
- Open multi-channel impeller.
- 431 stainless steel shaft.
- 2 silicon carbide mechanical seals in oil chamber.
- Dry ecological motor 2900 rpm (continuous duty) with thermal protection.
- Double-impregnated winding resistant to humidity.
- Class H insulation.
- IP 68 protection.
- Maximum liquid temperature: + 40°C.
- Maximum immersion depth: 20 metres.
- SIRN8-F power cable, length 10 metres.


Model APG 250
 APG 300 APG 400 APG 550 APG 750 APG 1000
Reference 210494 210495 210496 210497 210498 210499
Power (Kw) 1.80 2.20 3.00 4.00 5.50 7.50
Voltage (V) 400 400 400 400 400 400
Current (A) 3.7 4.6 6.4 7.7 10.8 13.7
Max. head (m) 26 29.1 32.1 38.5 45.8 53
Max flow rate (m3/h) 25.2 25.2 21.6 28.8 36.0 36.0
Free passage (mm) 10 8 8 8 10 10
Discharge F
 1" 1/2 - DN32 2" - DN32 2" - DN32 2" - DN32 2" - DN32 2" - DN32
Weight (Kg) 32.0 43.2 46.0 57.6 60.3 68.2
