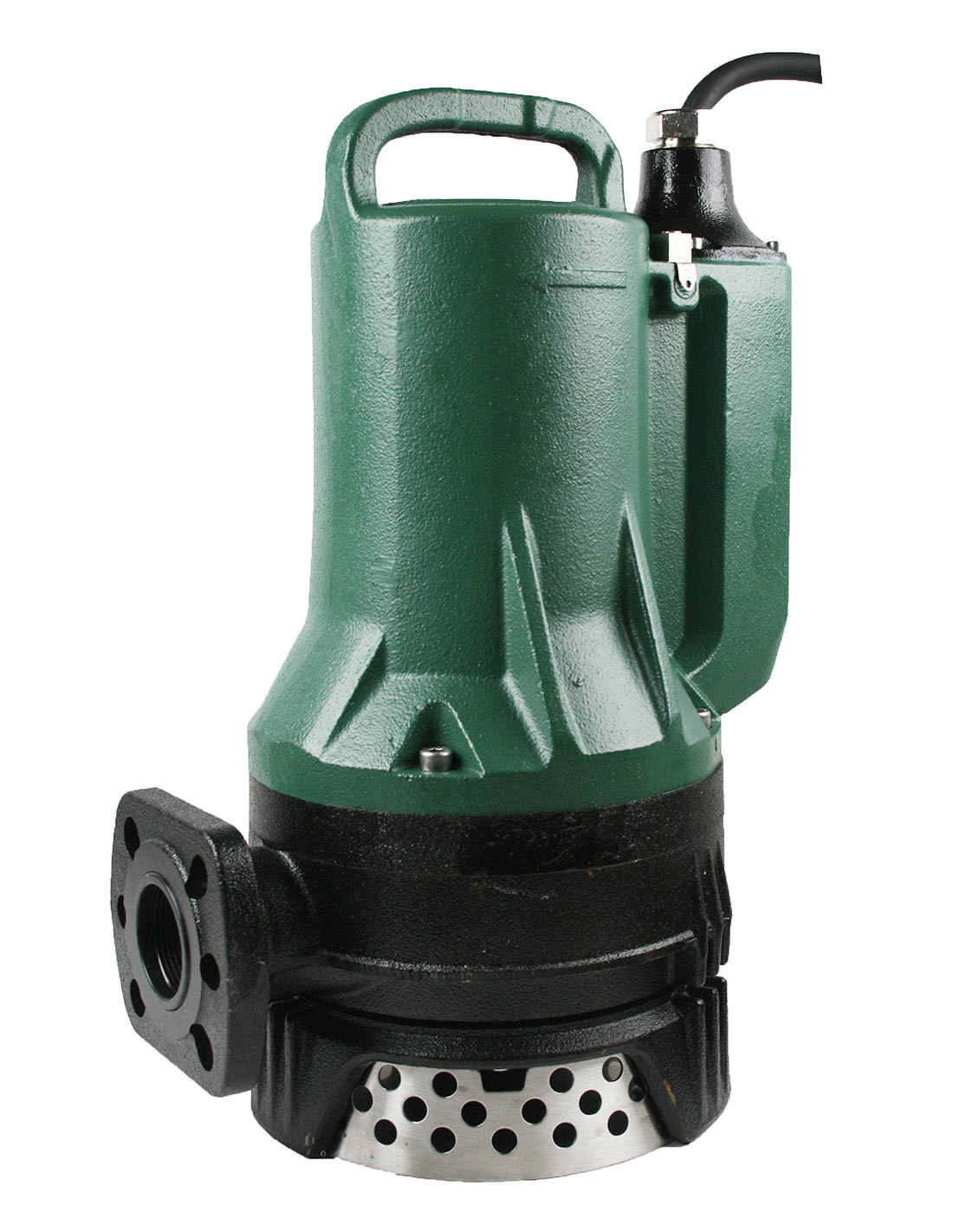

DAB DRENAG FX ATEX SUBMERSIBLE PUMPS

Uses:
- Sump emptying, pit emptying.
- Drainage of MUDDY water loaded with sand and soil.
- Drainage of foundations and excavations, emptying of basins.
- Lowering of the water table: groundwater and phreatic water.
- Portable flood response pump.

 Specifications:
- Pump body, motor body, shaft, handle and impeller in EN GJL 200 cast iron with cataphoresis treatment.
- Double mechanical seal SiC-SiC/SiC-C on the pump side and SiC/CARBON on the motor side.
- Built-in thermal protection and capacitor on the single-phase model.
- IP 68 protection, class F insulation.
- Ambient temperature: 0 °C to +50 °C.
- Maximum pumped liquid temperature up to 30°C.
- Maximum immersion depth: 20 metres.
- 20 starts per hour maximum.
- Maximum dry running time 10 minutes.
- 2-year warranty.
- ATEX certifications: II2G Ex db k IIB T4 or IEC EX: Ex db IIB T4 GbEN.
- Certifications: EN 12050-2.
