Interrupteur à flotteur ATEX
Interrupteur à flotteur ATEX
Interrupteur à flotteur ATEX
Interrupteur à flotteur ATEX

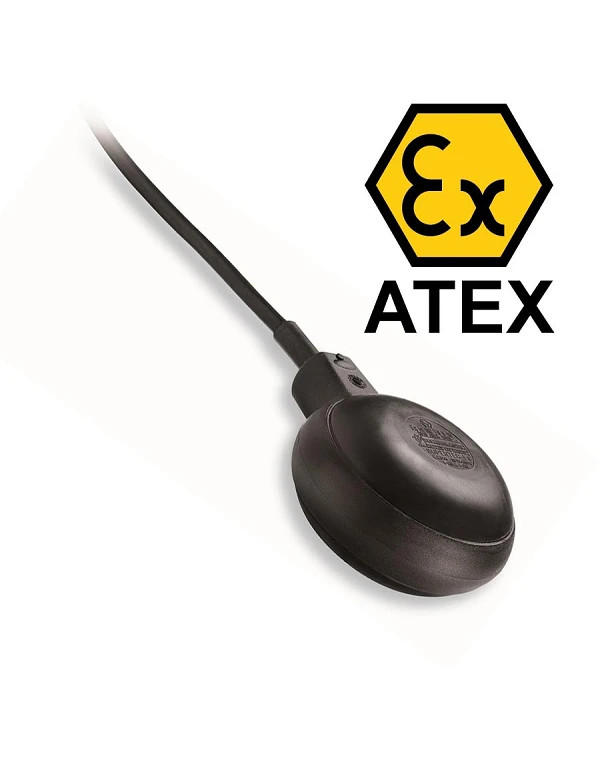

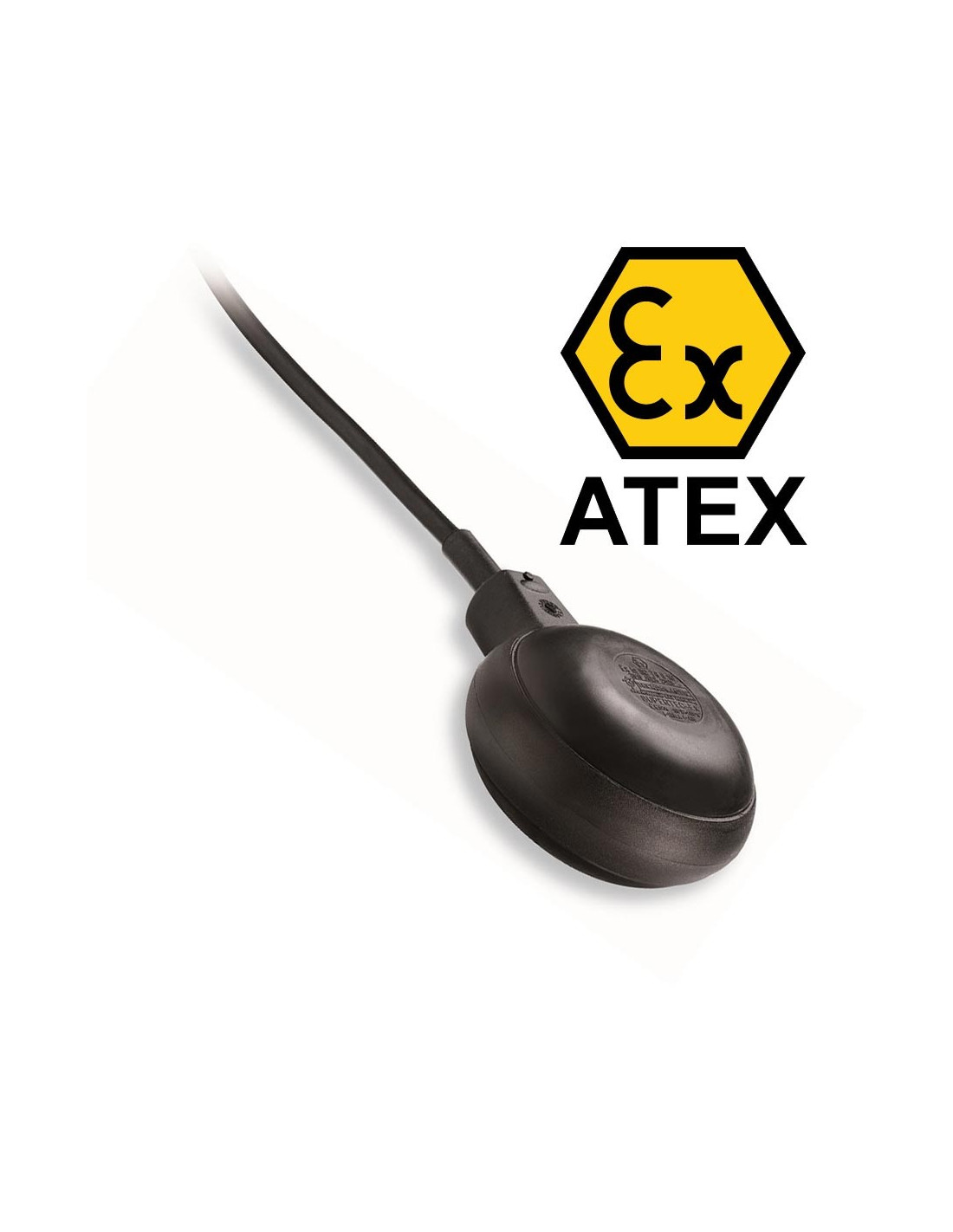

ATEX float switch SUPERTEC EX

001411
Delivery 2 to 4 days
€130.00

€130.00 tax excl.

ATEX float switch, versatile for clean liquids, waste water and industrial water, switching angle +/- 45°, ATEX II 1G Ex ia IIC T6 compliant, double-layer float, pressure resistant.

Description

Applications:
- Gas or dust explosive areas.

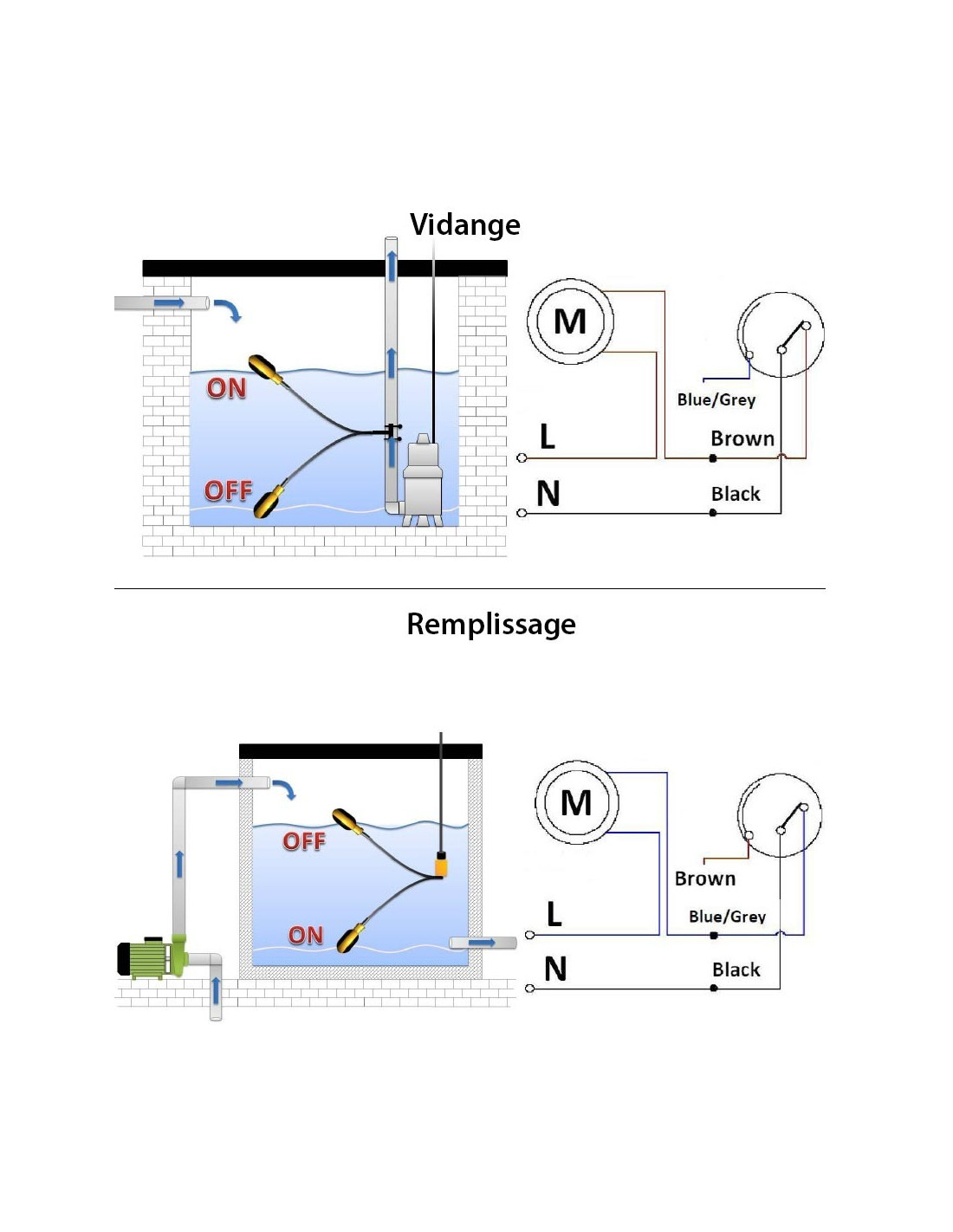

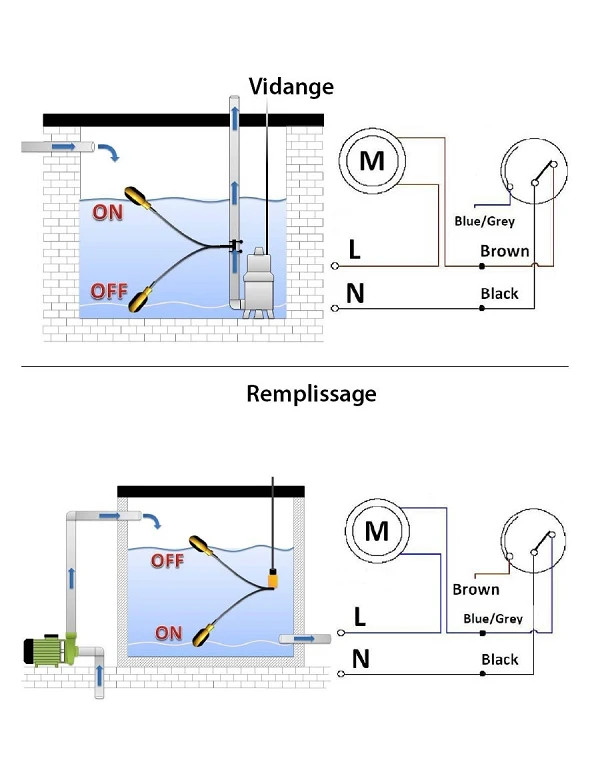

- Emptying or filling function.
- Waste water, sewage water, loaded water.
- Industrial water, polluted water.
- Functions: pump start/stop, water shortage cut-off.
- High / low alarm.

Specifications:

Model SUPERTEC EX 10
Reference 001411
Cable (m) 10
Switching angle +/- 45°
Power supply (V) 4-40 Vac / max 100 mA
Operation Dual function
electric cable
 4G0.75 mm² - RN8-F
Cable gland EPDM
Max. immersion depth (m)
 40
Operating temperature
 -20 to +80°C
Fluid density 0,80 to 1,10
Breaking capacity (A) (10A resistive - 4A inductive)
Protection rating IP68
Weight (Kg)
 300 g
Dimensions (mm)
 Height: 56 mm – Diameter: 107 mm







Product Details
Attachments
Comments
All product reviews comply with DIRECTIVE (EU) 2019/2161
