20L horizontal booster set with self-priming pump

600690
Delivery 3 to 5 days
€775.00

€775.00 tax excl.

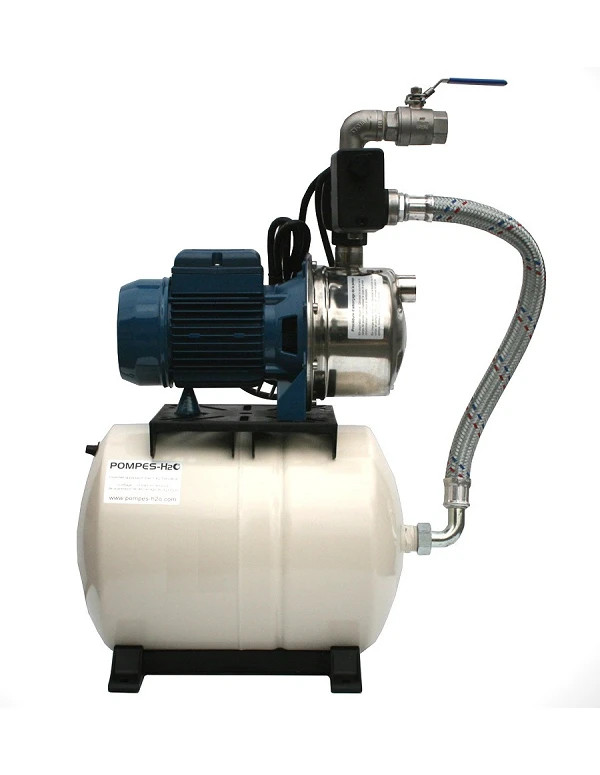

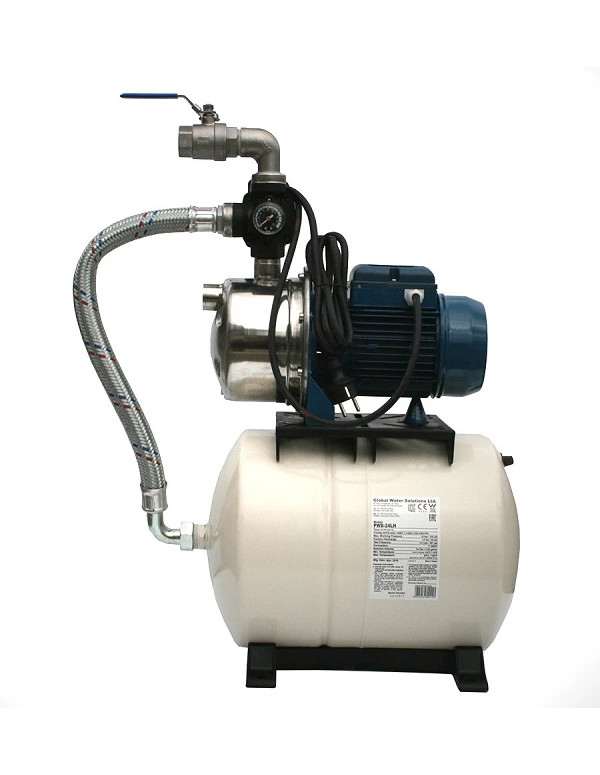

Single-phase booster set, with 304 stainless steel single-stage self-priming pump, power 0.55 kW, 20L diaphragm tank, max flow rate 40 l/min.

Description

24L booster set, for water supply to a dwelling house or a small sanitary unit, pumping from a well, the mains or a tank.

Composition:
- 1 single-stage self-priming pump, all 304 stainless steel.
- 1 horizontal 20L diaphragm tank, food grade.
- 1 Telemecanique XMP 0-6 bar pressure switch.
- 1 1" multi-way polypropylene check valve with integrated pressure gauge.
- 1 90° elbow M/F 1" in 316 stainless steel
- 1 1" 316 stainless steel ball valve M/F.
- 1 stainless steel hose, length 600 mm.
- 1 3G1.5 mm² power cable, HO7RN-F, length 2 metres + standard moulded 2P+T plug.
- Assembled, wired and tested by us.
- 2-year warranty.

Model G-NPXM 80 M
Reference 600690
Power (Kw) 0.55
Coil (V) 230 / single-phase
Flow rate (m3/h) 0 to 2.4
Pump type Self-priming
Cut-in pressure (bar) 2.2
Cut-out pressure (bar) 3.0
Max pressure (bar) 3.9
Diaphragm tank (L) 24
Weight (Kg) 22
