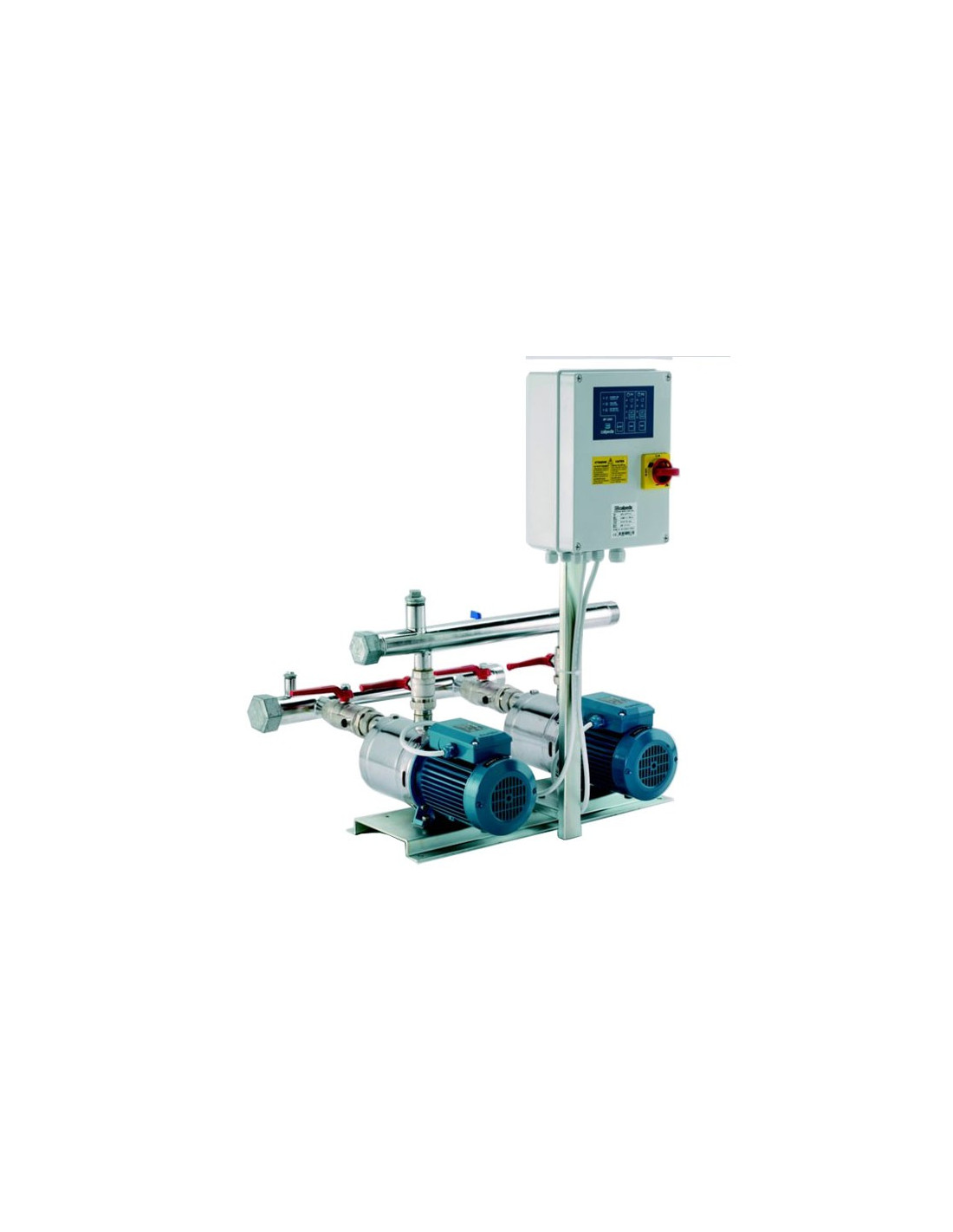

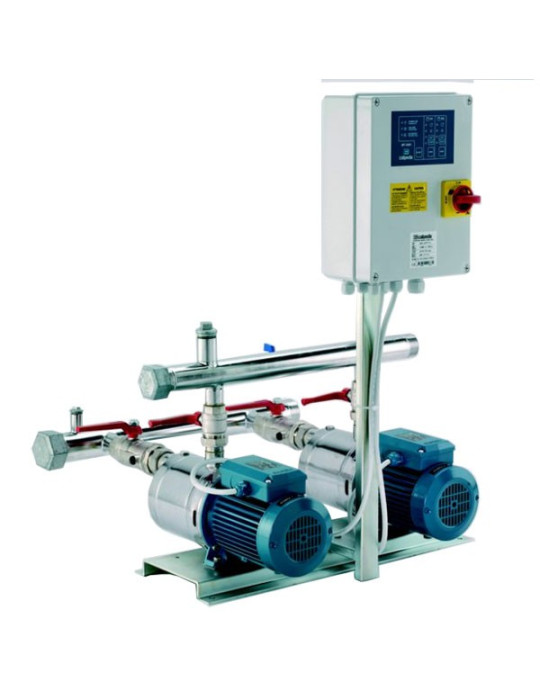

Booster set with 2 pumps on a frame, connected by stainless steel manifolds, complete assembly, delivered ready to use and pre-set.
The booster set can be installed with negative suction, or under a tank (flooded suction), or fed from the mains water supply.
Use:
- Pressurised water distribution.
- Maintaining pressure in networks.
- Collective, industrial, agricultural use...
- Washing, watering, irrigation.
Contents of the CALPEDA MXH 2-pump horizontal booster set:
- 1 omega frame (to be fixed to the floor);
- 2 horizontal multistage three-phase pumps, all stainless steel.
- 2 stainless steel manifolds.
- 2 check valves on the suction side.
- 2 valves on the discharge side.
- 1 or 2 pressure switches + 1 pressure gauge.
- 1 control and protection panel.
- 1 hydraulic assembly and cable, made in the workshop.
| Model | 2 x MXH 205 | 2 x MXH 405 | 2 x MXH 805 |
|---|---|---|---|
| Reference | 600229 | 600230 | 600231 |
| Voltage (V) | 400 | ||
| Power (kw) | 2 x 0.75 | 2 x 1.10 | 2 x 1.80 |
| Current (A) | 2 x 1.6 | 2 x 2.7 | 2 x 4.3 |
| Ø suction port (inch) | 2" | 2" | 2" 1/2 |
| Ø discharge port (inch) | 1" 1/2 | 1" 1/2 | 2" |
| Flow rate (m3/h) | 0 to 8 | 0 to 16 | 0 to 26 |
| Pressure (bar) | 1.9 to 5.7 | 1.6 to 5.6 | 2.4 to 6.0 |
| Width (mm) Length (mm) Height (mm) |
625 | ||
| 796 | 820 | 896 | |
| 840 | |||
* Single-phase version on request.
