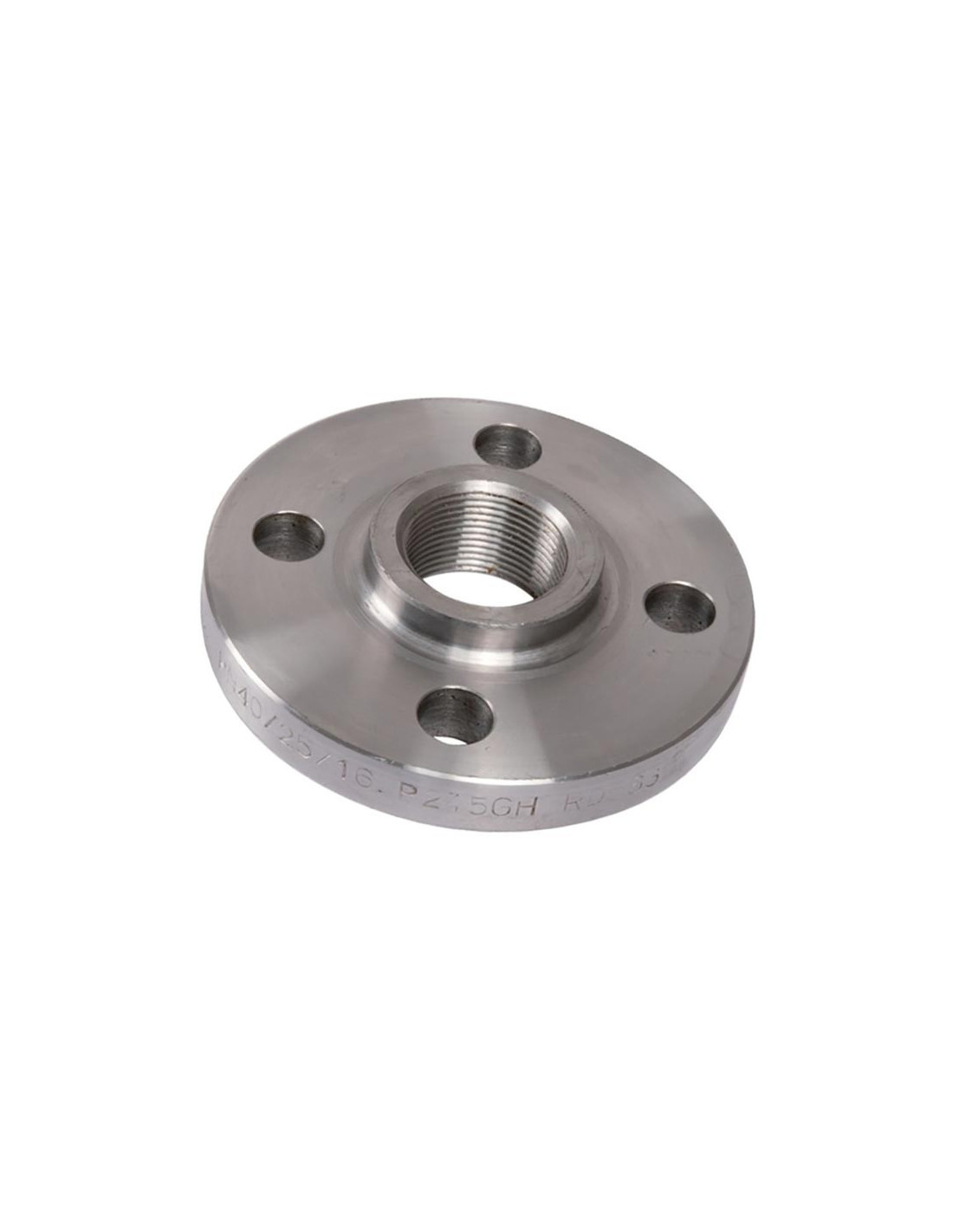

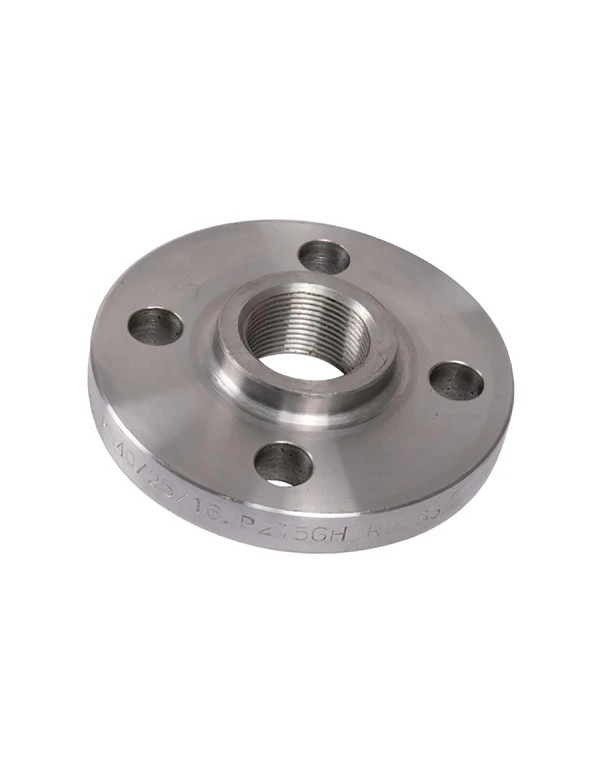

Flat flange with centre thread - Forged steel

151303
Delivery 2 to 4 days
€40.00

€40.00 tax excl.

rating Read the review
Average rating: 10/10 Number of reviews: 1

Universal forged steel flanges, tapped centre, with raised face, type 13/B1 - compliant with standard EN 1092-1 - PN10/16, Available from DN32 to DN100.

Model

Attributs
Image Ref. Model Unit price Avail. Buy
Flat flange with centre thread - Forged steel
151303 DN 32
€40.00
Available
Flat flange with centre thread - Forged steel
151304 DN 40
€50.83
Available
Flat flange with centre thread - Forged steel
151305 DN 50
€58.33
Available
Flat flange with centre thread - Forged steel
151306 DN 65
€71.67
Available
Flat flange with centre thread - Forged steel
151307 DN 80
€84.17
Available
Flat flange with centre thread - Forged steel
151308 DN 100
€102.50
Available
Total: 0,0
All prices with tax included.
Available Product is available
Out of stock Product is no longer in stock
Can be back-ordered Product is no in stock, but is allowed to be back-ordered
Description

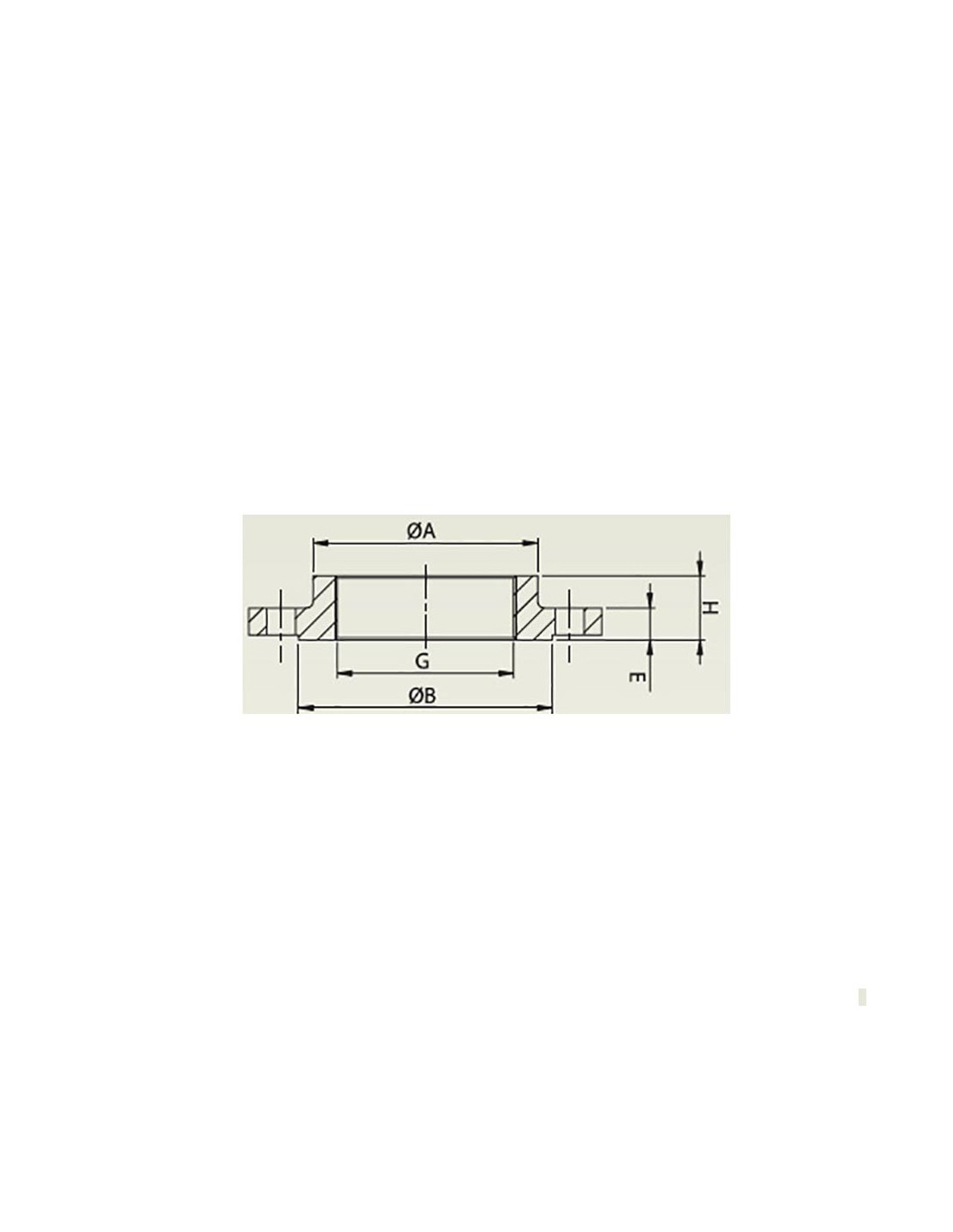

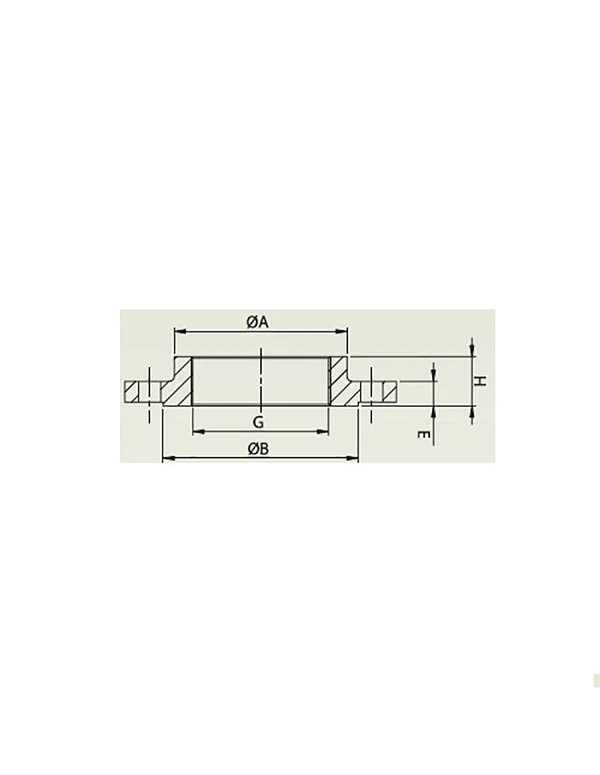

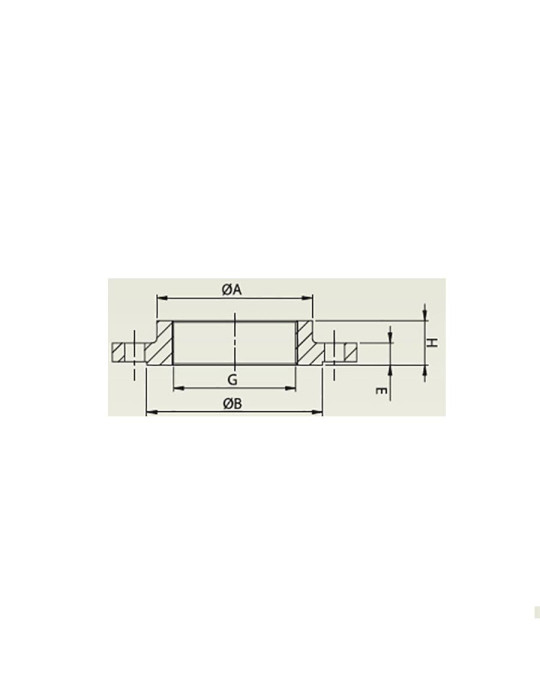

Specifications:

ModelReferenceTapping
centre		Ø A
(mm)		Ø B
(mm)		E
(mm)		H
(mm)		BoltingWeight
(Kg)
DN32 151303 1" 1/4 60 78 18 30 4 x M16 2.1
DN40 151304 1" 1/2 70 88 18 32 2.5
DN50 151305 2" 84 102 18 28 3.0
DN65 151306 2" 1/2 104 122 18 32 8 x M16 3.3
DN80 151307 3" 118 138 20 34 4.1
DN100 151308 4" 140 158 20 40 4.6

 Customs number: 713079100 - TR
