Tuyau PVC pour carburant OPAL FUEL

OPAL FUEL PVC hydrocarbon hose 25m

135010
Delivery 3 to 5 days
€120.83

€120.83 tax excl.

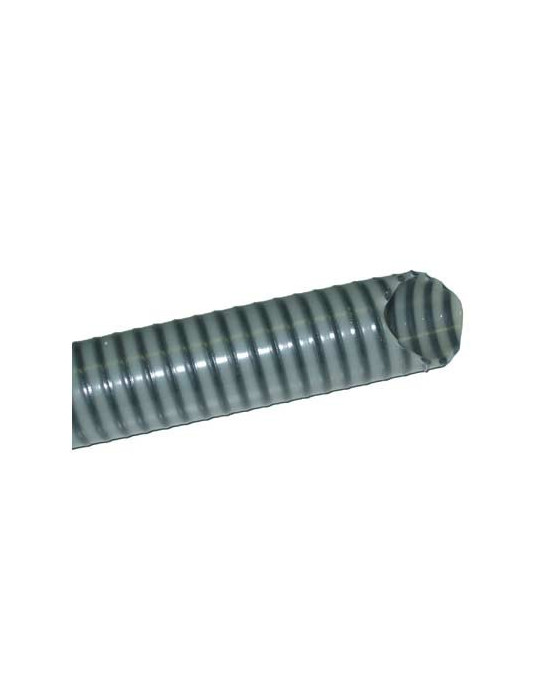

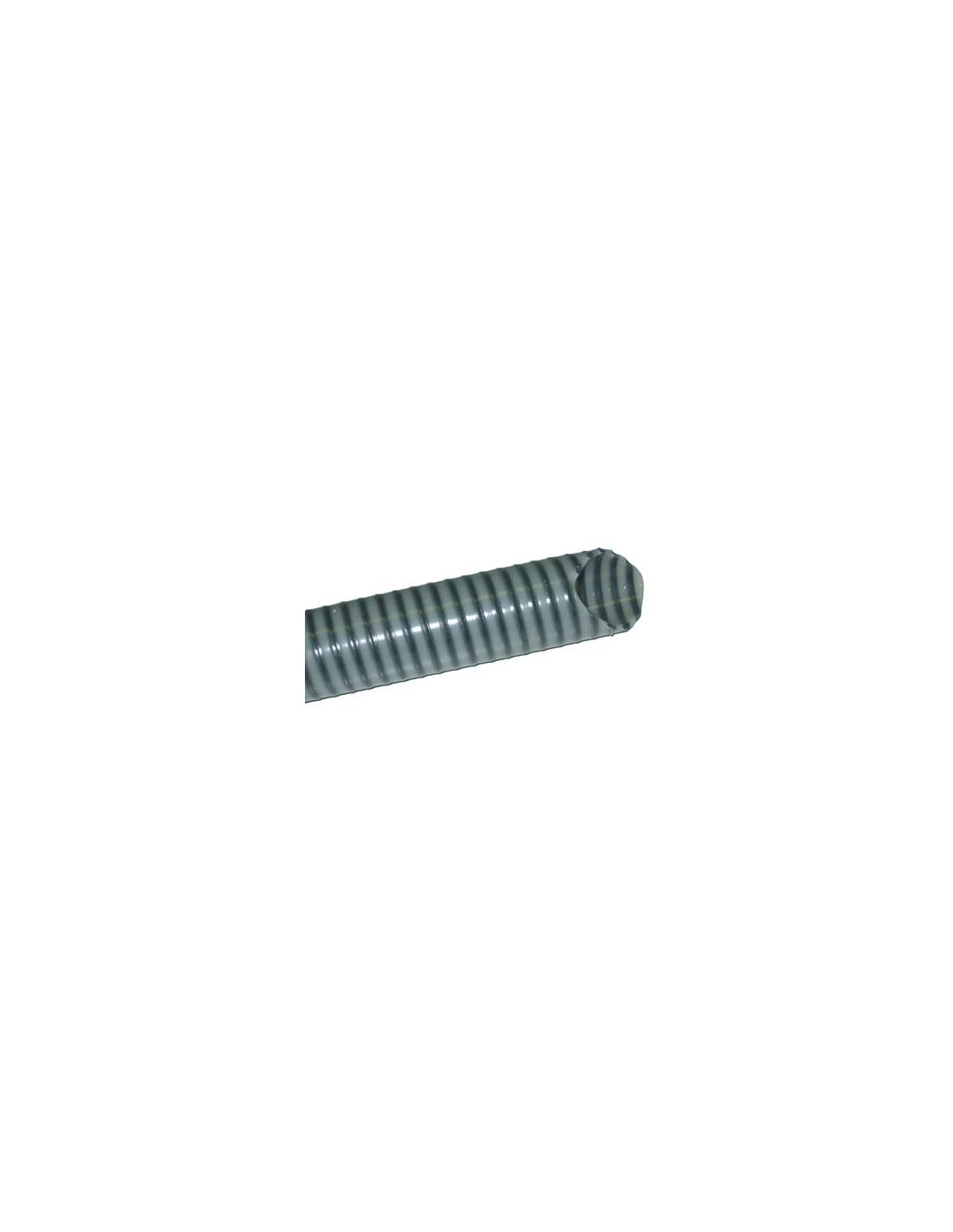

Corrugated hose reinforced with a PVC spiral, OPAL FUEL, smooth inner and outer surface, very easy to handle, flexible at low temperatures, for suction and delivery of hydrocarbons, 25 m coil.

Model

Attributs
Image Ref. Model Unit price Avail. Buy
OPAL FUEL PVC hydrocarbon hose 25m
135010 Ø int 20mm - lg 25m
€120.83
Available
OPAL FUEL PVC hydrocarbon hose 25m
135012 Ø int 25mm - lg 25m
€151.67
Available
OPAL FUEL PVC hydrocarbon hose 25m
135015 Ø int 32mm - lg 25m
€188.33
Available
Total: 0,0
All prices with tax included.
Available Product is available
Out of stock Product is no longer in stock
Can be back-ordered Product is no in stock, but is allowed to be back-ordered
Description

The OPAL FUEL hose is made of Nitrile specially for hydrocarbons, reinforced with a shockproof PVC spiral. It is completely smooth, inside & outside, and highly manoeuvrable, characterised by its flexibility even at low temperatures.

Applications :
- Suction and delivery of hydrocarbons (mineral oils, diesel, fuel oil).
- Strictly not recommended for fixed installations.

Specifications :
- Operating temperature: from -10°C to +60°C.
- Working pressure at 20°C: 3 times the working pressure.
- Resistance R < 2 x 106 Ω/m.

Int. Ø
 (mm)		Ext. Ø
(mm)		Thick.
wall
(mm)		weight
(g/m)		Ø
bend radius
(mm)		PS
to 23°C
(bar)

Vacuum
(m/H2O)

25 m
20 25.8 2.9 250 100 4 7 135010
25 30.8 2.9 310 135 4 7 135012
32 38.2 3.1 400 150 4 7 135015
