AZUR PVC hose for pumps & farming

OPALPVC hose for pumps & farming

135081
Delivery 2 to 4 days
€96.67

€96.67 tax excl.

rating Read the 2 reviews
Average rating: 10/10 Number of reviews: 2

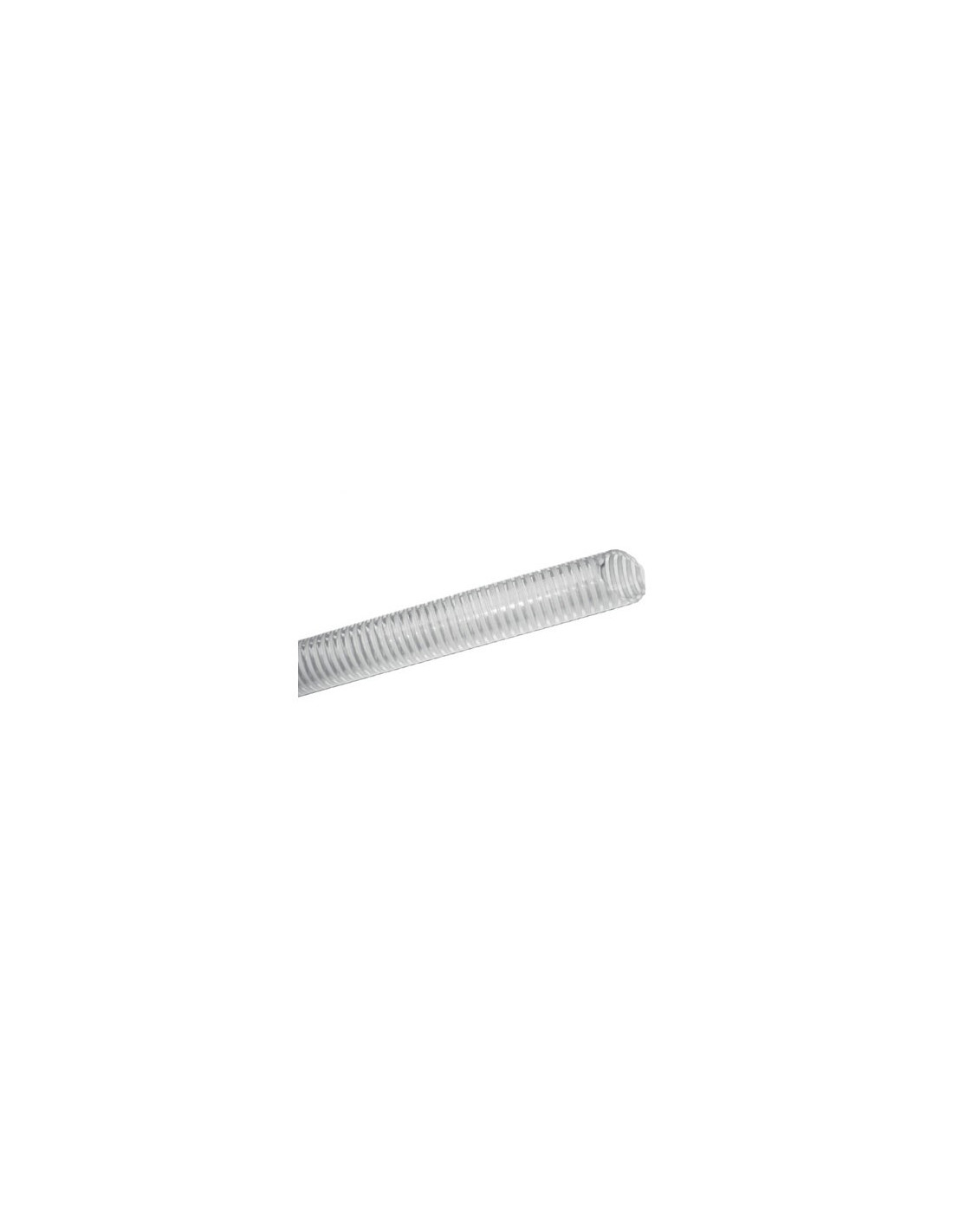

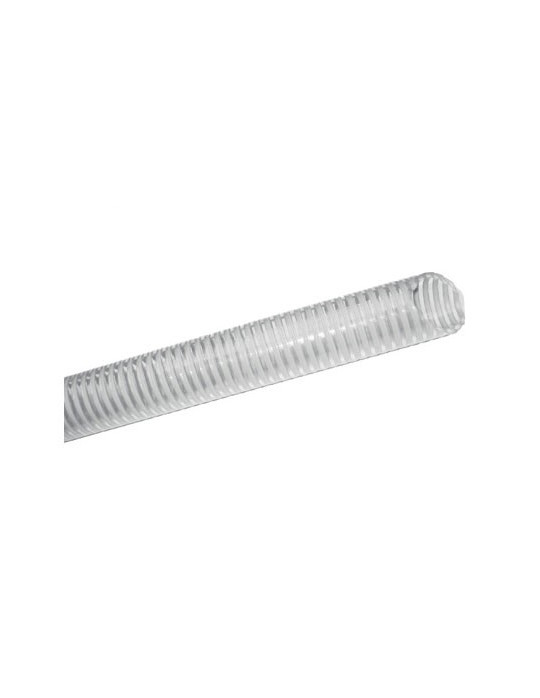

PVC plasticized hose, special for suction and pump discharge reinforced by a spiral in rigid pvc anti-shock.

Diameter

Attributs
Image Ref. Diameter Unit price Avail. Buy
OPALPVC hose for pumps & farming
135081 20
€96.67
Available
OPALPVC hose for pumps & farming
135083 25
€123.33
Available
OPALPVC hose for pumps & farming
135087 32
€170.00
Available
OPALPVC hose for pumps & farming
135089 35
€182.50
Available
OPALPVC hose for pumps & farming
135091 38
€195.83
Available
OPALPVC hose for pumps & farming
135093 40
€253.33
Available
OPALPVC hose for pumps & farming
135095 45
€265.83
Available
OPALPVC hose for pumps & farming
135097 50
€308.33
Available
OPALPVC hose for pumps & farming
135103 63
€369.17
Available
OPALPVC hose for pumps & farming
135105 70
€404.17
Available
OPALPVC hose for pumps & farming
135106 76
€450.83
Available
OPALPVC hose for pumps & farming
135107 80
€480.83
Available
OPALPVC hose for pumps & farming
135108 90
€542.50
Available
OPALPVC hose for pumps & farming
135109 102
€593.33
Available
OPALPVC hose for pumps & farming
135110 110
€637.50
Available
Total: 0,0
All prices with tax included.
Available Product is available
Out of stock Product is no longer in stock
Can be back-ordered Product is no in stock, but is allowed to be back-ordered
Description

Plasticised PVC hose reinforced with a rigid impact-resistant PVC spiral, smooth transparent inner surface, white spiral, great flexibility, even at low temperatures, safety factor 3 times the working pressure.

Applications:
- Suction and discharge of food liquids;
- Suction for surface pump, booster set.
- Transfer of water, food liquids, food products.
- Agriculture, domestic, food-processing industry.


Specifications:
- PHTHALATE-free manufacture.
- Operating temperature: from -10°C to +60°C.
- Passage of food products or liquids according to simulants A, B and C, except alcoholic solutions above 15° (approved by the IABESCO test laboratory)
- Safety factor at 20°C: 3 times the working pressure
- Tolerance (mm): +/- 1.0

Int. Ø
in (mm)		 Ext. Ø
in (mm)		 Thick.
wall
(mm)		 weight
(g/m)		 Ø
bend radius
(mm)		 PS
to 23°C
(bar)		 Vacuum
(m/H2O)		 25m
20 25.8 2.9 250 100 4 7 135081
25 30.8 2.9 310 135 4 7 135083
32 38.2 3.1 400 150 4 7 135087
35 41.4 3.2 490 135 4 7 135089
38 44.8 3.4 530 180 4 7 135091
40 47.2 3.6 560 190 4 7 135093
45 52.6 3.8 680 210 4 7 135095
50 58.2 4.1 810 220 4 7 135097
55 63.4 4.2 895 250 4 7 135099
60 68.4 4.2 975 280 4 7 135101
63 71.6 4.3 1050 300 4 7 135103
70 79.2 4.6 1200 325 3 7 135105
76 85.6 4.8 1390 345 3 7 135106
80 90.4 5.2 1580 360 3 5 135107
90  101 5.5 1850 425 2 5 135108
102 114 6 2200 480 2 5 135109
110 121.2 6.1 2530 525 2 6 135110
120 132.4 6.2 2800 670 2 6 135111




- Strictly prohibited for transporting fatty products (vegetable oils - milk).
