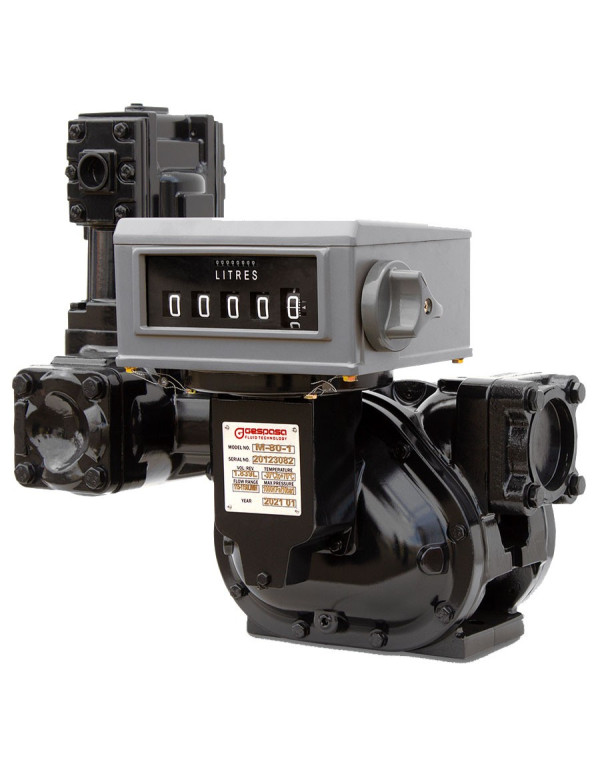

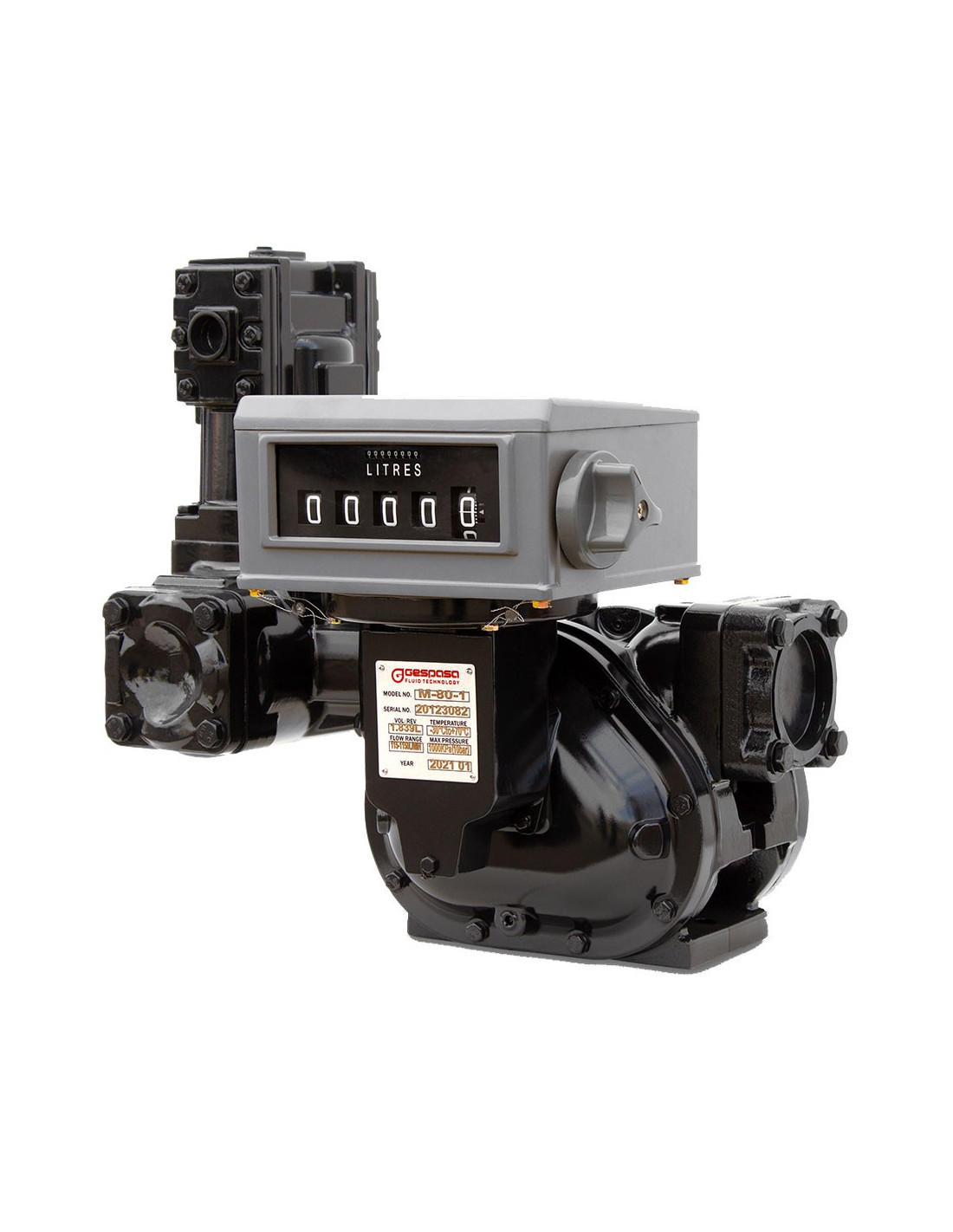

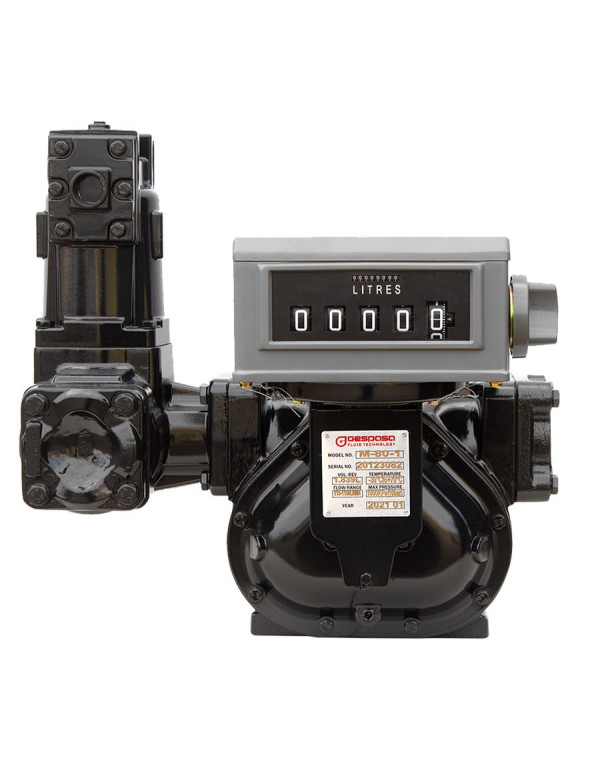

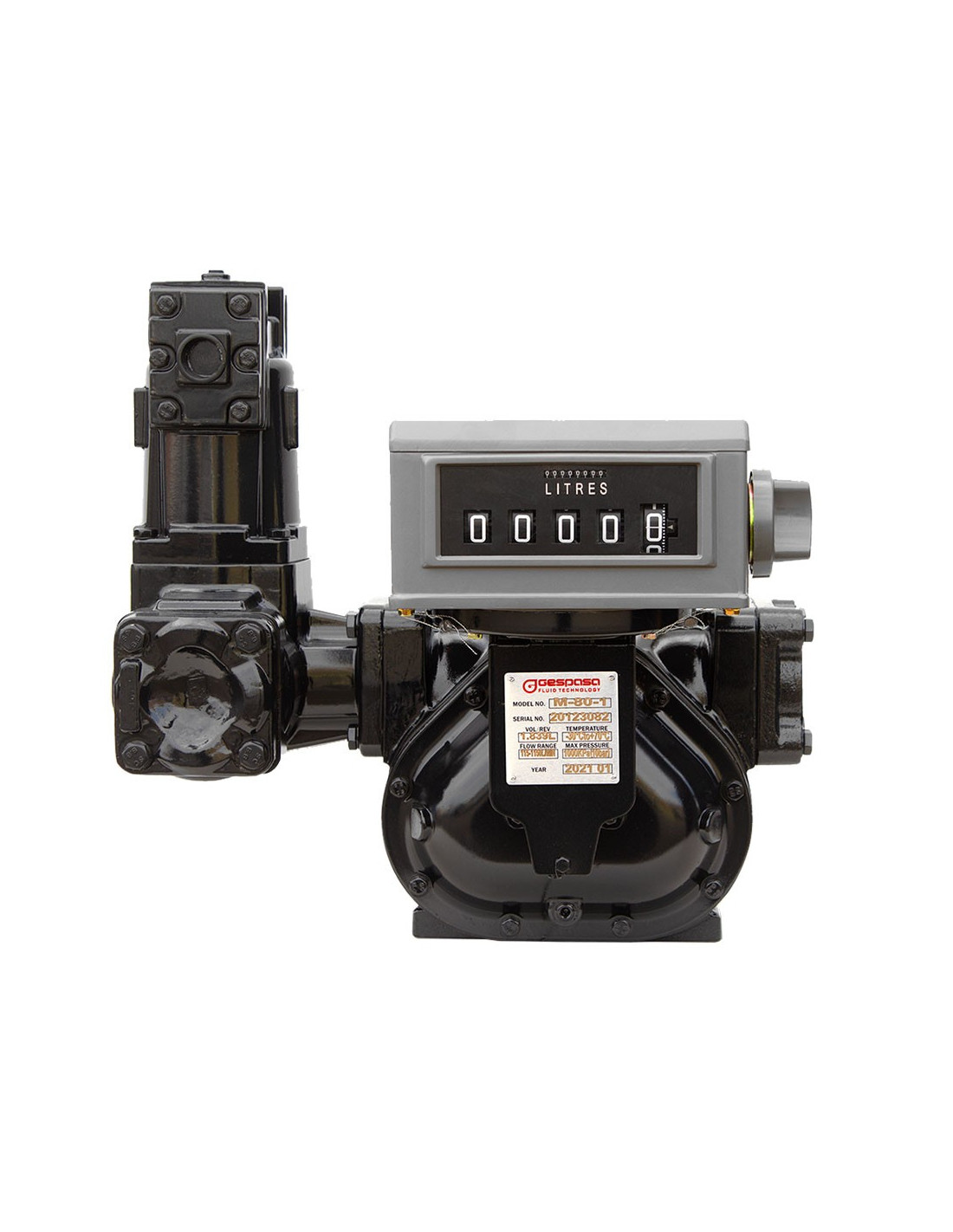

High flow rate volumetric meter

Uses:
- Fuel oil, diesel, kerosene, engine oils, ethylene glycol, ink and industrial fluids.

Specifications:
- Resettable mechanical counter with 4.1 digits and non-resettable cumulative counter with 8 digits.
- High accuracy and repeatability across the widest range of flow rates. Superior accuracy at constant flow rate.
- High accuracy regardless of pressure fluctuations, temperature variations or viscosity.
- Low maintenance and long service life.
- Low head loss.
- Only for measurement in installations with a pump.
- Pre-filter with 80 μm (micron) mesh.
- Air release valve (must be under pressure, cannot be under vacuum).
- Seals: Buna-N, Viton, PTFE.
- Measuring system with three synchronised rotors that turn without wearing the metal parts of the meter.
- The M meter maintains accuracy thanks to its measuring chamber with minimal friction, which ensures maximum accuracy for a long time. No metal-on-metal contact in the measuring chamber.
- Temperature range: -40 ºC to +71 ºC.
- Accuracy ±0.2 %.
- Repeatability < 0.07 %.
- Maximum pressure 10 bar.
- Viscosity range: 30 SSU to 1 500 000 SSU

 Customs number: 90282000 - Country of origin: Spain.
