Automatic air feeders for water pressure tanks, used on tanks 500 to 10000 liters. Pressure maxi 16 bar.
Warning: Last items in stock!

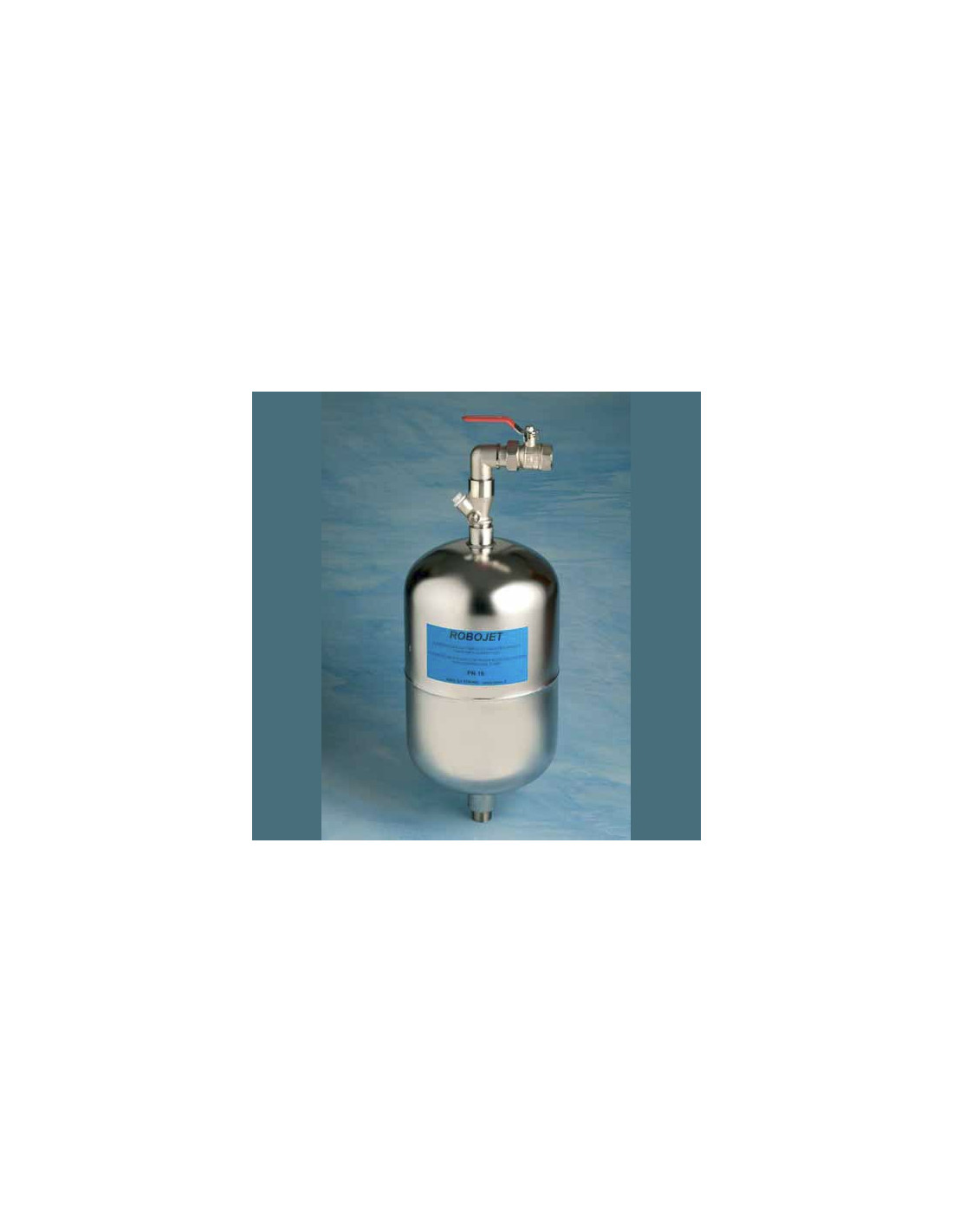

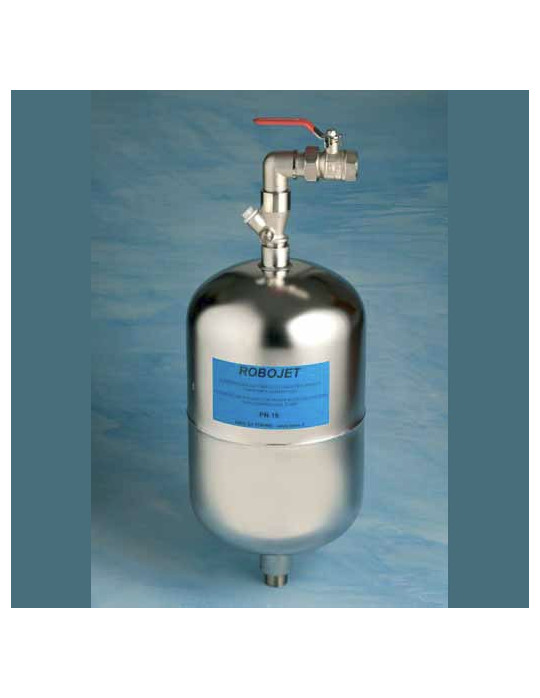

Air feeders ROBOJET are suitable for water booster system with external centrifugal pumps. They are totally metallic for use in plants with a maximum working pressure of 16 bar. Big capacity of air at every cycle 20 litres; use for big pressure tanks up to 10.000 litres. They have the following technical features: Material: tank in stainless steel Aisi 304, fittings and ejector in brass nickel plated. Working pressure: up to 1.600 KPa (16 bar). Use: for big water booster system see table. They are complete with pipe union ball valve and an elbow for an easy assemblage, a flexible rubber tube with outside braiding in galvanized steel length 1 m Ø 1” x 1/2”.
Installation ROBOJET Automatic air feeders :
A : When the pump starts, inside the air-feeders passes water from the pressure tank to the suction of the pump. The flow of water in the ejector ,inside the air-feeder, generates an air-suction from the outside which accumulates progressively.
B : When the air feeder is completely full of air, the internal float shuts off the operation, avoiding that air can reach the suction of the pump.
C : When the pump stops, for balancing of pressure, the float lifts and the air flows down in the tank, while the air feeder is again filling of water. The cycle is so finished and the system is ready for the successive cycle.
Characteristics automatic air feeders ROBOJET for tanks until 10000 liters :
|D (mm)||H (mm)||Ø 1||Ø 2||(liter)|
|ROBOJET||341 194||250||640||1"||1"||500 - 10 000|
Diagram Automatic air feeders ROBOJET :
Automatic air feeders AMISJET SERIES N, SERIES M, SERIES A ensure a continuous and abundant supply of air to the pressure tank using external centrifugal pumps. All air-feeders have an ejector mounted in the body itself; the ejector has an high suction capacity. The construction is strong and compact.
It has no metallic parts subject to wear. All Amisjet series N, series M, series A ar e used in plants with pump fed by well, water storage or acqueduct. The air feeder must be installed vertically as indicated in the scheme. One ball valve V1 must be installed between the upper end of the air feeder and the pressure tank; one ball valve V2 must be installed between the lower end of the air feeder and the adapter to the suction of the pump. The check valve R of the plant must be always placed before the connection of the air feeder to the suction of the pump. No other check valve must be installed on the delivery pipe between the pump and the pressure tank; otherwise the air feeder does not work. The air feeder supplies air into the pressure tank at any cycle of operation of the pump as below described. The time of realization of the air-cushion is in function of the number per hour of switch on/switch off of the pump. Normally in a plant , the time of realization of the air- cushion is about 7-10 days. It is necessary to adjust the ball valve V2 when for a big pressure stage , the float ball inside the air-feeder goes down too quickly and consequently in the closing phase causes noise and vibration to the connecting pipes. In the case of a pump connected to a main water supply under pressure for a normal operation of the air-feeder one make sure that the pressure in the tank must be 1,7 time than the main pressure.
