Robinet diffuseur Bronze type B

Bronze type "B" jet diffuser valve

153216
Delivery 2 to 3 days
€73.33

€73.33 tax excl.

rating Read the review
Average rating: 10/10 Number of reviews: 1

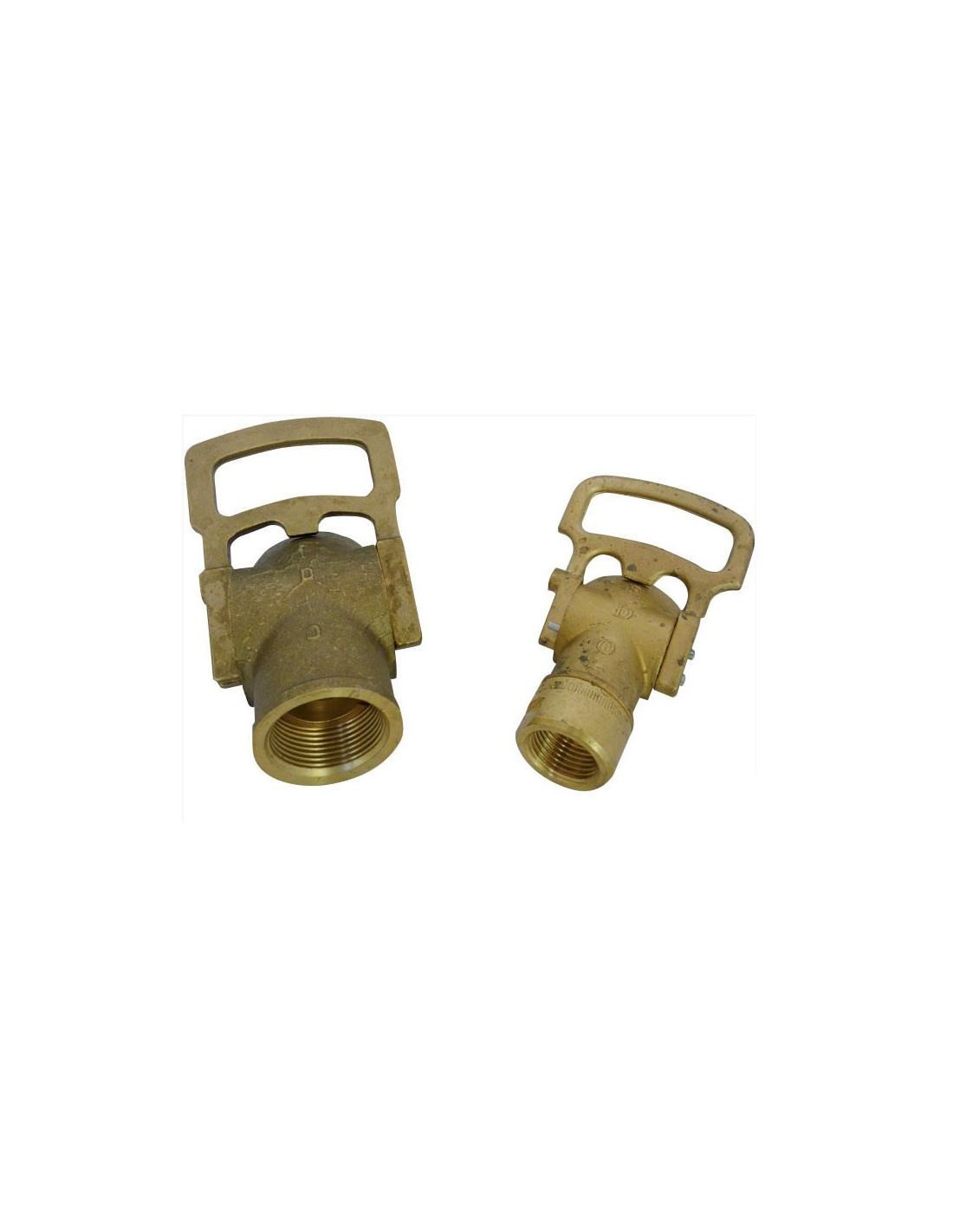

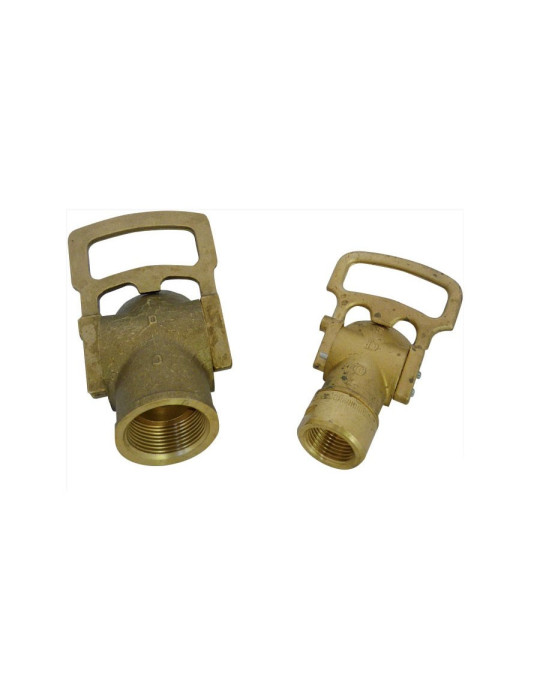

3-position mixed diffuser jet valve intended to equip fire hose reels (RIA). Available in DN20 and DN40, bronze construction.

Diameter

Attributs
Image Ref. Diameter Unit price Avail. Buy
Bronze type "B" jet diffuser valve
153216 DN 20
€73.33
Available
Bronze type "B" jet diffuser valve
153217 DN 40
€119.17
Available
Total: 0,0
All prices with tax included.
Available Product is available
Out of stock Product is no longer in stock
Can be back-ordered Product is no in stock, but is allowed to be back-ordered
Description

The diffusion system produces, from the diffusion head, a sheet shaped like a truncated pyramid with a flattened rectangular cross-section. This sheet of water, of increasing surface area, gradually turns into droplets with distance, greatly increasing the number of ways of attacking fires according to their nature and location and ensuring the widest surface coverage.

Specifications:
- Bronze diffuser valve.

ModelDN20DN40
Reference 153216 153217
Nominal diameter (mm) 20 40
Nominal pressure (bar) 16
Thread diameter (mm) M24x200 M36x200
Weight (Kg) 0.54 1.10



Product Details
Comments
All product reviews comply with DIRECTIVE (EU) 2019/2161
Parfait pour mon utilisation
rating 10
07/31/2019
Michel
Livraison rapide, matériel conforme
