Réservoir à vessie horizontal Varem

Varem horizontal bladder pressure tank

320310

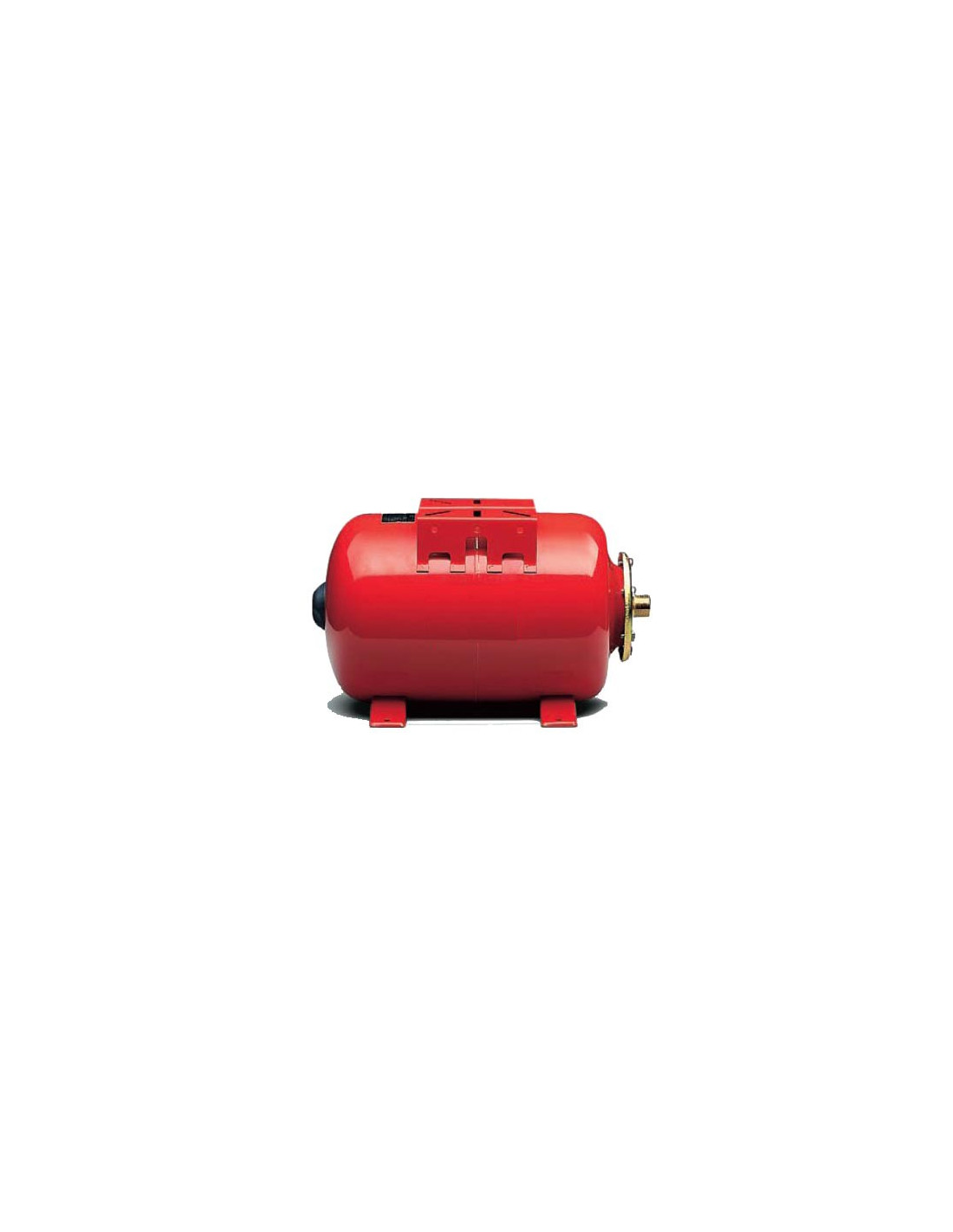

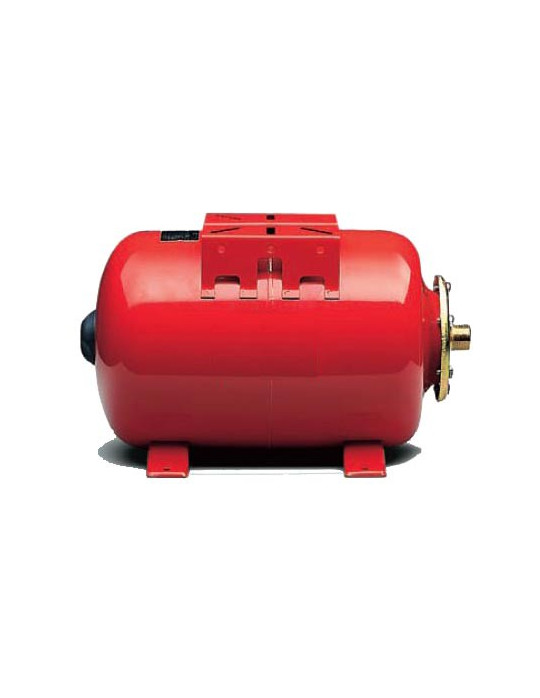

The horizontal bladder pressure tank stores water under pressure; it can be combined with a suitable surface pump. Painted steel tank, floor-standing or fixed directly to a wall.

Description

Horizontal bladder pressure tanks are generally used mounted with a surface pump set, pressure switch, hose and pressure gauge (booster set)... Bladder pressure tanks store water under pressure to deliver it at constant pressure and prevent unwanted pump starts; they make it possible to supply water to machines such as: washing machines, dishwashers, pressure washers, garden taps...

Model H20
Reference 320310
Volume (L) 20

Pressure (bar)

 10
Pre-charge (bar) 1.5
Male connection 1"
Second male port WITHOUT
Pump support WITH
Dimensions L x H (mm) 500 x 270
Weight (Kg) 6





Guide to choosing bladder pressure tanks - Horizontal & Vertical

Pressure Start
and stop (bar)

 1 to 2.4

1.5 to 2.8

 2.1 to 4 2 to 3.2 2.4 to 4 2 to 3 2.5 to 3.6 3 to 4
Flow rate in m3/h Tank capacity
1 20 - 25 50 - 60 80 - 100
1.5 50 - 60 60 - 80 80 - 100
2 60 - 80 80 - 100
2.5 80 - 100 80 - 100 200
3 100 200
3.5 100 200
4 100 200
4.5 100 200 300
5 200 300
6 200 300
7 200 300
8 200 300 500
9 200 300 500
10 200 300 500









Product Details
Material :
Painty steel
Certification :
CE
Color :
red
Membrane :
Butyl
Raccordement :
1" jusqu'à 100 L et 1" 1/2 pour le 200 L et 300 L
Qualité :
Alimentaire
