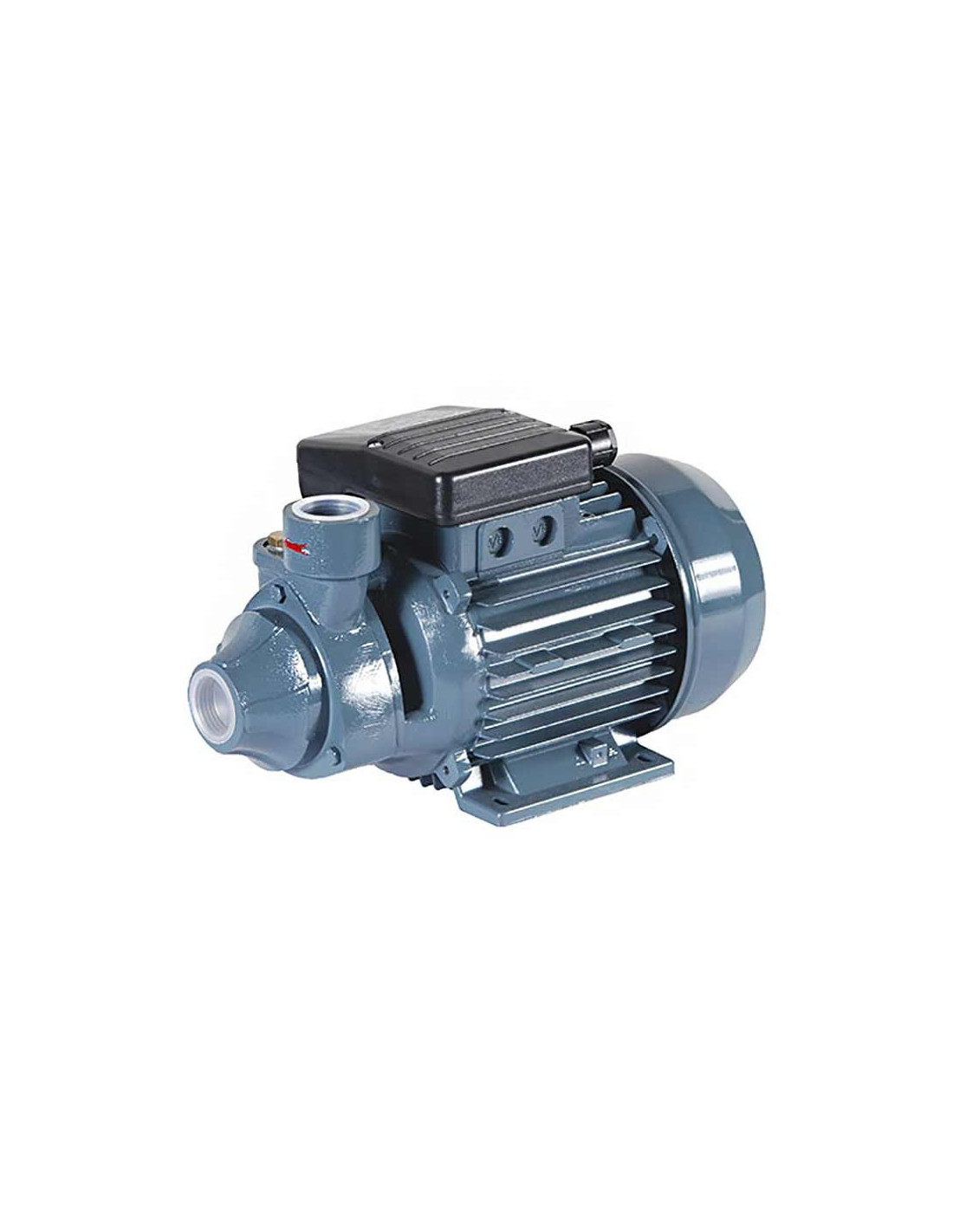

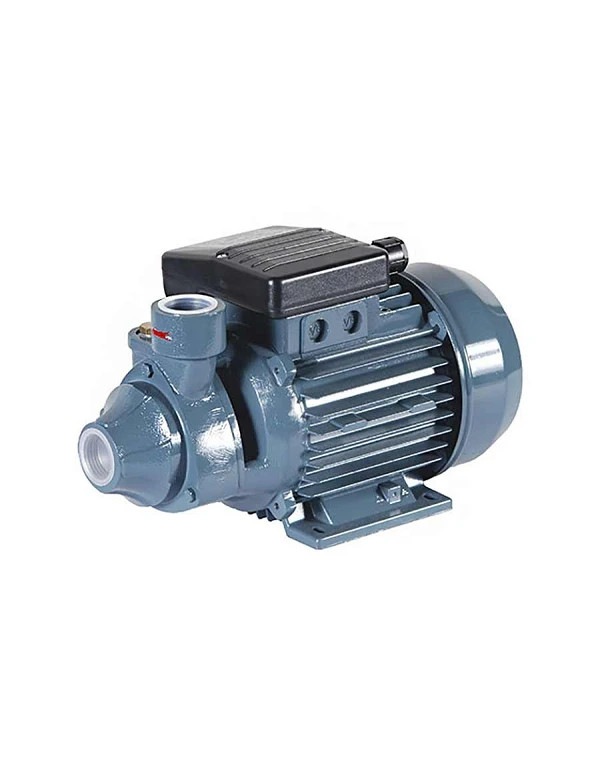

Cast iron peripheral pump - PM

605614
Delivery 3 to 5 days
€195.83

€195.83 tax excl.

rating Read the review
Average rating: 10/10 Number of reviews: 1

The pump is used for pressure boosting in homes and for water distribution in general; the brass vane impeller of the PM pump provides high pressures, 4.0, 5.8 and 6.4 bar, with low power ratings of 0.55 and 0.75 Kw. Robust G20 cast iron construction, 416 stainless steel shaft, brass impeller, 2-year warranty.

Power

Attributs
Image Ref. Power Unit price Avail. Buy
Cast iron peripheral pump - PM
605614 0.55 kw
€195.83
Available
Cast iron peripheral pump - PM
605615 0.75 Kw
€250.83
Available
Total: 0,0
All prices with tax included.
Available Product is available
Out of stock Product is no longer in stock
Can be back-ordered Product is no in stock, but is allowed to be back-ordered
Description

Use:
- For pumping clean water, clear liquids, free of sand and impurities, non-aggressive liquids.
- For water distribution in a home, pressure boosting, watering, water distribution in general.

Specifications:
- Pump body and support in G20 cast iron.
- Brass peripheral vane impeller.
- 416 stainless steel shaft.
- Mechanical seals: Ceramic/graphite - Ceramic/graphite.
- Voltage: 230/240 volts / 50 Hz,
- Built-in thermal protection.
- Protection: IP 44.
- Insulation class F.
- 2-year warranty.

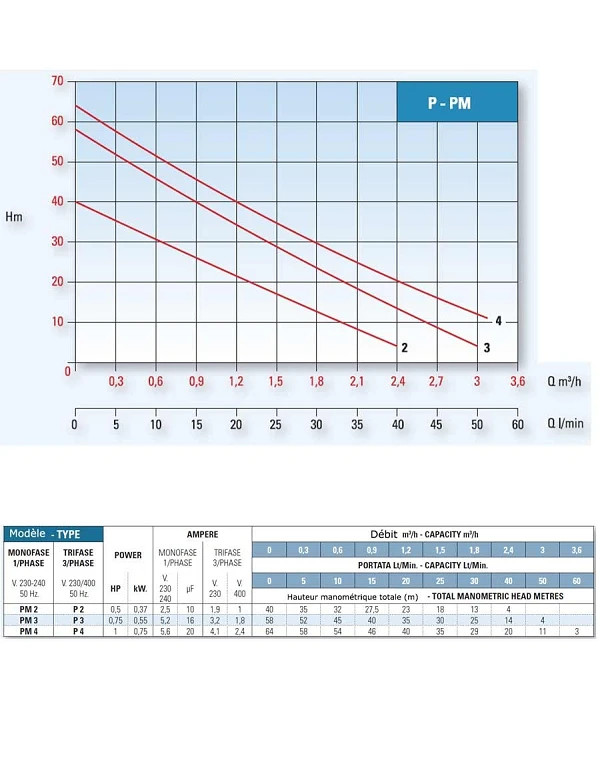

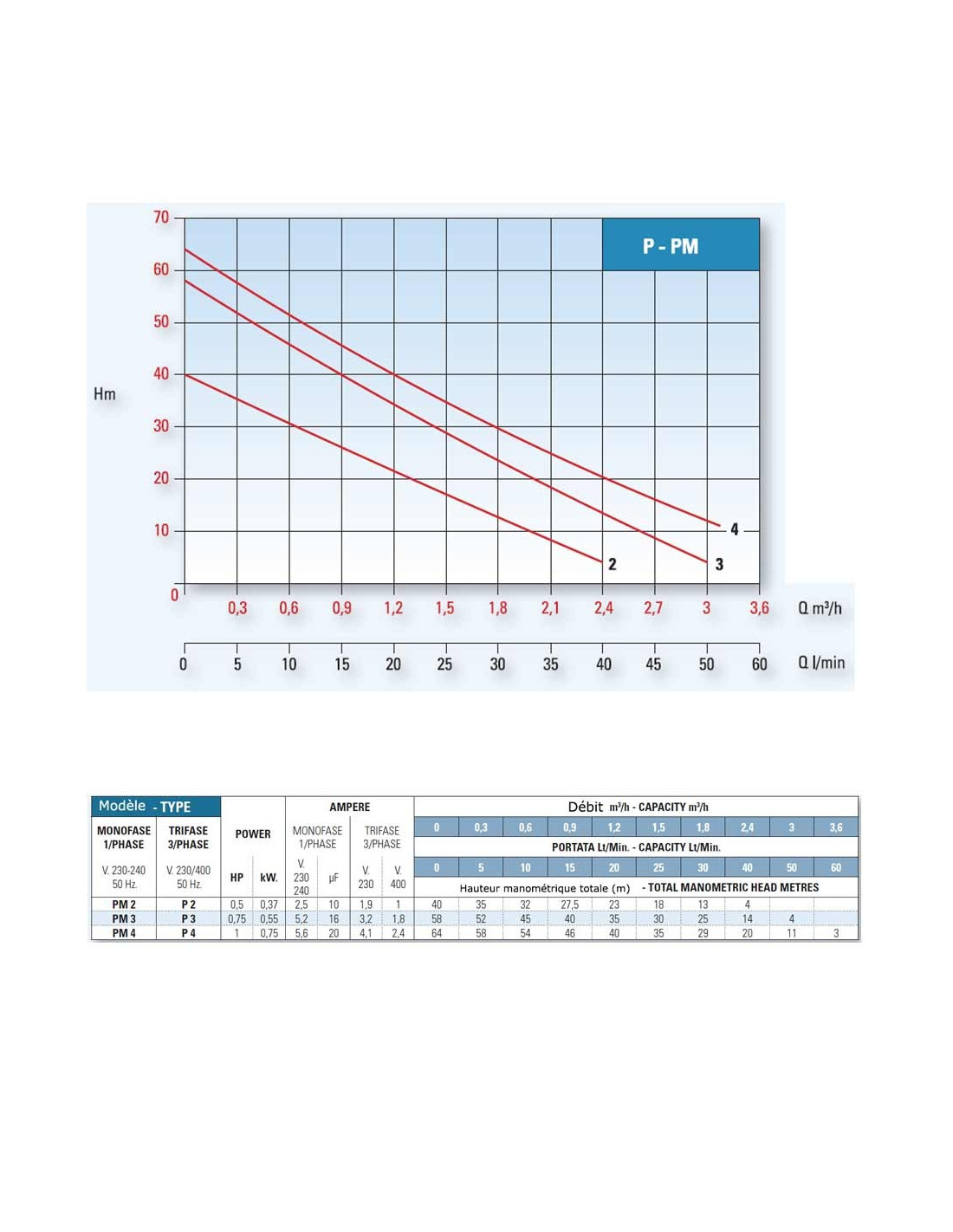

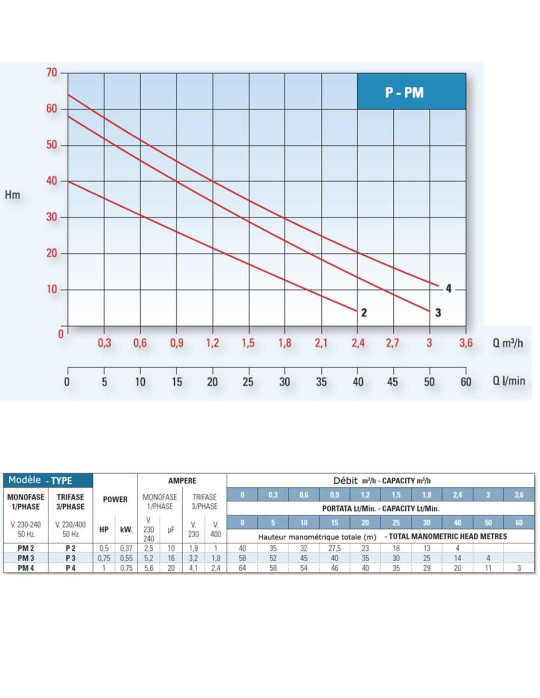

ModelPM 3
PM 4
Reference 605614 605615
Voltage (V) 230 / 1 ph
Power (Kw) 0.55 0.75
Current (A) 5.2 5.6
TDH (m) 58 64
Flow rate (m3/h) 3.0
DN suction 1"
DN discharge 1"
Weight (Kg) 9.2 9.5





Product Details
Attachments
Comments
All product reviews comply with DIRECTIVE (EU) 2019/2161
rating 10
02/16/2021
