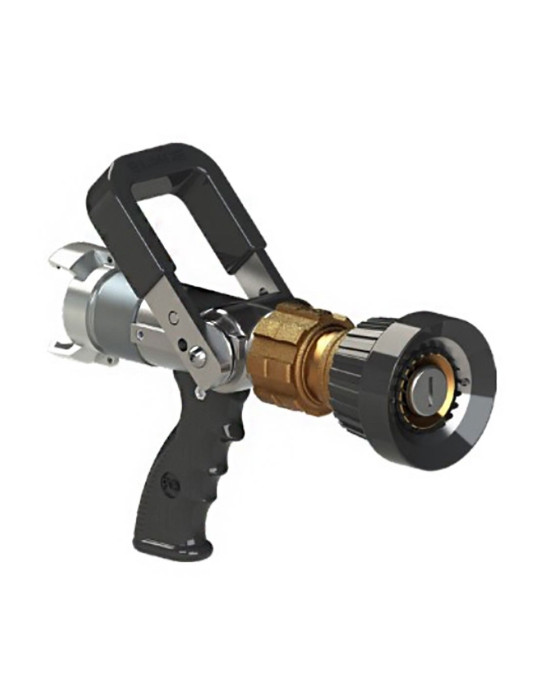

Lance incendie à débit et jet réglable TURBOKADOR 500 DHT MARINE

Fire-fighting nozzle with adjustable flow rate and jet TURBOKADOR 500 DHT MARINE

508375
Delivery 4 to 6 weeks
€921.67

€921.67 tax excl.

Nozzle with adjustable flow rate and jet for sea water, by rotation of an indexed ring, 316L stainless steel body, marine bronze head, for corrosive environments and saline conditions. Flow rate 200, 300 and 500L, PS 6 bar. Guillemin DN40 inlet without lock.

Description

Specifications:
- 316L stainless steel body.
- Bronze head.
- Ball valve.
- Opened by operating handle.
- Drain position.
- Used by the French Navy, approval: N°6585/43 STCM.

Model

TURBOKADOR 500 DHT
Marine version
Reference 508375
Flow rates (L/min)
 200-300-500
Nominal pressure (bar) 16
Working pressure (bar)
 6
Body material
 316L stainless steel
Head material Bronze
Purge ring Yes
Connection GUI DN40
Dimensions (L*w*h cm) 266 x 248 x 93
Weight (Kg)
 4.92
