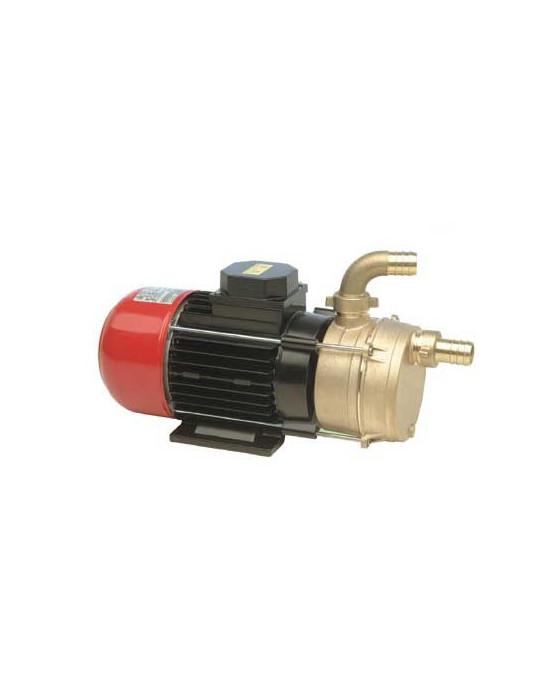

Pompe auto-amorçante en bronze 230V

Bronze transfer pump (12V and 24V) ECC

605216
Delivery 2 to 3 days
$435.74

$435.74 tax excl.

rating Read the review
Average rating: 9/10 Number of reviews: 1

Bronze self-priming DC transfer pump (12Vdc & 24Vdc). Used for pumping and transferring liquids (water, sea water, milk, wine, fuel oil, light oils with max viscosity 80 CPS.

Voltage
PUISSANCE

Attributs
Image Ref. Voltage PUISSANCE Unit price Avail. Buy
Bronze transfer pump (12V and 24V) ECC
605216 12 Vcc 0.22 Kw
$435.74
Available
Bronze transfer pump (12V and 24V) ECC
605218 12 Vcc 0.45 Kw
$702.96
Available
Bronze transfer pump (12V and 24V) ECC
605217 24 Vcc 0.22 Kw
$435.74
Available
Bronze transfer pump (12V and 24V) ECC
605219 24 Vcc 0.45 Kw
$702.96
Available
Bronze transfer pump (12V and 24V) ECC
605220 24 Vcc 0.75 Kw
$1,113.57
Available
Total: 0,0
All prices with tax included.
Available Product is available
Out of stock Product is no longer in stock
Can be back-ordered Product is no in stock, but is allowed to be back-ordered
Description

Transfer of fuel, diesel, light oil (SAE30 at 30°C), sea water and non-aggressive products. Self-priming side-channel pump, bronze pump body. Able to operate with an intermittent presence of liquid at the suction. Used for industry, agriculture, public works, marine applications...

ECC self-priming pump specifications:
- The pumps are supplied with a straight fitting and a bronze elbow fitting.
- Bronze pump body and impeller.
- Liquid ring pump.
- AISI 316 stainless steel shaft.
- AISI 304 stainless steel counter-flange (ECC 12/20 and ECC 24/20).
- Do not use with petrol, solvents and, in general, in places where there is a risk of explosion and fire.
- Liquid temperature up to +130°C.
- Ambient temperature up to +40°C.
- Maximum density: 1.1g/m3 (free of sand and not too viscous).
- Direct current.
- Degree of protection IP23.
- Continuous duty.

- Maximum suction head: 6 m

Model ECC 12/20 ECC 24/20 ECC 12/25 ECC 24/25 ECC 24/40
Reference 605216 605217 605218 605219 605220
Voltage
(V DC)		 12 24 12 24 24
Power
(Kw)		 0.22 0.45 0.75
Current
(A)		 20 10 37 19 38
HP 0.3 0.6 1
Speed
rotation
(rpm)		 2400 1500 1600 1500
Flow rate
max
(m3/h / l/min)		 1.4 / 23.3 1.6 / 26.6 3.7 / 61.6 4 / 65 10 / 148
Height
max
(m)		 12 13 12 14 15
Diameter
suction /
discharge		 3/4" M 1" M 1" 1/2 M
Diameter
hoses
(mm)		 20 25 40
Weight
(Kg)		 5.5 9 15

Models Height
(m)		 1 5 10 Pressure
max
(bar)
ECC 12/20
Litre
per
minute
(l/min)
→

 23 16 5 1.2
ECC 24/20 26 20 9 1.3
ECC 12/25 62 44 14 1.2
ECC 24/25 67 50 26 1.4
ECC 24/40 166 125 70 1.5
1 m3/h (1000 litres per hour) = 16.66 l/min (16.66 litres per minute)

 Customs code : 84138100 – Made in Italy.

Product Details
Attachments
Comments
All product reviews comply with DIRECTIVE (EU) 2019/2161
rating 9
06/11/2016
Georges
