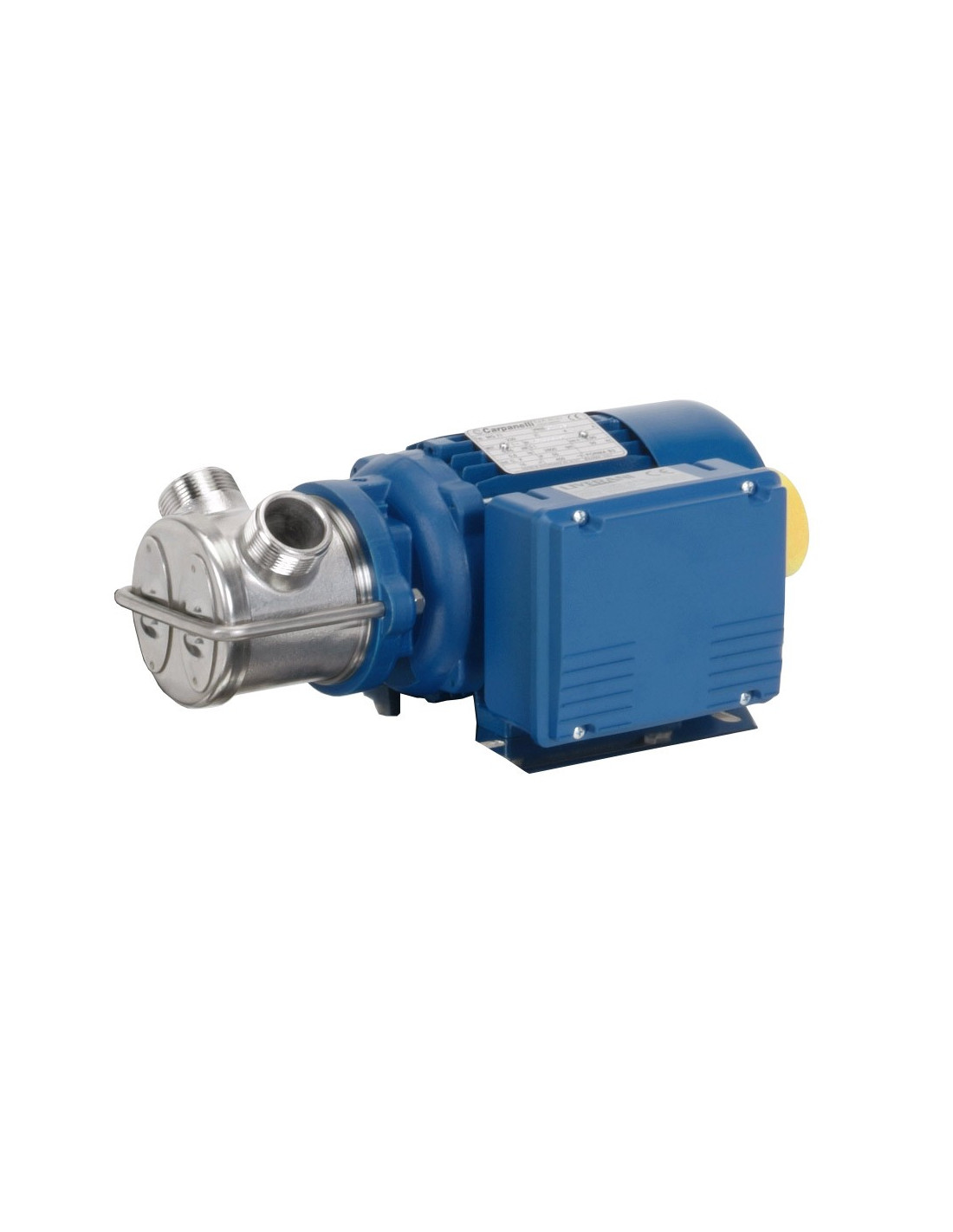

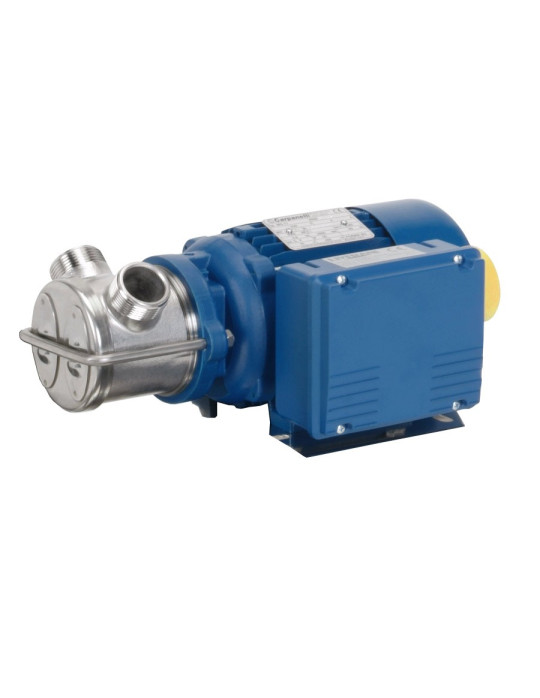

EP JUNIOR Liverani pumps

EP JUNIOR Liverani pumps

607126
Delivery 2 to 3 weeks
€691.67

€691.67 tax excl.

Self-priming liquid ring pumps, up to 6 m, reversible, suitable for the transfer of clear fluids, food liquids and chemical liquids, free of solid particles. Available in single-phase or three-phase, with or without BY-PASS, fitted with different seals, depending on model (see tables below).

Voltage
Garniture mécanique

Attributs
Image Ref. Voltage Garniture mécanique Unit price Avail. Buy
EP JUNIOR Liverani pumps
607128 MONO Cer.-Grafite-Viton
€718.33
Available
EP JUNIOR Liverani pumps
607132 MONO Widia-SiC-Viton
€781.67
Available
EP JUNIOR Liverani pumps
607130 MONO Cer.-Grafite-Epdm
€718.34
Available
EP JUNIOR Liverani pumps
607126 MONO Cer.-Grafite-NBR
€691.67
Available
EP JUNIOR Liverani pumps
607136 TRI Cer.-Grafite-Viton
€718.33
Available
EP JUNIOR Liverani pumps
607140 TRI Widia-SiC-Viton
€781.67
Available
EP JUNIOR Liverani pumps
607138 TRI Cer.-Grafite-Epdm
€718.34
Available
EP JUNIOR Liverani pumps
607134 TRI Cer.-Grafite-NBR
€691.67
Available
Total: 0,0
All prices with tax included.
Available Product is available
Out of stock Product is no longer in stock
Can be back-ordered Product is no in stock, but is allowed to be back-ordered
Description

Use:
- Transfer of food liquids (milk, wine, olive oil, fruit juice, etc.).
- Transfer of chemical liquids, liquid fertilisers.

Specifications:
- 316 stainless steel pump body, impeller and shaft.
- Mechanical seal of your choice depending on model (Ceramic-Graphite-NBR, Ceramic-Graphite-VITON, Ceramic-Graphite-EPDM or Widia-Sic-VITON).
- Self-priming.
- With flow reversing valve.
- Max flow rate 3 m3/h.
- 1''1/4 BSP threaded ports or fitted with connectors (CLAMP, DIN, SMS, etc.) on request.
- Max suction head 6 m.
- With or without bypass, depending on model, see table below.

Single-phase models:

EP JUNIOR 1" 1/4 Single-phase
Reference 607126 607127 607128 607129
Power supply (V) single-phase 230V
Power (Kw) 0.45
BY-PASS WITHOUT WITH WITHOUT WITH
Mechanical seal Cer.-Graphite-NBR Cer.-Graphite-Viton
Speed (rpm) 2800
Flow rate (l/min) 58
Thread
 1" 1/4
Weight (Kg) 9.6

Single-phase models:

EP JUNIOR 1" 1/4 Single-phase
Reference 607130 607131 607132 607133
Power supply (V) single-phase 230V
Power (Kw) 0.45
BY-PASS WITHOUT WITH WITHOUT WITH
Mechanical seal Cer.-Graphite-Epdm Widia-SiC-Viton
Speed (rpm) 2800
Flow rate (l/min) 58
Thread
 1" 1/4
Weight (Kg) 9.6

Three-phase models:

EP JUNIOR 1" 1/4 Three-phase
Reference 607134 607135 607136 607137
Power supply (V) three-phase 230/400V
Power (Kw) 0.56
BY-PASS WITHOUT WITH WITHOUT WITH
Mechanical seal Cer.-Graphite-NBR Cer.-Graphite-Viton
Speed (rpm) 2800
Flow rate (l/min) 58
Thread
 1" 1/4
Weight (Kg) 9.6

Three-phase models:

EP JUNIOR 1" 1/4 Three-phase
Reference 607138 607139 607140 607141
Power supply (V) three-phase 230/400V
Power (Kw) 0.56
BY-PASS WITHOUT WITH WITHOUT WITH
Mechanical seal Cer.-Graphite-Epdm Widia-SiC-Viton
Speed (rpm) 2800
Flow rate (l/min) 58
Thread
 1" 1/4
Weight (Kg) 9.6
