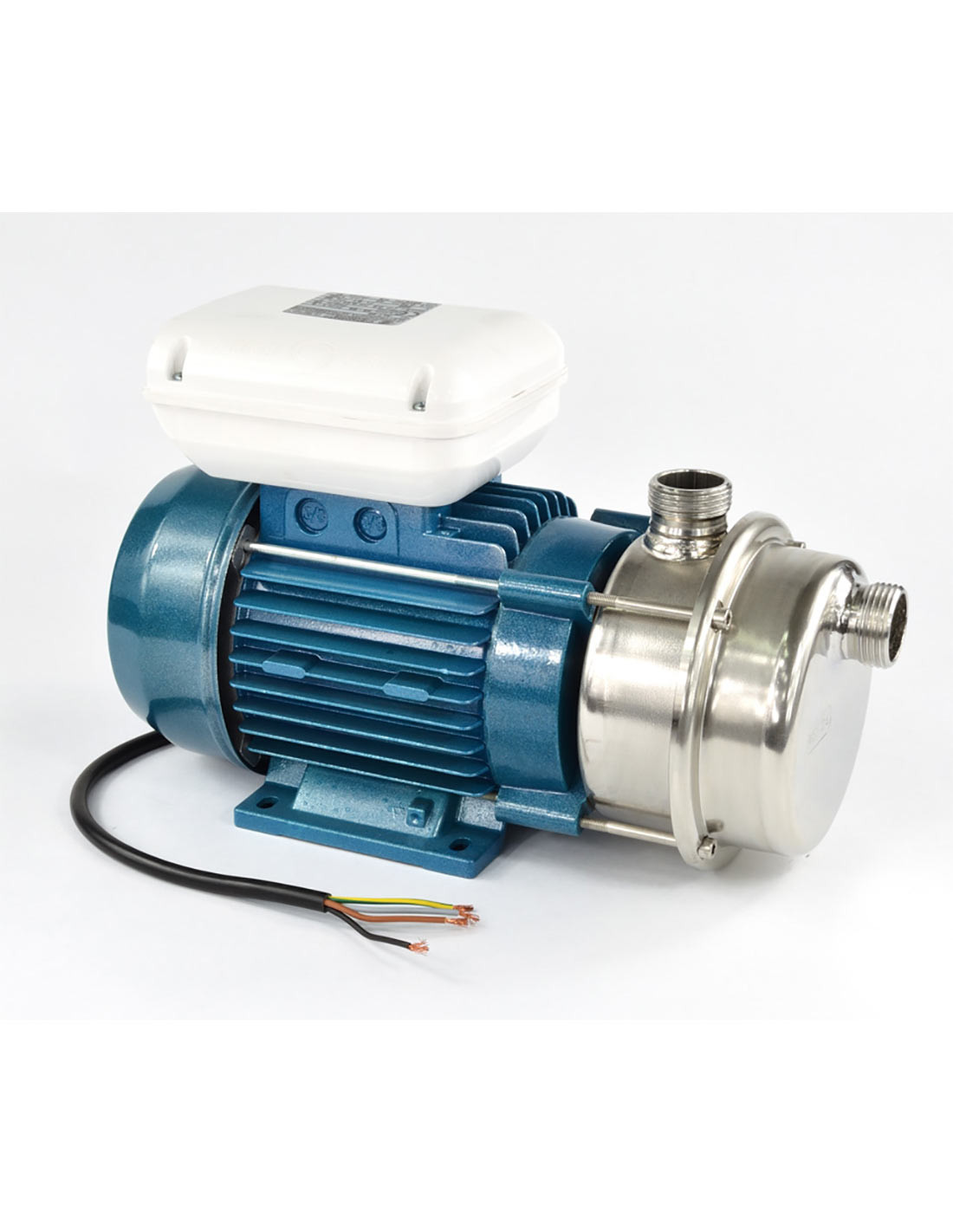

316 stainless steel self-priming pump ALT 25 MS

Reference 605716

Delivery 1 to 2 weeks

$621.96

$621.96 tax excl.

Side channel pump, for suction and transfer of liquids, thanks to its high self-priming capacity and the ability to operate even with intermittent liquid at suction. 316 stainless steel construction, particularly suitable for corrosive and food liquids. Three-phase asynchronous motors of 0.90 kW, with electric rotation direction reverser. Flow rate 54 l/min, max head 26m.

Garniture mécanique

Raccord

Attributs

Image	Ref.	Raccord	Garniture mécanique	Unit price	Buy
	605718	BSP M 1"	Cer.-Grafite-Viton	$654.55	Sum.:
	605717	BSP M 1"	Cer.-Grafite-Epdm	$654.55	Sum.:
	605716	BSP M 1"	Cer.-Grafite-NBR	$621.96	Sum.:
	605720	CLAMP (50.5mm)	Cer.-Grafite-Viton	$766.28	Sum.:
	605719	CLAMP (50.5mm)	Cer.-Grafite-Epdm	$766.28	Sum.:
	605722	DIN 25 M	Cer.-Grafite-Viton	$766.28	Sum.:
	605721	DIN 25 M	Cer.-Grafite-Epdm	$766.28	Sum.:
Total: 0,0 All prices with tax included.

Product is available
Out of stock

Product is no longer in stock
Can be back-ordered

Product is no in stock, but is allowed to be back-ordered

Description

Use:
- Transfer of food liquids (milk, wine, olive oil, fruit juice, etc.).
- Transfer of chemical liquids, liquid fertilisers.

Specifications:
- 316 stainless steel pump body, impeller and shaft.
- Mechanical seal of your choice depending on the model, (Ceramic-Graphite-NBR, Ceramic-Graphite-VITON, Ceramic-Graphite-EPDM).
- Suction and discharge fittings, BSP M 1", CLAMP (50.5mm), or DIN 25 Male.
- Self-priming.
- With flow reversing valve.
- Max suction head 6 m.
- BY-PASS option (on request).

Model	Reference	Flow rate max (l/min)	Height max (m)	Mechanical seal	Connection
ALT 25 MS 1" NBR	605716	54	26	NBR	BSP M 1"
ALT 25 MS 1" EPDM	605717			EPDM	BSP M 1"
ALT 25 MS 1" VITON	605718			VITON	BSP M 1"
ALT 25 MS CLAMP EPDM	605719			EPDM	CLAMP 50.5
ALT 25 MS CLAMP VITON	605720			VITON	CLAMP 50.5
ALT 25 MS DIN 25 EPDM	605721			EPDM	DIN 25
ALT 25 MS DIN 25 VITON	605722			VITON	DIN 25

Product Details

Attachments

ALT 25 MS

Download (384.28KB)
