Use:
- Transfer of food liquids (milk, wine, olive oil, fruit juice, etc.).
- Transfer of chemical liquids, liquid fertilisers.
Specifications:

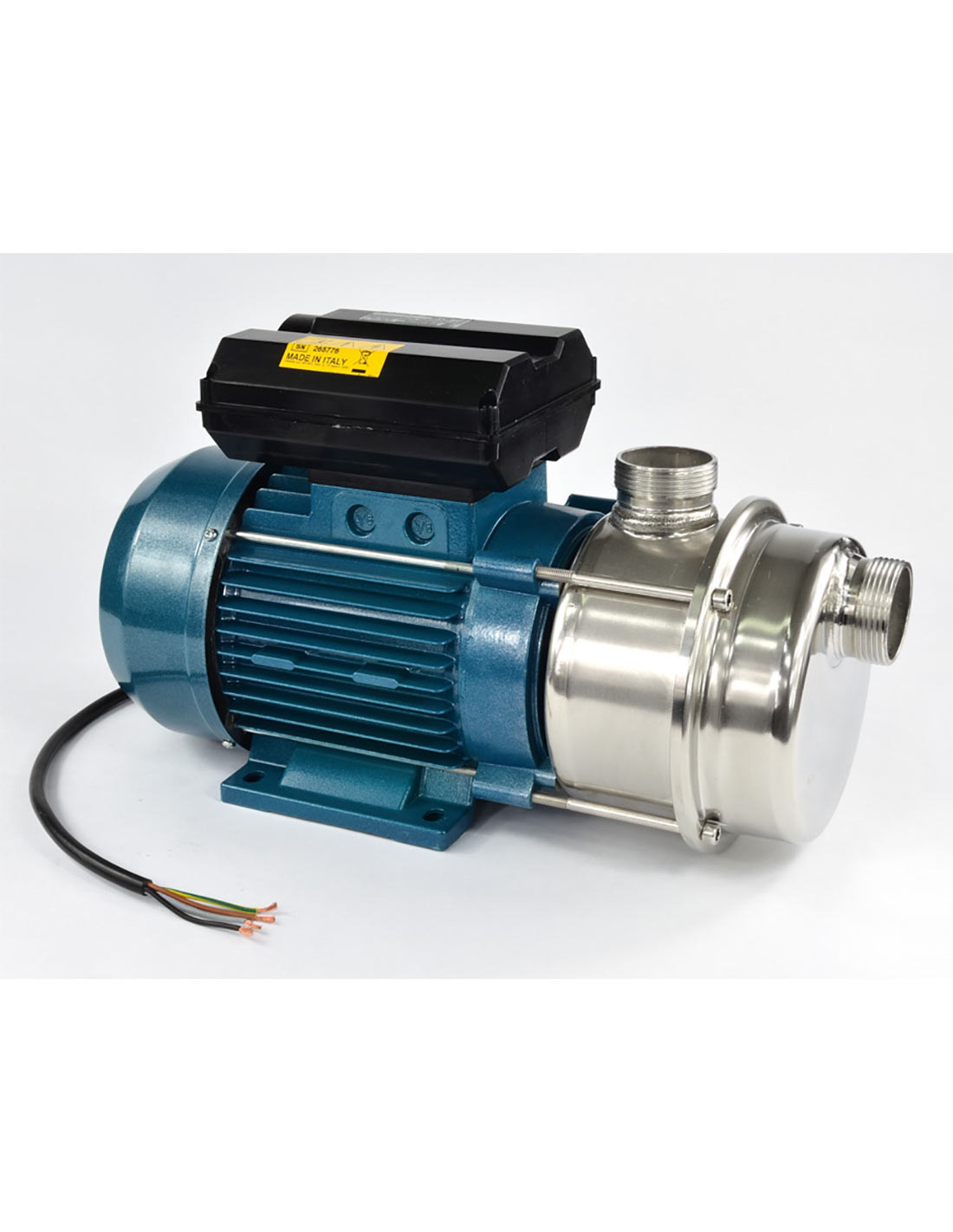

- 316 stainless steel pump body, impeller and shaft.
- Mechanical seal of your choice depending on the model, (Ceramic-Graphite-NBR, Ceramic-Graphite-VITON, Ceramic-Graphite-EPDM).
- Suction and discharge fittings, BSP M 1" 1/2, CLAMP (50.5mm), or DIN 32 and DIN 40 Male.
- Self-priming.
- With flow reversing valve.
- Max suction head 6 m.
- BY-PASS option (on request).
| Model | Reference | Flow rate max (l/min) |
Height max (m) |
Mechanical seal | Connection |
| ALT 40 1" 1/2 NBR |
605227 | 138 | 16 | NBR | BSP M 1" 1/2 |
| ALT 40 1" 1/2 EPDM |
605739 | EPDM | BSP M 1" 1/2 | ||
| ALT 40 1" 1/2 VITON |
605740 | VITON | BSP M 1" 1/2 | ||
| ALT 40 CLAMP EPDM |
605741 | EPDM | CLAMP 50.5 | ||
| ALT 40 CLAMP VITON |
605742 | VITON | CLAMP 50.5 | ||
| ALT 40 DIN 32 EPDM |
605743 | EPDM | DIN 32 | ||
| ALT 40 DIN 32 VITON |
605744 | VITON | DIN 32 | ||
| ALT 40 DIN 40 EPDM |
605745 | EPDM | DIN 40 | ||
| ALT 40 DIN 40 VITON |
605746 | VITON | DIN 40 |
