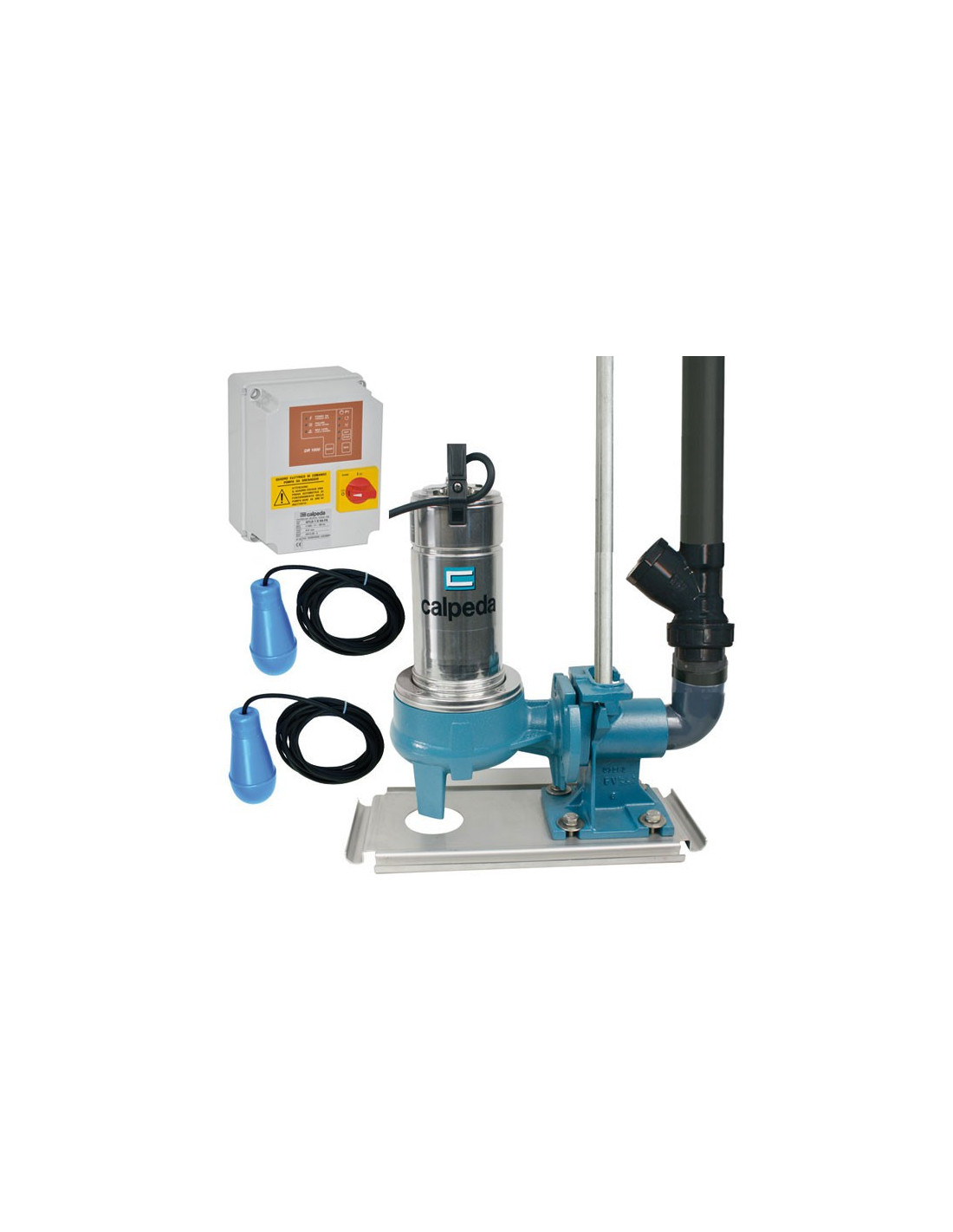

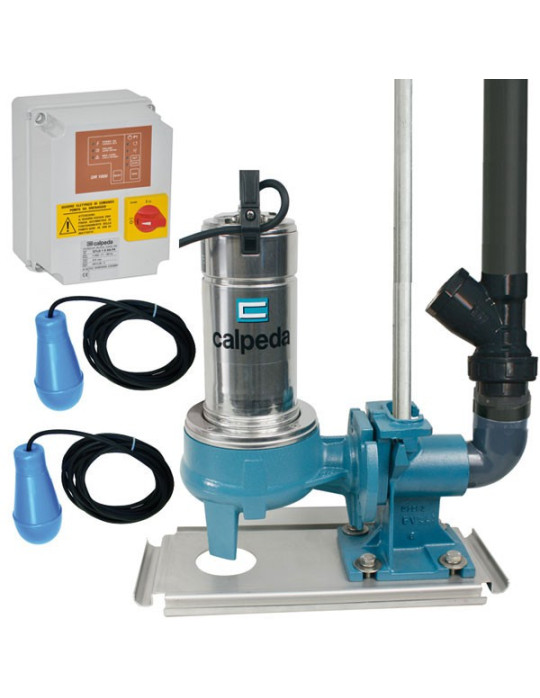

Lift pump kit for waste & loaded water, maximum passage 50mm. Supplied complete for use in waste water & rainwater lifting pits.
Specifications:
- 2-pole induction motor, 2900 rpm (continuous duty)
- Triple-impregnated moisture-resistant winding
- Class F insulation
- IP X8 protection
- Thermal protection and capacitor built in
- Cast iron pump body and impeller
- 303 stainless steel shaft
- Double mechanical seal in alumina ceramic/hard carbon/NBR in oil chamber
- Liquid temperature up to + 35°C
- Immersion depth: Max: 5 metres
- pH value between 6 and 11
- Passage in (mm) = 50
Composition of the kit:
- 1 Calpeda GQVM single-phase submersible pump.
- 1 heavy-duty 304 stainless steel support.
- 1 straight cast iron base foot 2" - DN50.
- 1 stainless steel guide bar, length 2m.
- 1 90° elbow (glued/threaded).
- 1 PVC ball check valve (special for loaded water).
- 2 lengths of 1m of rigid PVC pressure pipe, diameter 63.
- 1 control and protection panel for a single-phase lift pump.
- 2 float switches.
- 2 metres of 316 stainless steel chain.
- Everything ready to be glued and screwed together.
| Model | Reference | Power (Kw) | Voltage (V) | Current (A) | Ref | Weight (Kg) |
|---|---|---|---|---|---|---|
| ERO-5009 | 210159 | 0.75 | 230 | 4.8 | DN50 2" |
50 |
| ERO-5011 | 210160 | 1.10 | 8.4 | 52 |
| Flow rate | m3/h | 0 | 3 | 6 | 12 | 15 | 18 | 24 | 27 | 30 | 33 | 36 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| l/min | 0 | 50 | 100 | 200 | 250 | 300 | 400 | 450 | 500 | 550 | 600 | |
| ERO-5009 | Head (m) | 9.3 | 8.8 | 8.3 | 7 | 6.2 | 5.3 | 3.2 | 2.2 | - | - | - |
| ERO-5011 | 12.8 | 12.2 | 11.6 | 10.3 | 9.5 | 8.6 | 6.7 | 5.7 | 4.5 | 3.3 | 2 |
Pump customs number: 84137081 - Origin: Italy
