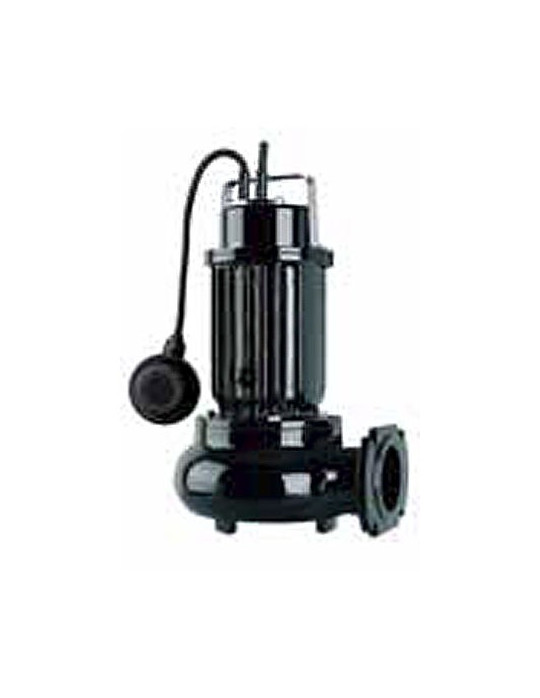

Pompe de relevage à roue vortex DGO 100/4

Lift pump with vortex impeller DGO 200/2/65H

Reference 210165

Delivery 2 to 4 days

€1,212.50

€1,212.50 tax excl.

Cast iron vortex impeller pump, for lifting loaded water, flow rate up to 40 m3/h, Power 1.50 kw, available in single-phase or three-phase, as well as single-phase with float.

Model

Attributs

Image	Ref.	Model	Unit price	Buy
	210166	230V - (mono)	€1,242.50	Sum.:
	210167	230V - (mono) + flotteur	€1,266.67	Sum.:
	210165	400V - (tri)	€1,212.50	Sum.:
Total: 0,0 All prices with tax included.

Product is available
Out of stock

Product is no longer in stock
Can be back-ordered

Product is no in stock, but is allowed to be back-ordered

Description

Cast iron pump with vortex impeller for lifting waste water and loaded water.

Specifications:
- 2-pole motor 2900 rpm.
- Grey cast iron casing - EN-GJL 250.
- Grey cast iron impeller EN-GJL-250.
- AISI 420 stainless steel shaft.
- Standard seals - NBR.
- Class F insulation.
- IP 68 protection.
- Capacitor built into the pump (single-phase models).
- DN65 Horizontal discharge.
- Maximum liquid temperature: + 40°C.
- Maximum immersion depth: 20 metres.
- HO7RNF power cable, length 10 metres..
- Maximum 30 starts per hour.
- Maximum passage 65 mm.

Model	Ref	P (Kw)	Voltage (V)	Current (A)	Float	Discharge Horizontal	Bore (mm)	Weight (Kg)
DGO 200/2/65HM	210166	1.50	single-phase (230)	9.9	Without	DN65	65	26
DGO 200/2/65HM SB	210167		single-phase (230)	9.9	With			26
DGO 200/2/65HT	210165		three-phase (400)	3.6	Without			26

Flow rate	m3/h	0	7.2	14.4	21.6	25.2	28.8	32.4	36	43.2
Flow rate	l/min	0	120	240	360	420	480	540	600	720
DGO 200/2/65	H.M.T (m)	9.2	8.3	7.6	6.2	5.3	4.6	3.9	3.4	2.1
