Cast iron lift pump vortex impeller DN65-DN80 - KV (2 poles)

210432
Delivery 1 to 2 weeks
$2,788.58

$2,788.58 tax excl.

G20 cast iron submersible pump, with vortex impeller, for lifting loaded water containing suspended solids, stringy matter and sludge. Standard flange delivery DN65 or DN80, power 4.00, 5.50 and 7.50 kW, flow rate up to 120 m3/h.

Power

Attributs
Image Ref. Power Unit price Avail. Buy
Cast iron lift pump vortex impeller DN65-DN80 - KV (2 poles)
210432 4.00kw
$2,788.58
Available
Cast iron lift pump vortex impeller DN65-DN80 - KV (2 poles)
210433 5.50kw
$3,866.77
Available
Cast iron lift pump vortex impeller DN65-DN80 - KV (2 poles)
210434 7.50kw
$4,328.58
Available
Total: 0,0
All prices with tax included.
Available Product is available
Out of stock Product is no longer in stock
Can be back-ordered Product is no in stock, but is allowed to be back-ordered
Description

Specifications:
- Motor casing, pump body and impeller in G20 cast iron.
- 416 stainless steel shaft.
- Mechanical seals: upper seal in silicon carbide, graphite; intermediate seal in silicon carbide; lower seal: lip seal, lubricated in oil chamber.
- Insulation class F.
- IP 68 protection.
- 2-pole motor, 2850 rpm.
- Pumped liquid temperature: continuous operation = 40 °C and intermittent operation = 80 °C.
- HO7RNF power cable, length 10 metres.
- Maximum 30 starts per hour.
- 2-year warranty.

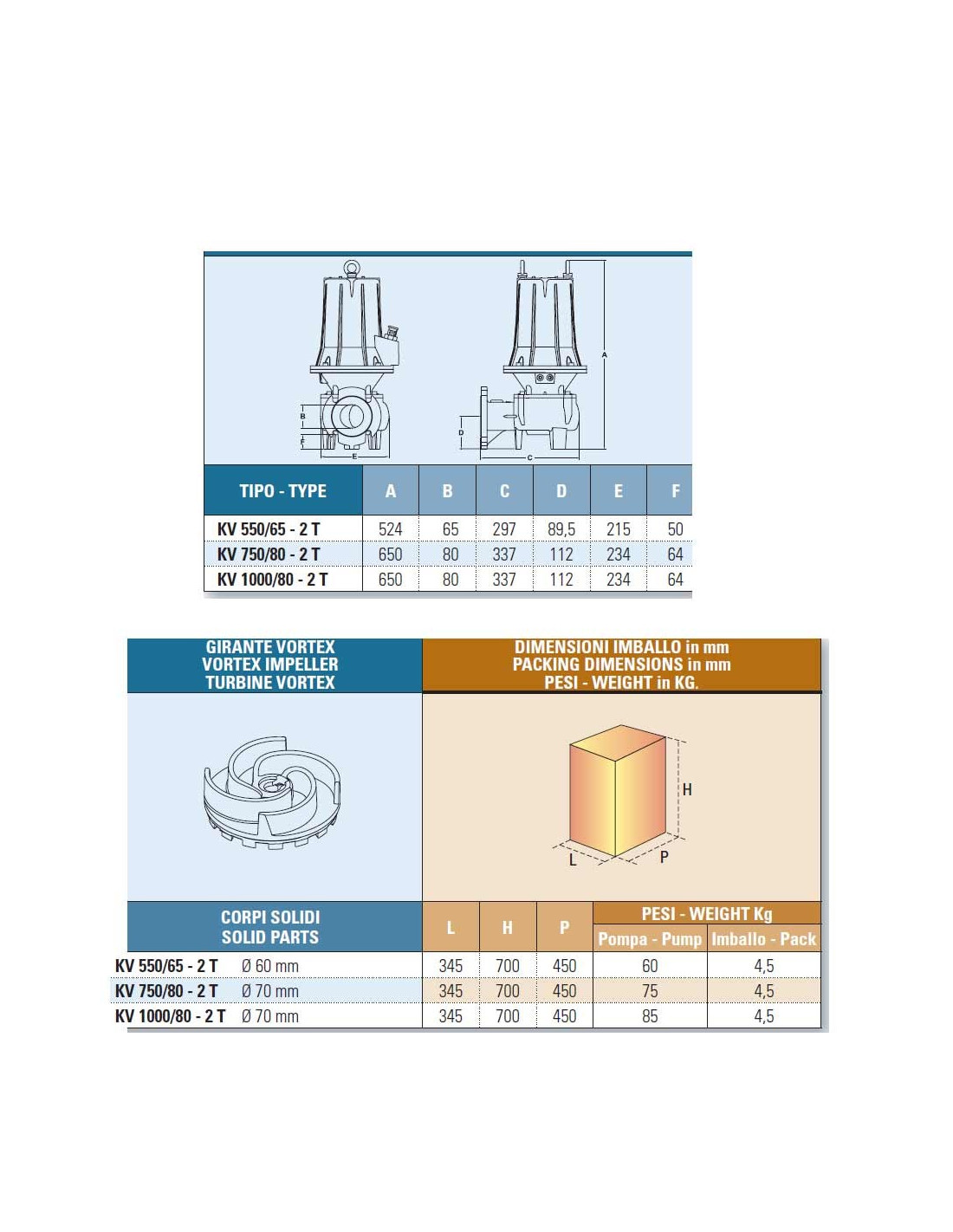

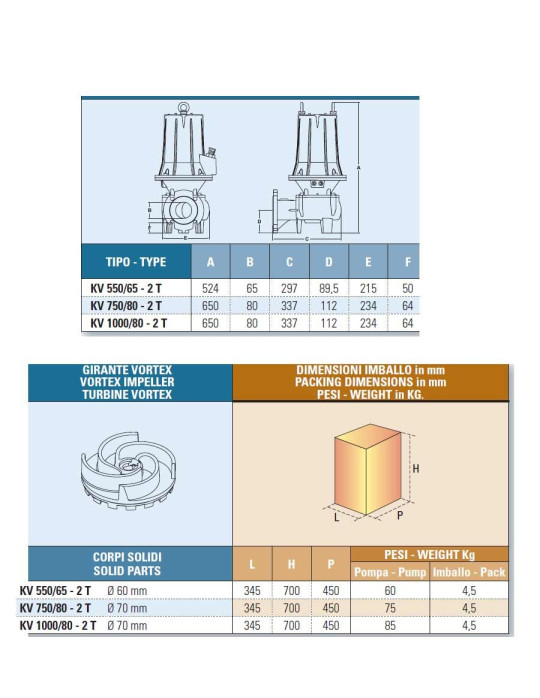

Model KV 550/65 - 2T KV 750/80 - 2T KV 1000/80 - 2T
Reference 210432 210433 210434
Power (Kw) 4.00 5.50 7.50
Power supply Three-phase
Current (A) 9.2 11.5 14.8
Speed (rpm) 2850
Max. head (m) 21.0 20.0 24.0
Max flow rate (m3/h) 72.0 114.0 120.0
Discharge DN65 DN80
Free passage (mm) 60 70
Weight (Kg) 60.0 75.0 85.0
