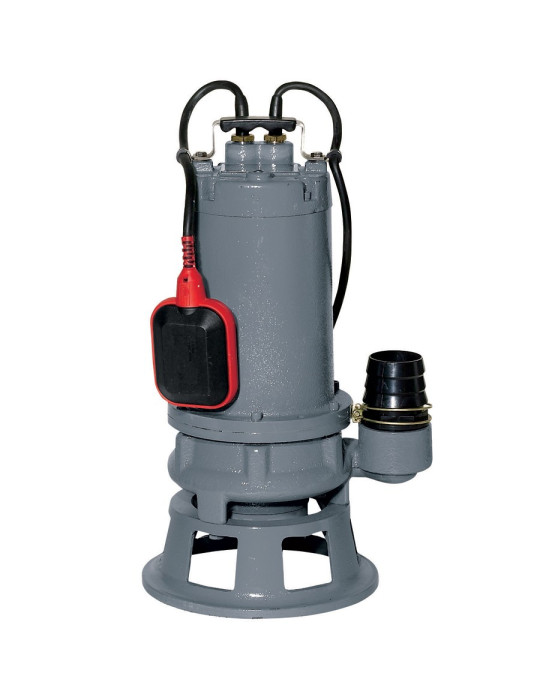

Cast iron grinder pump - Grinder 100

Use:
- For lifting loaded water from a house.

Pump specifications:
- Cast iron construction.
- Hardened stainless steel grinder.
- 420 stainless steel shaft.
- Cast iron support base.
- Double mechanical seal, silicon carbide and ceramic, in an oil chamber.
- Insulation class F.
- IP68 protection.
- Maximum liquid temperature 50 °C.
- pH between 6-10.
- Booster starter box to increase the starting torque.
- 10 metre electric cable.
- 2-year warranty.

BROYEUSE 100 grinder pump kit:
- Single-phase grinder pump 0.75 Kw with float switch.
- 1 stainless steel 316 male nipple 2".
- 1 PVC check valve, on solvent-weld union, diameter 63 mm (ext).
- 1 straight male end fitting in PRESSURE PVC, solvent-weld, diameter 63 mm (ext).
- 2x1m PRESSURE PVC tube, outside diameter 63 mm.
- 1 1/4-turn valve for PVC on 2" solvent-weld union, diameter 63 mm (ext).
- 1 90° elbow in PRESSURE PVC, solvent-weld/solvent-weld, diameter 63 mm (ext).
- 1 PRESSURE PVC coupling, diameter 63 mm (ext).
- 1 tube of glue + 1 roll of PTFE tape.
