€2,725.83 tax excl.

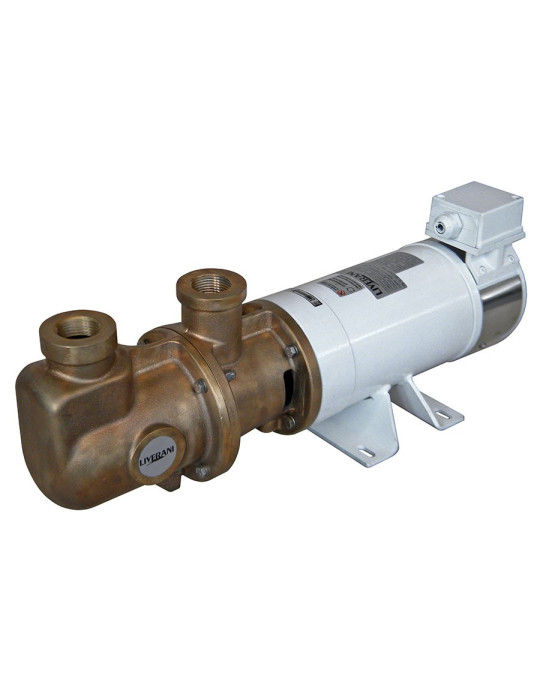

Electric helical screw pump with bronze body, widely used in the marine industry for transferring and emptying waste tanks on boats, toilet waste water discharge, heavy liquid with suspended solid particles, viscous and oily liquids, waste oils, fuel oil, diesel, etc. Available in 12V, 24V, 230V and 230/400V.
| Image | Ref. | Voltage | Unit price | Avail. | Buy |
|---|---|---|---|---|---|
|
607163 | MONO |
€2,773.33
|
|
|
|
|
607164 | TRI |
€2,725.83
|
|
|
|
|
607161 | 12 Vcc |
€3,030.00
|
|
|
|
|
607162 | 24 Vcc |
€3,030.00
|
|
|
|
Total:
0,0
All prices with tax included.
|
|||||
Product is available
Product is no longer in stock
Product is no in stock, but is allowed to be back-ordered
Specifications:
- Bronze pump body.
- Viscosity 500 cPo.
- Max suction: - 3 m.
| MO-B 44 | ||||
|---|---|---|---|---|
| Reference | 607161 | 607162 | 607163 | 607164 |
| Power supply (V) | 12 Vdc |
24 Vdc | single-phase |
three-phase |
| Power (Kw) | 0.55 | |||
| Speed (rpm) | 1400 | |||
| Flow rate (m3/h) | 2.8 | |||
| Max pressure (bar) | 3.5 | |||
| Particle diameter hard (mm) |
3.2 | |||
| Particle diameter soft (mm) |
6.4 | |||
| Tapping |
1" |
|||
| Weight (Kg) | 15.0 | 15.0 | 16.5 | 16.5 |
